Triax GEDU 10 dB R/TV WCD 5-2400Mhz wide band Rijgdoos

TRX.306211
Triax
Triax GEDU 10 rijgdoos (wandcontactdoos)
€ 11,95
€ 11,95 € 9,88 € 11,95 € 9,88
Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting
€ 9,88 Exclusief belasting
€ 11,95 Inclusief belasting
€ 2,07 BTW
€ 9,88 Exclusief belasting
€ 2,07 BTW
€ 11,95 Inclusief belasting
Aantal
Op voorraad bij onze leverancier (levertijd 1-3 werkdagen)
5 Items

Vraag naar het product op WhatsApp
Omschrijving

Rijgdoos: 10 dB aansluitdemping

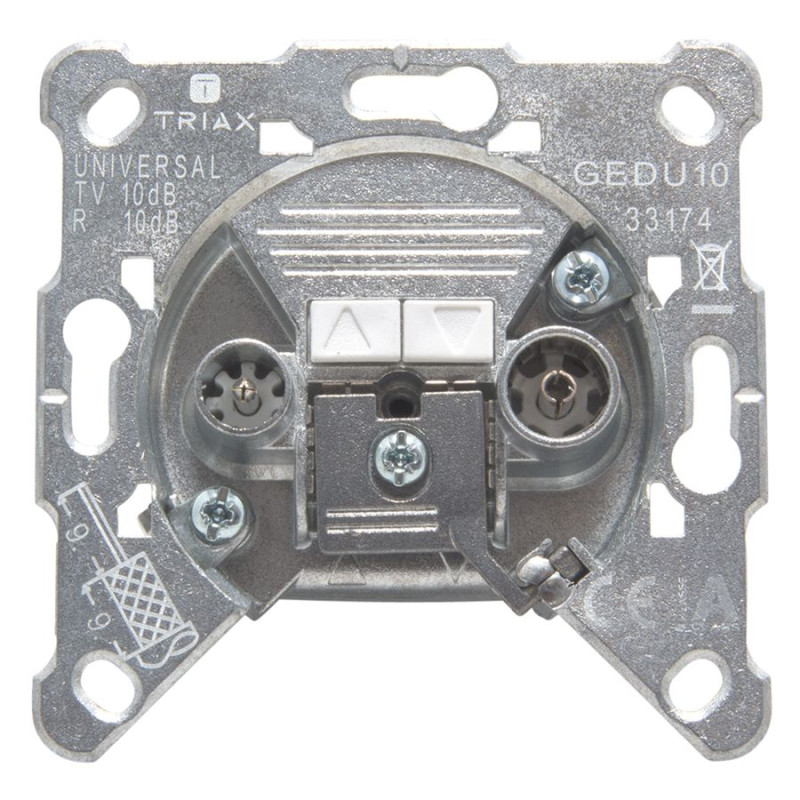

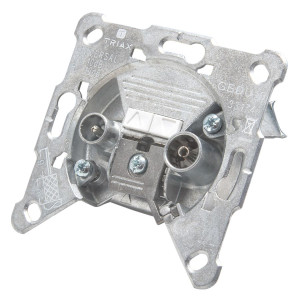

Triax GEDU 10 is een RTV/SAT rijgdoos (inbouw wandcontactdoos) met 10 dB aansluitdemping. Deze rijgdoos heeft 2 wideband sockets, met een frequentiebereik van 5-2400 MHz. Daarnaast biedt de wcd verschillende aansluitalternatieven voor eindapparatuur en doorlopend CATV-frequentiebereik met reverse channel.

Met de Triax GEDU 10 rijgdoos kunt u achteraf upgraden naar een breedband-netwerk met satellietontvangst.

Technische gegevens Triax GEDU 10 rijgdoos

  • Frequentiebereik
    • IN-OUT: 5-2150 (2400) MHz
    • RF: 5-2150 (2400) MHz
    • TV: 5-2150 (2400) MHz
  • Afscherming
    • @ 1000...2400 MHz: ≥ 55,0 dB
    • @ 300-470 MHz: ≥ 80,0 dB
    • @ 30-300 MHz: ≥ 85,0 dB
    • @ 470-1000 MHz: ≥ 75,0 dB
  • Demping
    • Doorgangsdemping IN-OUT @SAT: 3,8 dB (±0,4)
    • Doorgangsdemping IN-OUT: 2,2 dB (±0,4)
    • Aansluitdemping IN-TV: 10,0 dB
    • Aansluitdemping IN-RF: 10,0 dB
  • Isolatie
    • OUT-FM: 30,0 dB
    • OUT-TV: 30,0 dB
    • TV-FM: >36,0 dB
  • Retourverlies
    • FM: 15,0 dB
    • IN: 15,0 dB
    • OUT: 18,0 dB
    • TV: 15,0 dB
  • Impedantie: 75 Ω
  • Screening Efficiency: EN50083-2 (klasse A)
  • MTBF (mean time between failures): >1.000.000 uur
  • Connector
    • IN-OUT: Spring Clamp Termination
    • RF: IEC-female
    • TV: IEC-male
  • Kabeldiameter
    • Binnengeleider: 0,58-1,15 mm
    • F-female: 0,6-1,13 mm
    • Buitenmantel: 4,5-7,2 mm
    • Buitengeleider: 3,7-5,8 mm
  • Tensile Strength
    • Binnengeleider 1 (Ø): > 25 @ 0,75mm N/mm2
    • Binnengeleider 2 (Ø): > 50 @ 1,13mm N/mm2
  • Temperatuur
    • Transport: -40 tot +70 °C
    • Opslag: -25 tot +55 °C
    • Operationeel: -25 tot +55 °C
  • Materiaal: gegoten zink
  • Afmetingen (h x b x d): 70,6 x 70,6 x 21,9 mm
  • Gewicht: 96 gram
Productdetails
Triax
TRX.306211
5 Items
