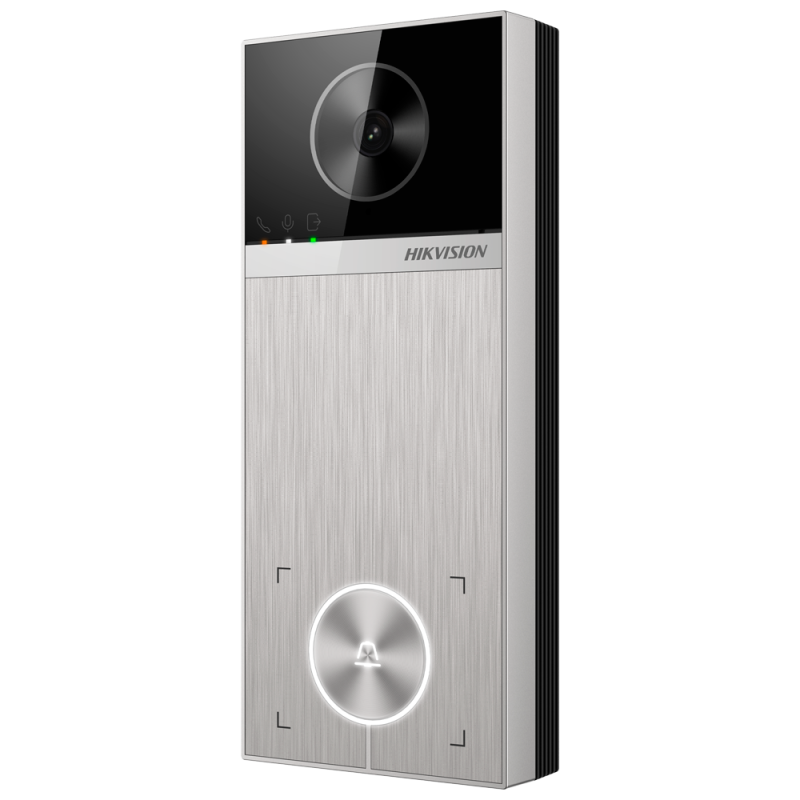

DS-KV6114-MWBE1

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.

These devices also have the ability to open the door through their relay outputs. This model has 2 relay outputs to manage up to 2 doors simultaneously, with 12 VDC output (allows direct power supply to the electronic lock without the need for an additional voltage source as the equipment is powered by standard PoE). In addition, it has integrated access control, allowing identification through Bluetooth.

IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.

Its physical keypad makes it easy to call the users.

Its exterior grade IP65 allows it to be installed outdoors.

From the software iVMS-4200 you can link boards and monitors to make and receive calls, create contacts, send informative messages to monitors or review call logs.

With the Hik-Connect mobile application, the end user can receive calls, open the door or view the panel camera live, all from any location.

• Hikvision
• IP video door entry system with 4 Mpx camera for 1 apartment
• Wide angle lens
• Built-in speaker and microphone
• IR night vision
• TCP/IP connection, WiFi (only P2P) and RS485)
• PoE IEEE802.3af
• Bluetooth (only supported with HikCentral and HikConnect Teams)
• Remote monitoring via iVMS-4200, Hik-Connect mobile app or indoor monitor software
• Calling the APP with offline monitor P2P or without monitor
• Remote door opening
• Call status LED
• Surface mounting
• Suitable for exterior IP65
• Aluminium alloy surface
