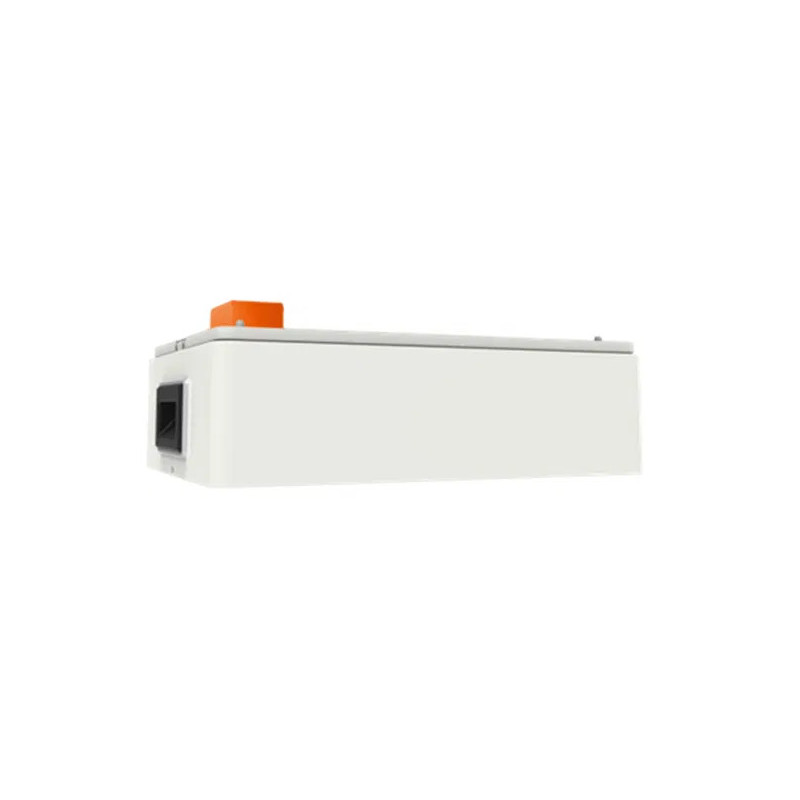

T-BAT-SYS-HV-S3.6
  • T-BAT-SYS-HV-S3.6

T-BAT-SYS-HV-S3.6

0155104
T-BAT-sys-hv-s3.6
€ 1.216,83
€ 1.216,83 € 1.005,64 € 1.216,83 € 1.005,64
Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting
€ 1.005,64 Exclusief belasting
€ 1.216,83 Inclusief belasting
€ 211,18 BTW
€ 1.005,64 Exclusief belasting
€ 211,18 BTW
€ 1.216,83 Inclusief belasting
Aantal
Op voorraad bij onze leverancier (levertijd 5-10 werkdagen)
34 Items

Vraag naar het product op WhatsApp
Omschrijving

VN 3480 Lithium-ion-batterijen, 9, (e)

Vervoer Categorie 2

De nieuwe T-BAT SYS-HV-S-hoogspanningsserie van de hoogspanning maakt een bruikbare capaciteit van maximaal 43,1 kWh per eenheid mogelijk. Dit maakt het de ideale combinatie voor de nieuwe X3-Ultra-hybriden met 15 tot 30 kW. Maar deze batterij kan ook worden bediend op eerdere, kleinere systemen. Snelle, draadloze installatie en onbeperkte expansie zijn een groot pluspunt.
Productvoordelen:
Bewezen draadloos stapelen ontwerp
Maximaal 13 batterijmodules per eenheid
Updates en diagnostiek via de omvormer
Productkenmerken Opslag:
Batterijcapaciteit (bruikbaar): 3,25 kWh
Tijdvenster extensie: onbeperkt
Structuur per eenheid: 2 tot 13 batterijmodules
Celchemie: LFP
Nominale spanning: 51.2v
Beschermingsklasse: IP65
Afmetingen: 152 x 510 x 365 mm (HXWXD)
Gewicht: 33,5 kg

Belangrijke technische gegevens

Gevaarlijke goederenvervoer categorie 2
Gevaarlijke goederen Beschrijving Lithium-ionbatterijen
Gewicht Gewicht (NET) (NET) (kg) 22.400
Tunnelbeperking (E)
Classificatiecode M4
Gevaarlijke goederenklasse 9
Gevaarlijke goederenverpakkingstype 4g
Un Nee 3480
