HELIVOR HV 22.4
  • HELIVOR HV 22.4

HELIVOR HV 22.4

0162670
Kostal
Helivor HV 22.4
€ 9.994,43
€ 9.994,43 € 8.259,86 € 9.994,43 € 8.259,86
Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting
€ 8.259,86 Exclusief belasting
€ 9.994,43 Inclusief belasting
€ 1.734,57 BTW
€ 8.259,86 Exclusief belasting
€ 1.734,57 BTW
€ 9.994,43 Inclusief belasting
Aantal
Niet op voorraad (informeer naar de levertijd)

Vraag naar het product op WhatsApp
Omschrijving

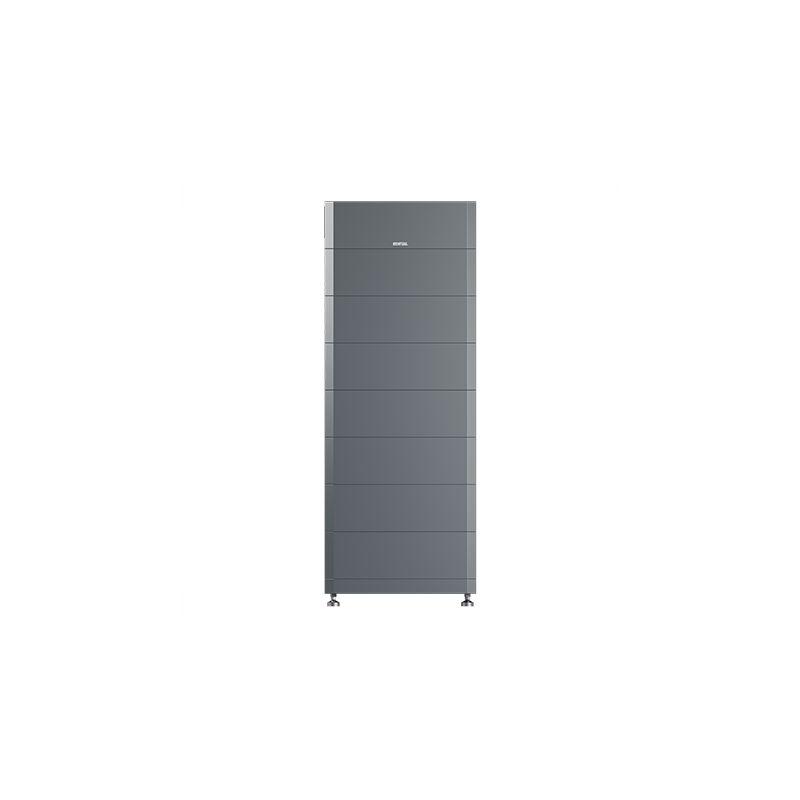

Productinformatie "Helivor HV 22.4"

De installatie van het nieuwe Helivor-hoogspanningssysteem van Kostal is meer dan soepel dankzij het schroefloze en draadloze stackontwerp. Met slechts minimale ruimtevereisten kunnen maximaal 9 opslagmodules met 28,8 kWh bruikbare capaciteit per eenheid worden geïmplementeerd. Het maximum is 8 torens die parallel zijn verbonden met een totaal van 230,4 kWh. In combinatie met de Kostal Plenteicore G3, varieert het toepassingsgebied van residentiële tot kleine commerciële systemen.

Productvoordelen:
? Schroefvrije en draadloze stapelontwerp
? Totale capaciteit van maximaal 230,4 kWh mogelijk
? Uitbreidbaar op elk gewenst moment
? Gecertificeerde batterijveiligheid volgens VDE 2510-50

Productkenmerken Opslag:
? Bruikbare batterijcapaciteit: 22,4 kWh
? Type opslag: Hoogspanning
? Nominale spanning: 448 v
? Tijdvenster extensie: onbeperkt
? Aantal opslagmodules in één eenheid: 2. 9 opslagmodules
? Aantal eenheden parallel: maximaal 8 torens
? Celchemie: LFP
? Communicatie: Can 2.0a, RS485, Ethernet, WiFi
? Koeling: passief
? Beschermingsklasse: IP65
? Afmetingen: 1620 x 450 x 296 mm (HXWXD)
? Gewicht: BMS + Base: 30,0 kg, 7 x opslageenheden, 36.0 kg elk

Leveringsomvang:
? 1 x Kostal Helivor HV batterijbeheersysteem (item 162408)
? 7 x Kostal Helivor HV 3.2 Opslagmodule (item 162409)

Wichtige Technische Daten

Gevaarlijke goederenvervoer categorie 2
Gevaarlijke goederen Beschrijving Lithium-ionbatterijen
Tunnelbeperking (E)
Gewicht Gewicht (NET) (NET) (kg) 154.000
Classificatiecode M4
Gevaarlijke goederenklasse 9
Gevaarlijke goederenverpakkingstype 4g
Un Nee 3480
Productdetails
Kostal
0162670
