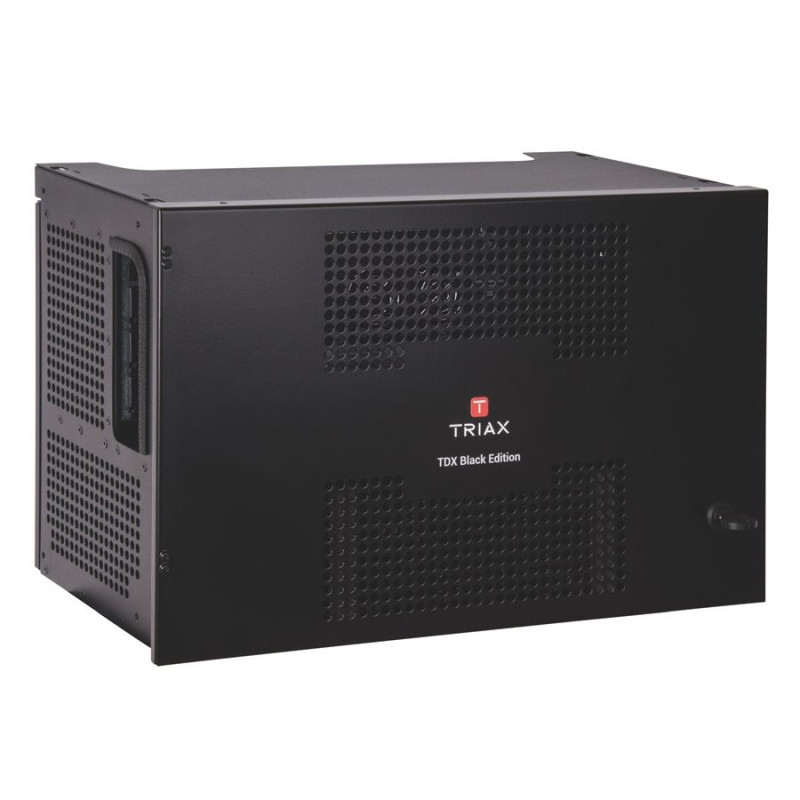

Triax TDX Black Edition Main Unit
  • Triax TDX Black Edition Main Unit
  • Triax TDX Black Edition Main Unit
  • Triax TDX Black Edition Main Unit
  • Triax TDX Black Edition Main Unit

Triax TDX Black Edition Main Unit

TRX.492091
Triax
Behuizing Triax TDX headend
€ 2.249,00
€ 2.249,00 € 1.858,68 € 2.249,00 € 1.858,68
Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting
€ 1.858,68 Exclusief belasting
€ 2.249,00 Inclusief belasting
€ 390,32 BTW
€ 1.858,68 Exclusief belasting
€ 390,32 BTW
€ 2.249,00 Inclusief belasting
Aantal
Laatste items in voorraad
1 Item

Vraag naar het product op WhatsApp
Omschrijving

Basis unit TDX

De Triax TDX basis unit black edition is de basis voor een betrouwbare tv-oplossing in de hospitality sector. De TDX basis unit biedt ruimte aan maximaal 16 ingangsmodules en 6 Quad-uitgangsmodules. De nieuwe HTML5-gebruikersinterface maakt installatie zeer eenvoudig. Verder bedient en bewaakt u het systeem op afstand via SNMP.

Beveiligde HD-distributie

De TDX main unit ondersteunt DRM-integratie voor beveiligde distributie van HD-services. Ook kan de distributie eenvoudig worden afgehandeld met de Simulcrypt-interface. Met het PID-beheer hoeft u tv's niet opnieuw af te stemmen na serviceveranderingen.

Meerdere TDX-units combineren

U kunt tot 3 Triax TDX headends met elkaar combineren tot één systeem van ingangs- en uitgangssignalen. Hiermee heeft u tot 72 PAL-, COFDM- of QAM-kanalen tot uw beschikking (of 480 IP-services).

Montage tegen de muur of in een 19" rack

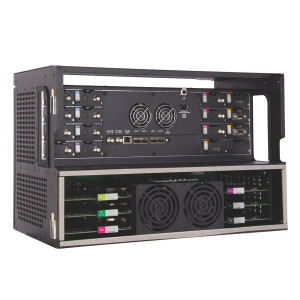

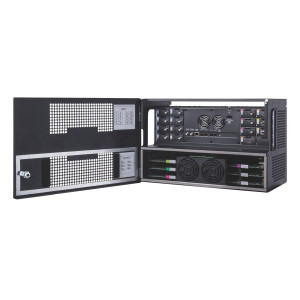

U plaatst de compacte unit eenvoudig tegen een muur of in een 19-inch rack. Alle ingangen, uitgangen en kabels zijn bereikbaar vanaf de voorkant van de behuizing. Onderhoud of reparaties zijn hierdoor een stuk sneller gedaan.

Technische specificaties Triax TDX main unit (black edition)

  • Extern testpunt: F-connector (female)
  • Max. LNB control: 4 x 305 mA
  • Max. uitgangsniveau @ 60 dB IMD (24 gecombineerde kanalen): 103 dBµV
  • Testpunt: -20 dB
  • SNMP versie: V1 en V2c
  • Frequentiebereik (RF OUT): 47-862 MHz
  • Retourverlies (RF OUT): > 14 dB @ 47 MHz (-1,5 dB/octave; min. 10 dB)
  • Impedantie: 75 Ω
  • AC voedingsspanning: 190-260 (50/60 Hz VAC)
  • Gemiddeld energieverbruik: 280 W (min. 20 W)
  • Bedrijfstemperatuur: -10 tot +50 °C
  • Opslagtemperatuur: -20 tot +70 °C
  • Luchtvochtigheid (in bedrijf): 20 tot 80 %
  • Luchtvochtigheid (opslag): 10 tot 90 %
  • Externe RF out: F-connector (female)
  • PC interface: RJ 45
  • Afmetingen (l x b x d): 440 x 290 x 240 mm
  • Gewicht: 10,77 kg
Productdetails
Triax
TRX.492091
1 Item
