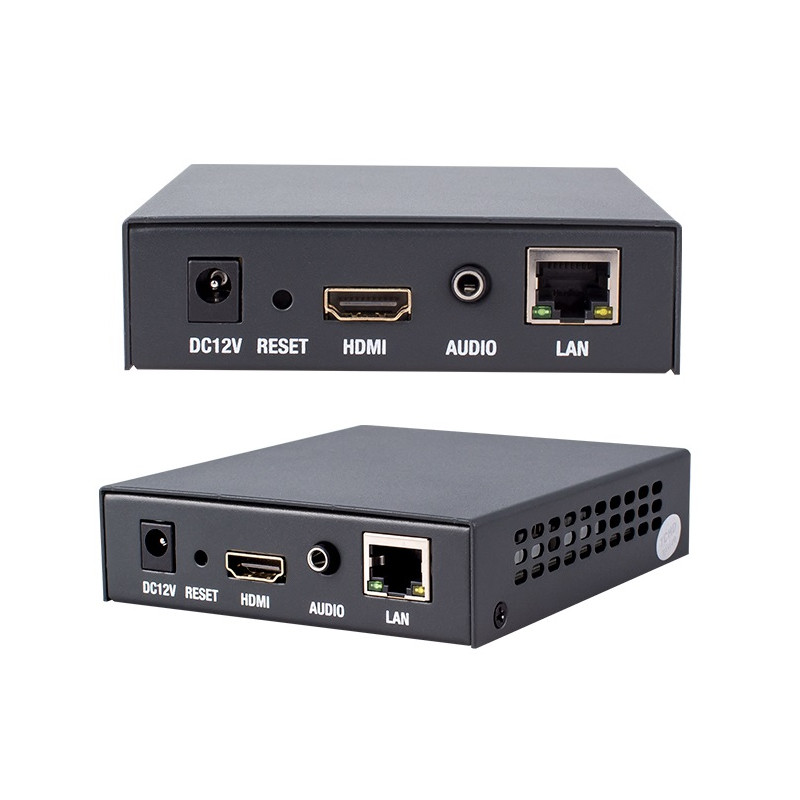

QM DE-2011 1-Channel HD Encoder 60FPS H264
  • QM DE-2011 1-Channel HD Encoder 60FPS H264

QM DE-2011 1-Channel HD Encoder 60FPS H264

ART.606301
QM
€ 395,00
€ 395,00 € 326,45 € 395,00 € 326,45
Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting
€ 326,45 Exclusief belasting
€ 395,00 Inclusief belasting
€ 68,55 BTW
€ 326,45 Exclusief belasting
€ 68,55 BTW
€ 395,00 Inclusief belasting
Aantal
Out of stock (please inquire about delivery time)

Vraag naar het product op WhatsApp
Omschrijving

Deze HD-video-encoder vereist minder bandbreedte om een hoogwaardig videosignaal te verkrijgen. Hij maakt gebruik van het H.264-coderingsformaat en kan tegelijkertijd video en audio coderen. Deze video encoder heeft 60 FPS ipv 30 FPS

Specifications

 VIDEO SPECIFICATIONS

  • Video compression : H.264/AVC High Profile Level 4.0
  • Video inputs: HDMI (support HDCP protocol)
  • Resolution :

Main stream:

1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480,

720x404, 704x576, 640x480, 640x360, auto

Sub-stream 1 :

1280x720, 800X450, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480 ,

640x300, 352X288, 320X240, 320X1 80 auto

Sub-stream 2:

NTSC: 720X480, 640X480 PAL: 720X576, 704X576

Sub-stream 3:

NTSC: 320X240 PAL: 352X288

  • B i t-rate: 16kbps~12Mbps, CBR/VBR
    • Video pre-processing : Noi sereduction , Sharpen , Filtering

AUDIO SPECIFICATIONS

    • Audio compression : AAC, MP3
    • Sampling rate: Adaptive, selectable of re-sample
    • Sampling accuracy: 24-bit
    • Bit Rate: 48000, 64000, 96000, 128000, 160000, 192000, 256000
      • Re-sample: 32000, 44100

OU TPU TS

IP output

  • Transport protocol : TS over IP output, RTSP /HTTP/UDP /HLS or RTMP protocol
  • For HDMI to IP ou tput, 4*TS over IP stream out(H TTP/RTSP/UDP /H LS or RTMP protocol ) 2

Channels with higher resolution (up to 1080P) for large screen application

Productdetails
QM
ART.606301
