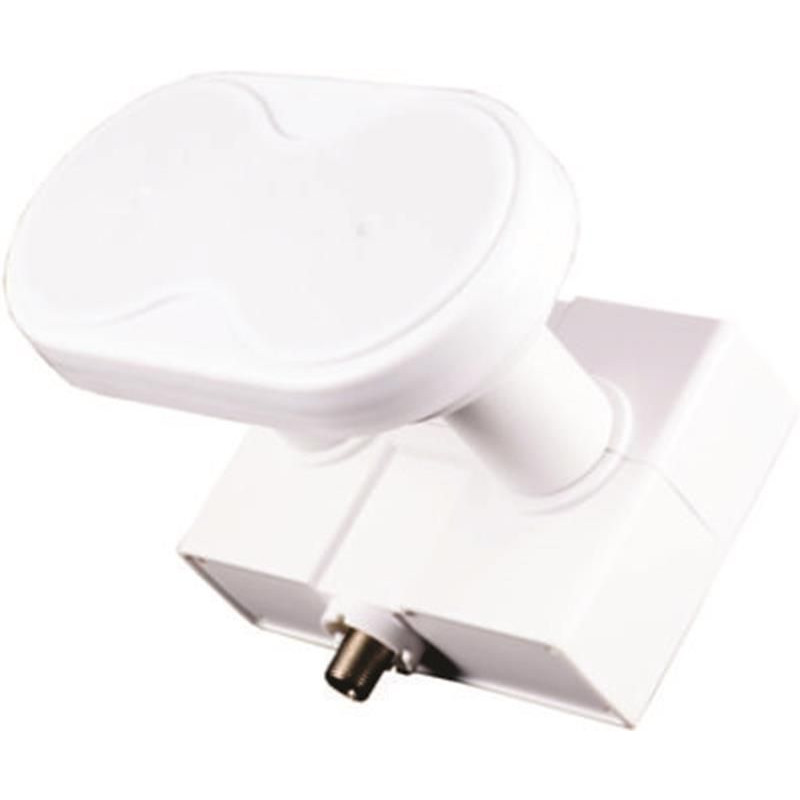

Relook RE-MDS43W DUO Single LNB 19+23.5 tbv 80 cm 4.3gr
  • Relook RE-MDS43W DUO Single LNB 19+23.5 tbv 80 cm 4.3gr
  • Relook RE-MDS43W DUO Single LNB 19+23.5 tbv 80 cm 4.3gr

Relook RE-MDS43W DUO Single LNB 19+23.5 tbv 80 cm 4.3gr

ART.116550
Relook
Relook RE-MDS43 DUO Single lnb 19+23.5 tbv 80 cm
€ 21,95
€ 21,95 € 18,14 € 21,95 € 18,14
Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting
€ 18,14 Exclusief belasting
€ 21,95 Inclusief belasting
€ 3,81 BTW
€ 18,14 Exclusief belasting
€ 3,81 BTW
€ 21,95 Inclusief belasting
Aantal
Op voorraad bij onze leverancier (levertijd 1-3 werkdagen)
5 Items

Vraag naar het product op WhatsApp
Omschrijving

Relook RE-MDS43 DUO Single lnb 19+23.5 tbv 80 cm

DUO LNB 4.3° met een enkele uitgang voor een 80 cm schotel.

Feeddikte 23mm, adapterring voor 40 mm lnb houder bijgevoed.



Specificaties:

Input Frequency Range

Low Band : 10.7 ~ 11.7 GHz

High Band : 11.7 ~ 12.75 GHz

Output Frequency Range

Low Band : 950 ~ 1950 MHz

High Band : 1100 ~ 2150 MHz

L.O. Frequency

Low Band : 9.75 GHz

High Band : 10.60 GHz

L.O. Frequency Stability

+/-1 MHz (Max)@ Room Temp.

Local Oscillator Frequency Phase Noise

-60 dBc/Hz @ 1KHz (Max.)

-85 dBc/Hz @ 10KHz (Max.)

-105 dBc/Hz @ 100KHz (Max.)

Noise Figure

0.2 dB (Typ.)

Conversion Gain

56 ~ 60 dB

Gain Flatness 26 MHz Bandwidth

+/-0.5dB (Typ.)

Polarity Switching Voltage

VERTICAL: 11.0 ~ 14.0 Vdc

HORIZONTAL: 16.0 ~ 20.0 Vdc

DiSEqC 1.0

Band Switching

Low Band: 0 kHz

High Band: 22 kHz (+/- 4 kHz)

DiSEqC 1.0

Cross-Pol. Isolation

25 dB (Typ.)

Image Rejection

40 dB (Min.)

Current Consumption

110 mA (Typ.)

Output Connector Type

75 OHMS F-Female

Output Spurious

<-60dBm

Operating Temperature Range

-40°C ~ +65°C

Feed Length

42 mm
Productdetails
Relook
ART.116550
5 Items
