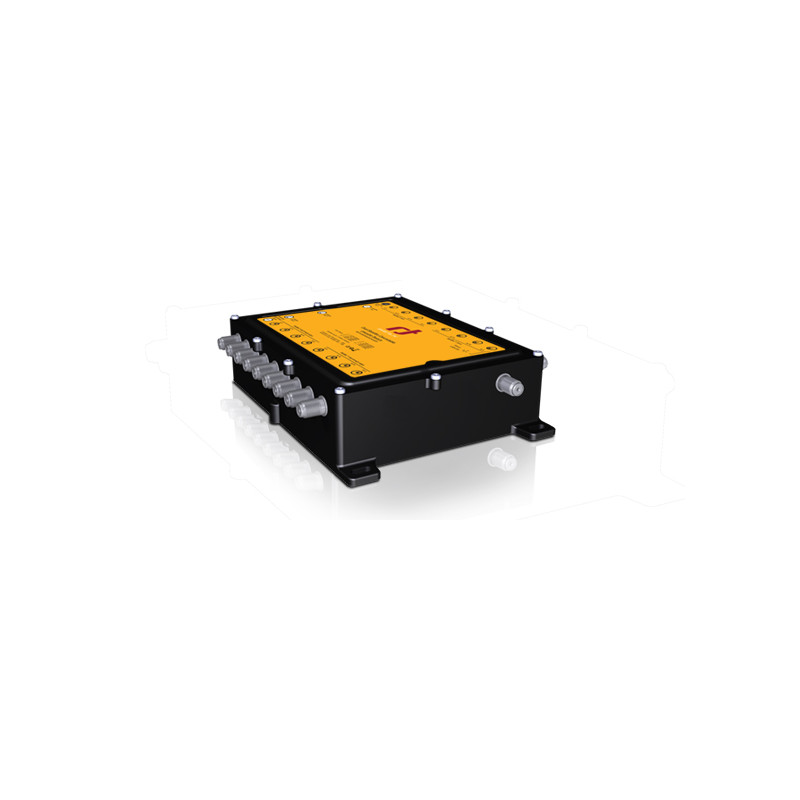

Inverto IDLP-USS200-CUO10-8P Dual Unicable Casc Switch opop
  • Inverto IDLP-USS200-CUO10-8P Dual Unicable Casc Switch opop

Inverto IDLP-USS200-CUO10-8P Dual Unicable Casc Switch opop

ART.210510
Inverto
Inverto IDLP Dual Unicable Cascade Switch
€ 99,95
€ 99,95 € 82,60 € 99,95 € 82,60
Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting
€ 82,60 Exclusief belasting
€ 99,95 Inclusief belasting
€ 17,35 BTW
€ 82,60 Exclusief belasting
€ 17,35 BTW
€ 99,95 Inclusief belasting
Aantal
Laatste items in voorraad
2 Items

Vraag naar het product op WhatsApp
Omschrijving

Inverto IDLP Dual Unicable Cascade Switch

The IDLP-USS2OO-CUO1O-8PP is the smallest form factor Unicable switch. It enables you to receive two satellites and installations with maximum eight Set Top Boxes over a single cable. In addition to its eight User Bands Unicable output, the multiswitch also features two legacy outputs and a terrestrial antenna input. The multiswitch is powered by an external power supply.

The cascadable multiswitch distributes eight satellite IF bands (L/V, L/H, H/V and H/H for two satellites) and Terrestrial VHF/UHF signals. The Unicable and the legacy outputs are combined with the terrestrial signal. The terrestrial input is not amplified. The communication protocol between the multiswitch and the Set Top Boxes connected through the Unicable port is based on the EN 50494 standard for single cable distribution.

For indoor and outdoor installations.

Inputs 4 x Satellite IF Inputs from Quattro LNB
  1 x UHF / VHF Input from Terrestrial Antenna
Outputs  4 x Loopthrough Satellite IF Output
  1 x Loopthrough Terrestrial Output
  1x Legacy Output with combined Terrestrial Signal
  1x Unicable Output for 8 Receiver Max. with combined Terrestrial Signal
Control Protocol  DiSEqC Extension Commands per EN50494
Input Frequency Ranges: .
Satellite  950 ~ 2150 MHz
Terrestrial   47 ~ 862 MHz
Loop-Through Loss .
Satellite  - 3 dB Max.
Terrestrial  - 3 dB Max.
Conversion Gain:
Unicable Output + 10  ~  + 20 dB
Legacy Universal Output - 1 ~  + 7 dB
Output Signal Level (AGC controlled)  93 dBμV
Input Power Range - 45 ~  - 15 dBm
User Band (Channel) Bandwidth 40 MHz
User Band (Channel) Gain Ripple 3 dB Max.
User Band Frequencies (Channels) CH 0 :  1076.06 MHz
  CH 1 :  1178.12 MHz
  CH 2 :  1280.18 MHz
  CH 3 :  1382.24 MHz
  CH 4 :  1484.30 MHz
  CH 5 :  1586.36 MHz
  CH 6 :   1688.42 MHz
  CH 7 :   1790.48 MHz
RF Isolation: .
Satellite/Satellite IF 28 dB  Min.
Satellite/Terrestrial 35 db Min.
Satellite Channel/Channel (User Bands) 30 dB Min.
LO Phase Noise @1 KHz: - 92 Max. dBc/ Hz
  @10 KHz: - 101 Max. dBc/ Hz
  @100 KHz: - 99 Max. dBc/ Hz
  @1 MHz: - 103 Max. dBc/ Hz
  @10 MHz: - 127 Max. dBc/ Hz
Integrated Phase Noise 1.5 Degrees Max.
Input / Output VSWR 2.5 : 1
Input / Output Impedance 75 Ω
Input / Output Connector F-Type
LNB Input LNB 0 =>13 V /0 K , LNB 1 =>13 V /22 K  (V)
  LNB 2 =>18 V /0 K , LNB 3 =>18 V /22 K  (H)
LNB Current Consumption 400 mA @ 13 ~ 18 V
DC Current Consumption 320 mA Max. @ 20 V (F-Type)
Operating Temperature - 34 °C  ~   + 60 °C
Dimensions 204 x 139 x 19 (H x W x D) mm
