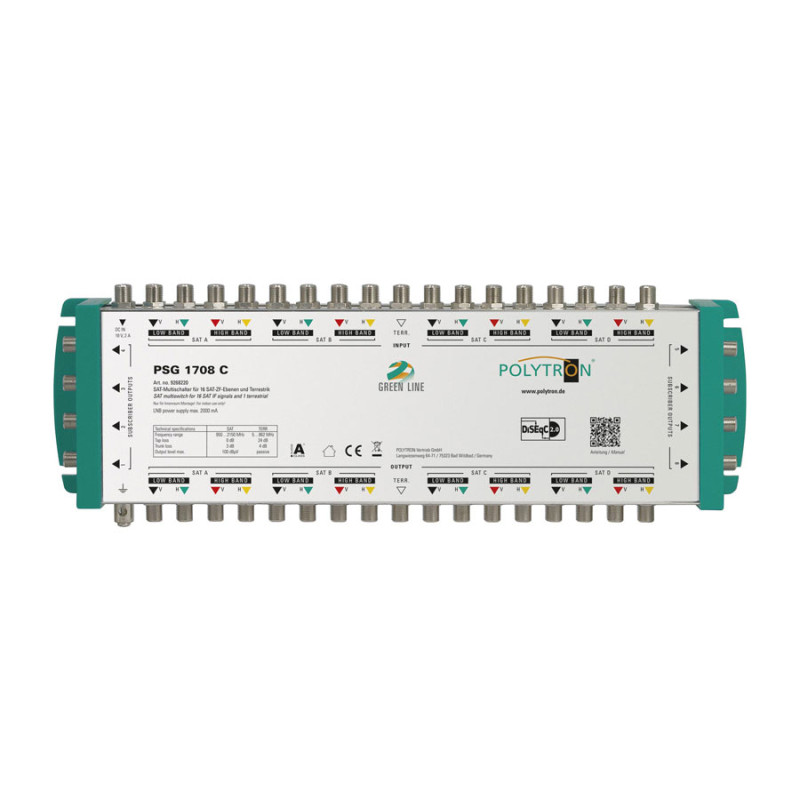

Polytron PSG 1708 C Multiswitch cascade & eind 17 in 8 uit
  • Polytron PSG 1708 C Multiswitch cascade & eind 17 in 8 uit

Polytron PSG 1708 C Multiswitch cascade & eind 17 in 8 uit

POL.9268220
Polytron
Polytron Polyswitch PSG1708 C Greenline 17 in 8 uit
€ 279,00
€ 279,00 € 230,58 € 279,00 € 230,58
Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting
€ 230,58 Exclusief belasting
€ 279,00 Inclusief belasting
€ 48,42 BTW
€ 230,58 Exclusief belasting
€ 48,42 BTW
€ 279,00 Inclusief belasting
Aantal
Laatste items in voorraad
1 Item

Vraag naar het product op WhatsApp
Omschrijving

Polytron Polyswitch PSG1708 C Greenline 17 in 8 uit

Cascadable multiswitches for distribution of 16 SAT IF polarisations and terrestrial signals.

  • 16 SAT and 1 terrestrial TV input
  • energy efficient
  • built-in amplifier to compensate cable loss
  • switching commands 14/18 V, 0/22 kHz and
  • DISEqC 2.0
  • high return loss
  • high isolation between the polarisations


Typ / Type

PSG 1708 C

PSG 1712 C

PSG 1716 C

Artikel-Nr. / Article no.

9268220

9268230

9268240

Eingänge / Inputs

16 SAT, 1 TERR

Ausgänge / Outputs

8

12

16

Durchgangsdämpfung / Through loss TERR 40-862 MHz

4 dB

4 dB

4 dB

Durchgangsdämpfung / Through loss
SAT 950-2150 MHz

5 dB

5 dB

5 dB

Abzweigdämpfung / Tap loss
Terr. 40-862 MHz

24 dB

24 dB

27 dB

Abzweigdämpfung / Tap loss
SAT 950-2150 MHz

3 dB

Schaltkriterien / Switching commands

14 V / 18 V / 0/22 kHz / DiSEqC 2.0

Entkopplung / Isolation
Horz. / Vert.

> 28 dB

Entkopplung / Isolation
SAT / Ter.

> 30 dB

Eingangspegel max. / Input level max.

SAT: 95 dBµV ; TERR: 95 dBµV

Stromaufnahme je Receiver / Power consumption per receiver

50 mA

LNB-Stromversorgung / LNB supply

max. 2400 mA

Betriebstemperatur / Operation temperature

-20...+50 °C

Maße (B x H x T) / Dimensions (W x H x D) [mm]

370 x 128 x 54

370 x 209 x 54

370 x 209 x 54


Productdetails
Polytron
POL.9268220
1 Item
