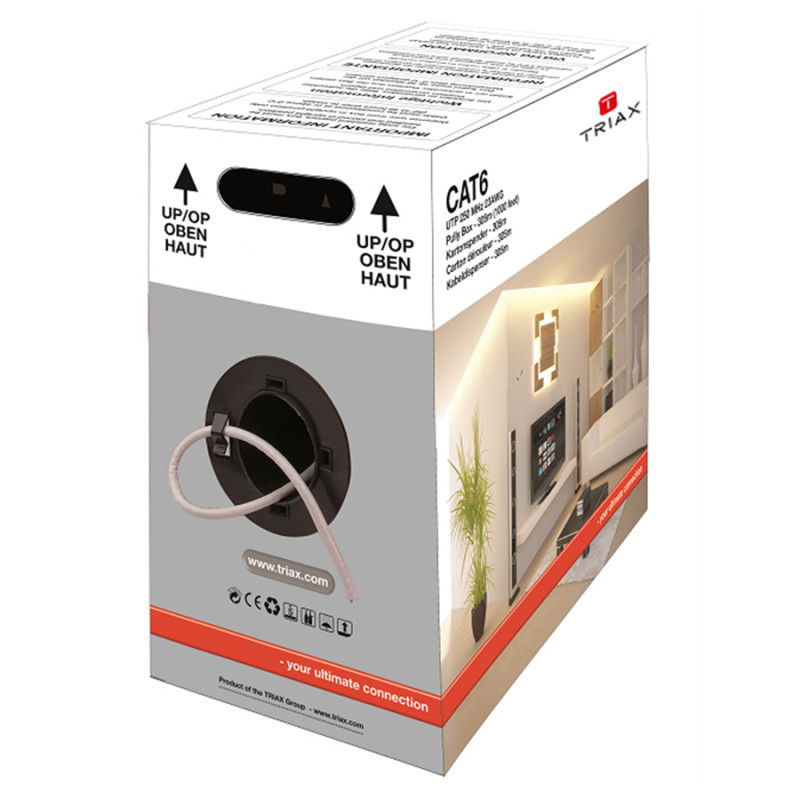

Triax CAT6 U/UTP LSZH 4X2XAWG23 250MHz wit trekdoos 305m
  • Triax CAT6 U/UTP LSZH 4X2XAWG23 250MHz wit trekdoos 305m

Triax CAT6 U/UTP LSZH 4X2XAWG23 250MHz wit trekdoos 305m

TRX.155006
Triax
Triax LSZH CAT6 kabel in trekdoos 305 m (wit)
€ 299,00
€ 299,00 € 247,11 € 299,00 € 247,11
Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting
€ 247,11 Exclusief belasting
€ 299,00 Inclusief belasting
€ 51,89 BTW
€ 247,11 Exclusief belasting
€ 51,89 BTW
€ 299,00 Inclusief belasting
Aantal
Op voorraad bij onze leverancier (levertijd 1-3 werkdagen)
5 Items

Vraag naar het product op WhatsApp
Omschrijving

Witte LSZH CAT6 U/UTP kabel in trekdoos (305 m)

Triax CAT6 LSZH is een witte UTP-kabel in trekdoos (305 meter). Deze CAT6-kabel heeft brandklasse Dca en is gehuld in een LSZH-isolatie (Low Smoke Zero Halogen).

De Triax CAT6 ethernetkabel haalt een bandbreedte tot 250 MHz (1000 BASE-T Ethernet) en een snelheid van 1000 mbps (korte lengtes zelfs tot 10 Gbit).

Technische specificaties Triax CAT6 kabel LSZH wit (trekdoos)

  • Type kabel: CAT6 LSZH kabel
  • Brandklasse: Dca (Subklasse: s2,d2,a1)
  • DoP nummer: TR0084
  • Notified Body: 2661
  • Toepassing: indoor
  • Lengte: 305 m
  • Kleur: wit
  • Minimale buigradius (single/repeated): 8xD mm
  • Binnengeleider
    • Materiaal: Solid Bare Cu
    • Dikte: 0,53 mm (±0,005)
  • Flat filler
    • Materiaal: PE Spline
  • Isolatie
    • Materiaal: Solid PE
    • Dikte: 1,00 mm (±0,05)
  • Buitenmantel
    • Materiaal: LSZH
    • Dikte: 0,5 mm
    • Diameter: 6,0 mm (±0,50)
  • Kleurcode
    • Paar 1: Blauw/Wit-blauw
    • Paar 2: Oranje/Wit-oranje
    • Paar 3: Groen/Wit-groen
    • Paar 4: Bruin/Wit-bruin
  • Next
    • @ 1 MHz: 74,30 dB
    • @ 4 MHz: 65,30 dB
    • @ 10 MHz: 59,30 dB
    • @ 16 MHz: 56,20 dB
    • @ 25 MHz: 53,30 dB
    • @ 31,25 MHz: 51,90 dB
    • @ 100 MHz: 44,30 dB
    • @ 200 MHz: 39,80 dB
    • @ 250 MHz: 38,30 dB
  • Demping (20°C/100mtr)
    • @ 1 MHz: 2,00 dB
    • @ 4 MHz: 3,80 dB
    • @ 10 MHz: 6,00 dB
    • @ 16 MHz: 7,60 dB
    • @ 25 MHz: 9,50 dB
    • @ 31,25 MHz: 10,70 dB
    • @ 100 MHz: 19,80 dB
    • @ 200 MHz: 29,00 dB
    • @ 250 MHz: 32,80 dB
  • Retourverlies
    • @ 1 MHz: 20,00 dB
    • @ 4 MHz: 23,00 dB
    • @ 10 MHz: 25,00 dB
    • @ 16 MHz: 25,00 dB
    • @ 25 MHz: 24,30 dB
    • @ 31,25 MHz: 23,60 dB
    • @ 100 MHz: 20,10 dB
    • @ 200 MHz: 18,00 dB
    • @ 250 MHz: 17,30 dB
  • Impedantie
    • 1-100 MHz: 100 Ω (±15)
    • 100-250 MHz: 100 Ω (±20)
  • Conductor DC resistance @ 20° C: < 95 Ohm/km
  • Mutual capacity @ 1kHz: < 1500 pF/m
  • Afmeting (h x b x d): 40 x 21 x 40,5 cm
  • Gewicht: 11,500 kg
Productdetails
Triax
TRX.155006
5 Items
