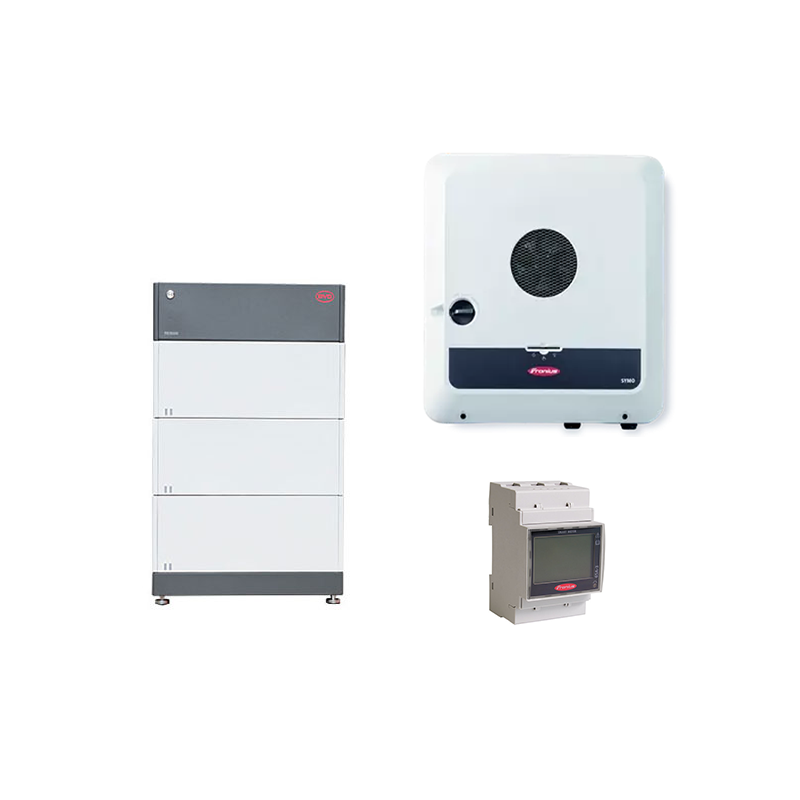

BYD HVS 7.7 + Symo GEN24 12.0 SC Plus

Name: BYD HVS 7.7 + Symo GEN24 12.0 SC Plus
Brand: BYD + Fronius
SKU: 0160003
Price: 8080.39 EUR
Availability: InStock

Referentie 0160003

Merk BYD + Fronius

BYD HVS 7.7 + SYMO GEN24 12.0 SC PLUS

€ 8.080,39

€ 8.080,39 € 6.678,01 € 8.080,39 € 6.678,01

Inclusief belasting Inclusief belasting Exclusief belasting Inclusief belasting Exclusief belasting

€ 6.678,01 Exclusief belasting

€ 8.080,39 Inclusief belasting

€ 1.402,38 BTW

€ 6.678,01 Exclusief belasting

€ 1.402,38 BTW

€ 8.080,39 Inclusief belasting

Aantal

Laatste items in voorraad

Op voorraad: 1 Item

Vraag naar het product op WhatsApp

Omschrijving
Custom Global tab

Omschrijving

The Smart Meter included in the set does not have an interface for using dynamic electricity tariffs. If this function is required, please use the Fronius Smart Meter IP (article 0154145).

The RJ45 termination plug for the data bus included in the scope of delivery must be finished on site. To do this, insert a wire bridge between pins 1 + 6 (viewed from above on the flat side of the plug with the pin contact surfaces, cable entry at the bottom, pins ascending from left to right) and crimp it. No actual resistor is required.

The Symo GEN24 12.0 SC is the latest addition to the GEN24 family from Fronius. Like its smaller brothers, the SC is available as a fully-fledged hybrid or battery-ready. The "Plus" makes the difference here. You decide for yourself whether and when you want to use this function using an activation code. The smart PV-Point emergency power connection with a maximum output power of 3 kW is active in every version and can now also be used in continuous operation with a small retrofit. All other functions and interfaces remain as good as ever. In this combination with a veteran of the PV storage world - the BYD HVS system. Proven, reliable and can be extended indefinitely. Now even faster installation thanks to the new BCU 2.0.

Product advantages:

? Proven and powerful hybrid system

? Emergency power via Fronius PV-Point, optionally also for continuous use

? Backup power possible with Enwitec changeover unit

? Storage can be extended indefinitely

? Certified battery safety in accordance with VDE 2510-50

Product features System:

? AC power: 12.0 kW

? AC connection: 400V, 3-phase

? Number of MPPT: 2

? DC input current: MPPT 1 - 28.0 A, MPPT 2 - 14.0 A

? Communication: WLAN, Ethernet, 2 x RS485

? Interfaces: 6 x DI (FRE), 6 x DO

? Protection class: IP66

? Cooling: active

? Dimensions: 595 x 529 x 180 mm (H x W x D)

? Weight: 22.8 kg

Product features Storage:

? Battery capacity (usable): 7.68 kWh

? Extension time window: unlimited

? Cell chemistry: LFP

? Nominal voltage: 307.2 V

? COM connectors: RJ45

? BAT connectors: MC4

? Protection class: IP55

? Dimensions: 995 x 585 x 298 mm (HxWxD)

? Weight: BMS 15.0 kg, 3 x storage units 38.0 kg each

Conclusion:

12 kW power class with all GEN24 virtues. Plus a veteran of the PV storage world - the BYD HVS system.

Scope of delivery:

? 1 x Fronius Symo GEN24 12.0 SC Plus Hybrid inverter (article 0156755)

? 1 x Fronius Smart Meter TS 65A-3 (article 0151650)

? 1 x BYD BCU HV BCU2.0 (article 0159471)

? 3 x BYD HVS storage module (article 0131385)

Key technical data

Productdetails

Referentie 0160003

Op voorraad 1 Item

You can customize it or disable in the backoffice: Modules / Module manager / Product Extra Tabs.

Sample bullet list

Regular fit has a straight cut with room to move naturally
48% polyester / 48% acrylic / 4% wool
Faux leather sleeves
Full zip
Padded

Sample numbered list

Wipe clean with a damp cloth
Color may rub off onto other materials
Do not store in wet conditions

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.


Dangerous goods transportation category	2
Dangerous goods Weight (net) (kg)	155.800
Dangerous goods description	LITHIUM ION BATTERIES
Tunnel restriction code	(AND)
Classification code	M4
Dangerous goods class	9
Dangerous goods packaging type	4G
A No.	3480
