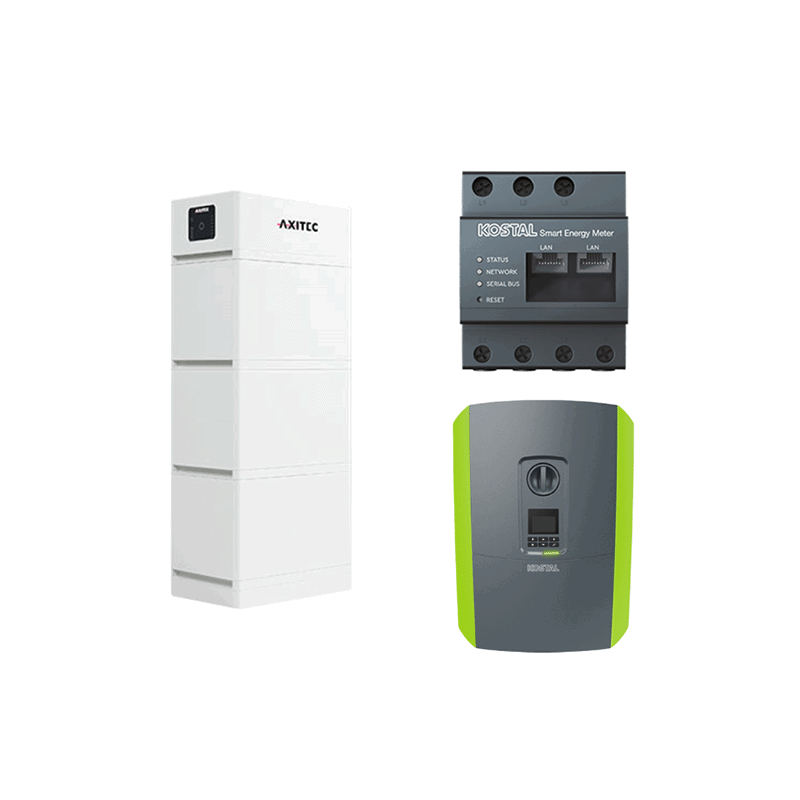

AXIstorage Li SV2 10.1 + Plenticore Plus 8.5 G2
AXISTORAGE LI SV2 10.1 + PENTICORE PLUS 8.5 G2
Omschrijving
The PLENTICOINs required for power and function activation must be ordered separately.
Two old hands meet - instead of a fairy tale, we start with a top storage combination: the Kostal Plenticore Plus G2 and Axitex AXIstorage Li SV2. Proven inverter technology with fresh features meets compact and powerful storage. Quickly and safely installed with certification according to VDE 2510-50.
Product benefits:
? Powerful storage package
? Easy network connection to each other as daisy-chain
? Fast and secure storage installation and expansion
? Certified safety according to VDE 2510-50
Product features System:
? AC power: 8.5 kW
? Number of MPPT: 2 + 1 (PV / Bat)
? DC input current: 13 A per MPPT
? AC connection: 3-phase
? Communication: Wifi, 2 x LAN, RS485, 4 x Dig-In (FRE), 4 x Dig-Out
? Protection class: IP65
? Cooling: active
? Weight: 21.6 kg
Product features Storage:
? Battery capacity (usable): 10.1 kWh
? Time window expansion: 5 years
? Cell chemistry: LFP
? Rated voltage: 288.0 V
? Protection class: IP55
? Dimensions: 1118 x 450 x 296 mm (H x W x D)
? Weight: BMS 12.0 kg, 3 x storage 35.0 kg each
Conclusion:
This combination of 2 old hands from the inverter and storage sector can be installed with the best conscience.
Activation via PLENTICOINs:
General (all G1/G2 Plenticore plus series, MP plus series, Enector Wallbox):
Activation of the storage function: 1 PLENTICOIN
Activation of the Wallbox Smart Features: 2 PLENTICOINS
Plenticore G3 series:
Increase by one power class (1 level) within the S / M / L device series: 1 PLENTICOIN
Increase to maximum power (2 levels) within the S / M / L device series: 1+1 PLENTICOIN
Activation of the battery function: 3 PLENTICOINS
Scope of delivery:
? 1 x Kostal Plenticore Plus 8.5 G2 hybrid inverter (item 0152314)
? 1 x AXIstorage Li SV2 BMS (item 0152359)
? 3 x AXIstorage Li SV2 Energy-Pack (item 0150761)
? 1 x Kostal KSEM G2 Smart Meter (item 0151118)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Dangerous goods Weight (net) (kg) | 105.000 |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
