T-BAT HS 37.5 + X3-ULTRA-25K

Name: T-BAT HS 37.5 + X3-ULTRA-25K
Brand: Combishop
SKU: 0158325
Price: 19446.1 EUR
Availability: InStock

Reference 0158325

€19,446.10

€19,446.10 €16,071.16 €19,446.10 €16,071.16

VAT included VAT included VAT excluded VAT included VAT excluded

€16,071.16 VAT excluded

€19,446.10 VAT included

€3,374.94 Tax

€16,071.16 VAT excluded

€3,374.94 Tax

€19,446.10 VAT included

Quantity

In stock: 10 Items

Ask about the product on WhatsApp

Description
Custom Global tab

Description

For sets with > 9 storage modules, the second battery connection of the hybrid inverter must be used.

For XL home systems or XS commercial systems, Solax has the new X3-Ultra series. With power classes from 15 to 30 kW, high DC input currents and 2 independent battery connections, the high-voltage hybrids are a real statement. Integrated overvoltage protection, AFCI arc detection and interfaces for radio ripple control receivers etc. leave little to be desired. Like the "small" X3 series, the Ultras can also be operated as real off-grid systems with a generator. As a perfect addition, there are also the new HV-S high-voltage storage series with up to 43.1 kWh of usable capacity. The 2 separate storage connections on the Ultra mean that up to 86.2 kWh are possible.

Product advantages:

? Ideal for large residential and small commercial applications

? Emergency power with UPS function < 10ms

? High input current per MPPT

? 2 independent battery connections

? Integrated arc detection AFCI

? Backup outputs can be cascaded *

System product features:

? AC power: 25.0 kW

? Number of MPPTs: 3

? DC input current: 36 A per MPPT

? Battery connections: 2

? Max. storage charging current: 30 A each

? AC connection: 3-phase

? Communication: Wifi, LAN (opt.), RS485

? Interfaces: 5 x DI (FRE), 2 x DO

? Protection class: IP65

? Cooling: active

? Dimensions: 696 x 526 x 240 mm (W x H x D)

? Weight: 47.0 kg

Storage product features:

? Battery capacity (usable): 34.5 (2.3 per module) kWh

? Time window for expansion: unlimited

? Cascadable: 2 to 13 battery modules

? Cell chemistry: LFP

? Nominal voltage: 51.2 V per storage module V

? Protection class: IP65

? Dimensions: 2282 x 510 x 365 mm (HxWxD)

? Weight: battery 28.0 kg each, BMS 10.0 kg

*Required accessories: X3-Ultra-EPS parallel box (currently only announced)

Conclusion:

If it just has to be bigger - no problem with the Solax Ultra hybrids including HS storage.

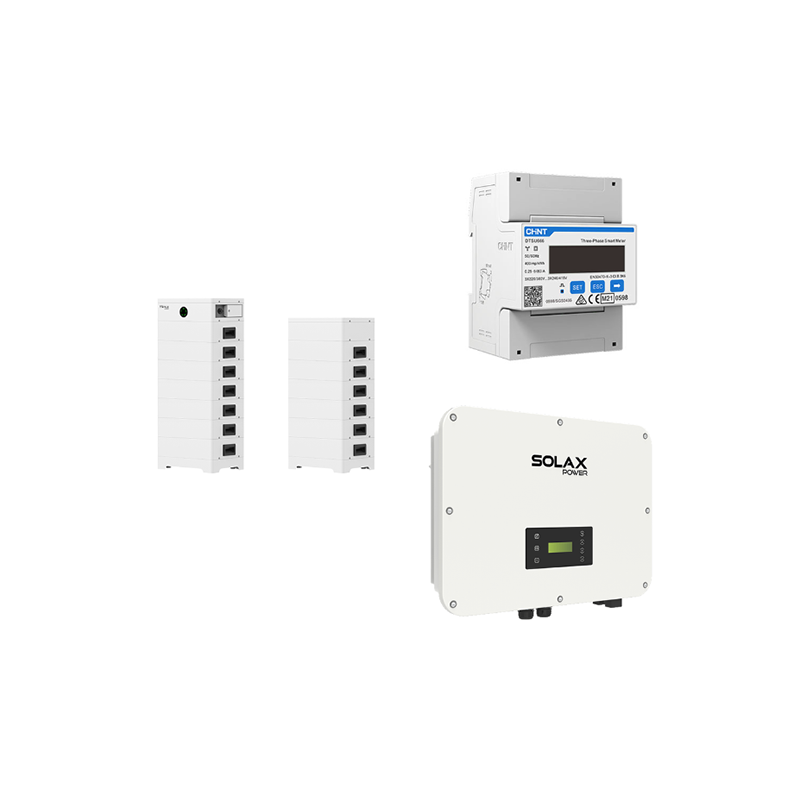

Scope of delivery:

? 1 x Solax X3-Ultra Hybrid 25K (item 0155100)

? 1 x Solax Meter DTSU666-D (item 0128464)

? 2 x Solax MCS0800 BCU + socket (item 0155372)

? 15 x Solax HV-S 2.5 storage module (item 0155103)

Key technical data

Product Details

Reference 0158325

In stock 10 Items

You can customize it or disable in the backoffice: Modules / Module manager / Product Extra Tabs.

Sample bullet list

Regular fit has a straight cut with room to move naturally
48% polyester / 48% acrylic / 4% wool
Faux leather sleeves
Full zip
Padded

Sample numbered list

Wipe clean with a damp cloth
Color may rub off onto other materials
Do not store in wet conditions

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.


Dangerous goods transportation category	2
Dangerous goods description	LITHIUM ION BATTERIES
Tunnel restriction code	(AND)
Classification code	M4
Dangerous goods class	9
Dangerous goods packaging type	4G
A No.	3480
Dangerous goods Weight (net) (kg)	264.000
