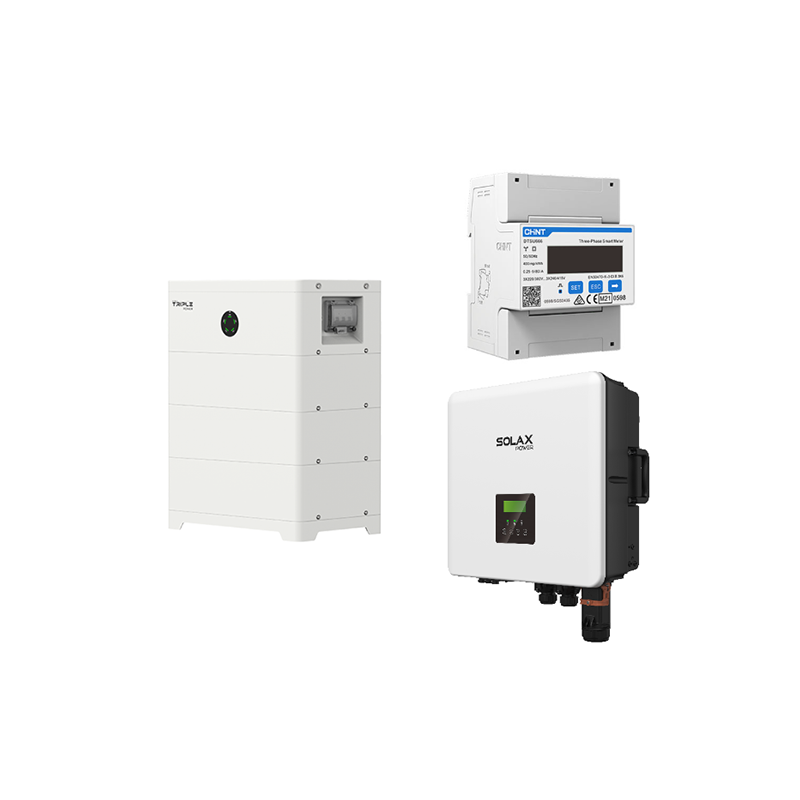

T-BAT HS 15.3 + X3-Hybrid 15.0 G4 PRO + Dongle

Name: T-BAT HS 15.3 + X3-Hybrid 15.0 G4 PRO + Dongle
Brand: SolaX Power
SKU: 0159294
Price: 9416.59 EUR
Availability: InStock

Reference 0159294

Brand SolaX Power

€9,416.59

€9,416.59 €7,782.31 €9,416.59 €7,782.31

VAT included VAT included VAT excluded VAT included VAT excluded

€7,782.31 VAT excluded

€9,416.59 VAT included

€1,634.28 Tax

€7,782.31 VAT excluded

€1,634.28 Tax

€9,416.59 VAT included

Quantity

In stock: 21 Items

Ask about the product on WhatsApp

Description
Custom Global tab

Description

The WiFi/LAN dongle is now included in the scope of delivery of the X3-Hybrid Pro.

With the PRO upgrade of the X3-Hybrid series from Solax, the devices are now fit for the future. This facelift brings up to three independent MPP trackers with 20A input current, two separate battery connections with a total of 50A, and a simplified layout of all COM ports. And this in power classes from 4 to 15 kW. Use as a true stand-alone system with generator connection is of course still permitted. The same applies to the extensive range of proven accessories such as the X3-EPS Box, X3-EPS Parallel Box, EV Charger, etc. Combined with the HV-S 5.1 storage series from Solax, there is a suitable set for every application.

Product advantages:

? Up to 3 independent MPPTs

? 20A input current per MPPT

? Intelligent AFCI arc detection

? 2 separate battery ports

? Up to 5 systems can be cascaded

? Up to 13 battery modules can be cascaded

System product features:

? AC power: 15.0 kW

? AC connection: 400V, 3-phase

? Number of MPPTs: 3

? DC input current: 20A per MPPT

? MPPT voltage range: 110 ? 950 V

? Number of battery ports: 2

? DC charging current per battery: 25A each (using both ports), 30A (using one port), 50A (parallel operation)

? Communication: Wi-Fi, LAN

? Interfaces (RJ45 standard ports): RS485, BMS 1+2, Adapterbox G2, Wallbox, Datahub DI/DO

? Protection class: IP66

? Cooling: active

? Dimensions: approx. 503 x 503 x 199 mm (W x H x D)

? Weight: 38.0 kg

? WiFi/LAN dongle included

Storage product features:

? Battery capacity (usable): 13.7 kWh

? Storage type: high-voltage

? Nominal voltage: 153.6 V

? Expansion time window: unlimited

? Number of storage modules in one unit: 3 to 13

(from the 8th storage unit, two towers can be set up with the Series Box)

? Cell chemistry: LFP

? Communication: RS485

? Cooling: passive

? Protection class: IP66

? Dimensions: 600 x 376 x 789 mm (L x W x H)

? Weight: BMS + base 18.5 kg, 46.0 kg per storage module

Conclusion:

Solax's ready-for-the-future statement. Practical and well-thought-out features of the new PRO hybrids, plus the HV-S 5.1 storage units with plenty of punch.

Key technical data

Product Details

Brand SolaX Power

Reference 0159294

In stock 21 Items
