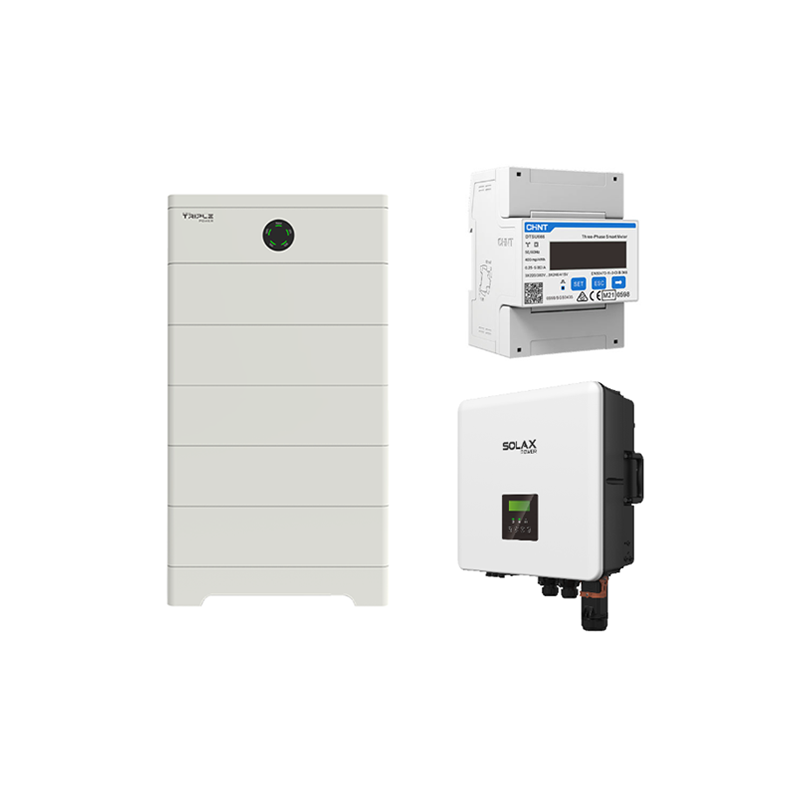

T-BAT-HS 12.5 + X3-Hybrid 15.0-P G4 PRO + Dongle
T-BAT-HS 12.5 + X3-Hybrid 15.0-P G4 PRO + Dongle
Description
The WiFi/LAN dongle is now included in the scope of delivery of the X3 Hybrid.
With the new PRO upgrade of the X3-Hybrid series from Solax, the devices are now fit for the future. This facelift brings up to three independent MPP trackers with 20A input current, two separate battery connections with a total of 50A, and a simplified layout of all COM ports. And this in power classes from 4 to 15 kW. Use as a true stand-alone system with generator connection is of course still approved. The same applies to the extensive range of proven accessories such as the X3-EPS Box, X3-EPS Parallel Box, EV Charger, etc. Combined with the HS storage series from Solax, there is a suitable set for every application.
Product advantages:
? Dimensions: approx. 503 x 503 x 199 mm (W x H x D)
? Weight: 38.0 kgUp to 3 independent MPPTs
? 20A input current per MPPT
? 2 separate battery ports
? Cascadable up to 13 battery modules
? Simplified COM ports with RJ45
System product features:
? AC power: 15.0 kW
? Feed-in phases: 3
? AC connection: 400 V
? Max. DC input voltage: 1000 V
? Max. DC input current: 20A per MPPT
? DC surge protection: Type 2
? AC surge protection: Type 2
? Number of battery ports: 2
? Battery DC charging current: 25A each (using both ports), 30A (using one port), 50A (parallel operation)
? Communication: Wi-Fi, LAN
? Interfaces (RJ45 standard ports): RS485, BMS 1+2, Adapter Box G2, Wallbox, Datahub, DI/DO
? Protection class: IP66
? Cooling: active
? Dimensions: approx. 503 x 503 x 199 mm (W x H x D)
? Weight: 38.0 kg
? Wi-Fi/LAN dongle included
Storage product features:
? Battery capacity (usable): 11.5 kWh
? Storage type: High-voltage
? Nominal voltage: 256.0 V
? Expansion time window: unlimited
? Number of storage modules in one unit: 2 to 13 (Solax Series Box required for 9 or more units)
? Cell chemistry: LFP
? Communication: RS485 / CAN
? Protection class: IP65
? Dimensions: 910 x 510 x 365 mm (H x W x D)
? Weight: Battery 28.0 kg each, BMS + base 21.0 kg
Conclusion:
The Ready-for-the-future statement from Solax. Practical and well-thought-out features for the new PRO hybrids, plus the HS storage units with plenty of punch.
Scope of delivery:
? 1 x Solax X3-Hybrid 15.0-P G4 PRO (item 0158960)
? 1 x Solax Meter DTSU666-D (item 0128464)
? 1 x Solax MCS0800 BCU + Base (item 0155372)
? 5 x Solax HV-S 2.5 storage modules (item 0155103)
Key technical data
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Dangerous goods Weight (net) (kg) | 88.000 |
| Tunnel restriction code | (AND) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| A No. | 3480 |
