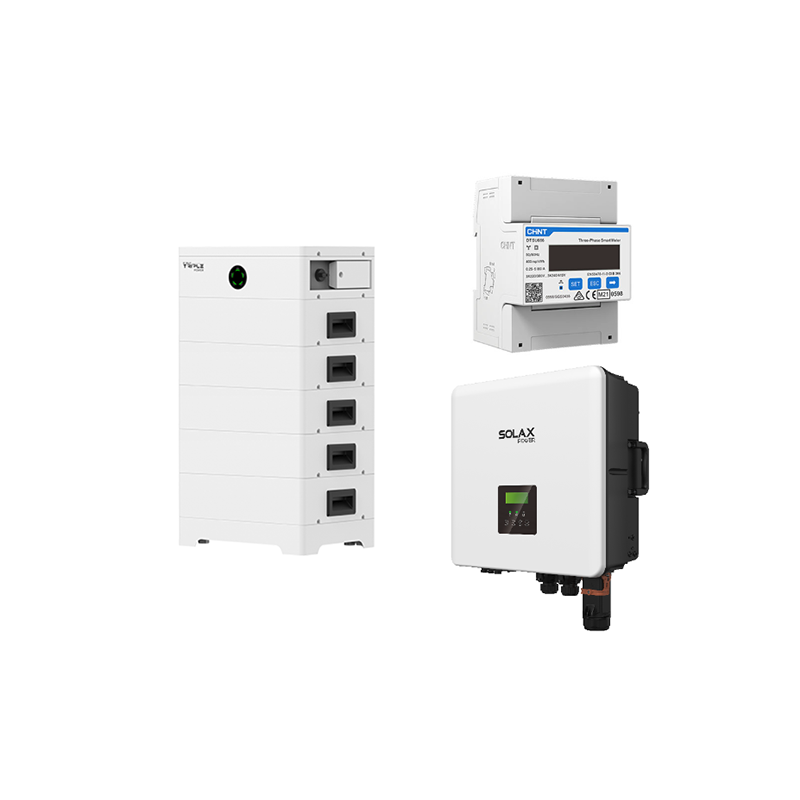

T-BAT-HS 12.5 + X3-Hybrid 10.0-P G4 PRO + Dongle

Name: T-BAT-HS 12.5 + X3-Hybrid 10.0-P G4 PRO + Dongle
Brand: SolaX Power
SKU: 0159560
Price: 7806.67 EUR
Availability: InStock

Reference 0159560

Brand SolaX Power

€7,806.67

€7,806.67 €6,451.80 €7,806.67 €6,451.80

VAT included VAT included VAT excluded VAT included VAT excluded

€6,451.80 VAT excluded

€7,806.67 VAT included

€1,354.88 Tax

€6,451.80 VAT excluded

€1,354.88 Tax

€7,806.67 VAT included

Quantity

In stock: 29 Items

Ask about the product on WhatsApp

Description
Custom Global tab

Description

The WiFi/LAN dongle is now included in the scope of delivery of the X3 Hybrid.

With the new PRO upgrade of the X3-Hybrid series from Solax, the devices are now fit for the future. This facelift brings up to three independent MPP trackers with 20A input current, two separate battery connections with a total of 50A, and a simplified layout of all COM ports. And this in power classes from 4 to 15 kW. Use as a true stand-alone system with generator connection is of course still approved. The same applies to the extensive range of proven accessories such as the X3-EPS Box, X3-EPS Parallel Box, EV Charger, etc. Combined with the HS storage series from Solax, there is a suitable set for every application.

Product advantages:

? Up to 3 independent MPPTs

? 20A input current per MPPT

? 2 separate battery ports

? Cascadable up to 13 battery modules

? Simplified COM ports with RJ45

System product features:

? AC power: 10.0 kW

? Feed-in phases: 3

? AC connection: 400 V

? Number of MPPTs: 3

? Max. DC input voltage: 1000 V

? Max. DC input current: 20A per MPPT

? DC surge protection: Type 2

? AC surge protection: Type 2

? Number of battery ports: 2

? Battery DC charging current: 25A each (using both ports), 30A (using one port), 50A (parallel operation)

? Communication: Wi-Fi, LAN

? Interfaces (RJ45 standard ports): RS485, BMS 1+2, Adapter Box G2, Wallbox, Datahub, DI/DO

? Protection class: IP66

? Cooling: passive

? Dimensions: approx. 503 x 503 x 199 mm (W x H x D)

? Weight: 38.0 kg

? Wi-Fi/LAN dongle included

Storage product features:

? Battery capacity (usable): 11.5 kWh

? Storage type: High-voltage

? Nominal voltage: 256.0 V

? Expansion time window: unlimited

? Number of storage modules in one unit: 2 to 13 (Solax Series Box required for 9 or more units)

? Cell chemistry: LFP

? Communication: RS485 / CAN

? Protection class: IP65

? Dimensions: 910 x 510 x 365 mm (H x W x D)

? Weight: Battery 28.0 kg each, BMS + base 21.0 kg

Conclusion:

The Ready-for-the-Future Statement from Solax. Practical and well-thought-out features for the new PRO hybrids, plus the HS storage units with plenty of power.

Scope of delivery:

? 1 x Solax X3-Hybrid 10.0-P G4 PRO (item 0158958)

? 1 x Solax Meter DTSU666-D (item 0128464)

? 1 x Solax MCS0800 BCU + Base (item 0155372)

? 5 x Solax HV-S 2.5 storage modules (item 0155103)

Key technical data

Product Details

Brand SolaX Power

Reference 0159560

In stock 29 Items

You can customize it or disable in the backoffice: Modules / Module manager / Product Extra Tabs.

Sample bullet list

Regular fit has a straight cut with room to move naturally
48% polyester / 48% acrylic / 4% wool
Faux leather sleeves
Full zip
Padded

Sample numbered list

Wipe clean with a damp cloth
Color may rub off onto other materials
Do not store in wet conditions

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.


Dangerous goods transportation category	2
Dangerous goods description	LITHIUM ION BATTERIES
Dangerous goods Weight (net) (kg)	88.000
Tunnel restriction code	(AND)
Classification code	M4
Dangerous goods class	9
Dangerous goods packaging type	4G
A No.	3480
