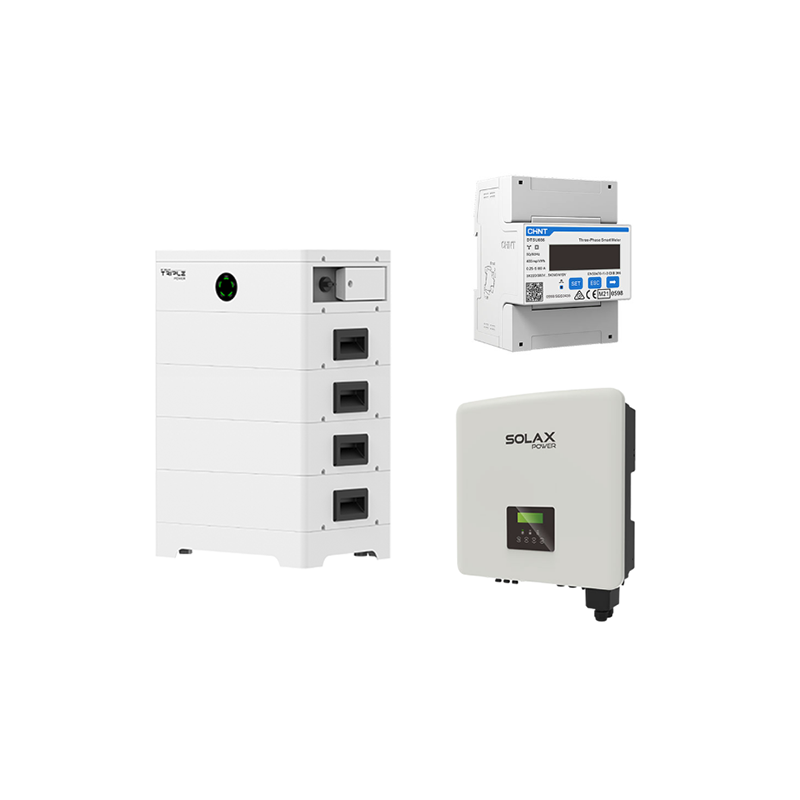

T-BAT HS 10.0 + X3-Hybrid 5.0 D G4.2

Name: T-BAT HS 10.0 + X3-Hybrid 5.0 D G4.2
Brand: Combishop
SKU: 0155719
Price: 6064.43 EUR
Availability: InStock

Reference 0155719

€6,064.43

€6,064.43 €5,011.93 €6,064.43 €5,011.93

VAT included VAT included VAT excluded VAT included VAT excluded

€5,011.93 VAT excluded

€6,064.43 VAT included

€1,052.51 Tax

€5,011.93 VAT excluded

€1,052.51 Tax

€6,064.43 VAT included

Quantity

In stock: 41 Items

Ask about the product on WhatsApp

Description
Custom Global tab

Description

Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

In this storage package, we combine Solax's proven X3 hybrids with power classes from 5 to 15 kW and the new HV-S 2.5 storage series. This can be cascaded with up to 13 storage modules per tower for a usable capacity of 29.9 kWh. Fast, wireless stacking with no time limit for expansion creates the best conditions and maximum flexibility. It's also ideal for special applications as a true off-grid system with generator connection.

Product advantages:

? Reliable compatibility thanks to a single manufacturer

? Emergency power with UPS function < 10 ms

? High input current per MPPT

? Up to 10 systems can be cascaded

? Proven, ultra-flat stacking design

? Up to 13 battery modules can be cascaded

? Updates and diagnostics via the inverter

System product features:

? AC power: 5.0 kW

? Number of MPPTs: 2

? DC input current: 16 A per MPPT

? AC connection: 3-phase

? Communication: Wi-Fi, LAN (optional), RS485

? Protection class: IP65

? Cooling: passive

? Dimensions: 503 x 503 x 199 mm (W x H x D)

? Weight: 30.0 kg

Storage product features:

? Battery capacity (usable): 9.2 kWh

? Time window for expansion: unlimited

? Cascadable: 2 to 13 battery modules (Solax Series Box required for 9 or more units)

? Cell chemistry: LFP

? Nominal voltage: 204.8 V

? Protection class: IP65

? Dimensions: 773 x 510 x 365 mm (HxWxD)

? Weight: Battery 28.0 kg each, BMS 10.0 kg

Conclusion:

With a wide performance range and new, ultra-flexible storage sizes, there's a suitable package for every application.

Scope of delivery:

? 4 x Solax T-BAT-SYS-HV-S2.5 storage modules (item 0155103)

? 1 x Solax Master Box MCS0800 + Base (item 0155372)

? 1 x Solax 3-Phase Smart Meter DTSU666-D (item 0128464)

? 1 x Solax Hybrid Inverter X3-HYBRID-5.0-D G4.2 (item 0151784)

Key technical data

Product Details

Reference 0155719

In stock 41 Items
