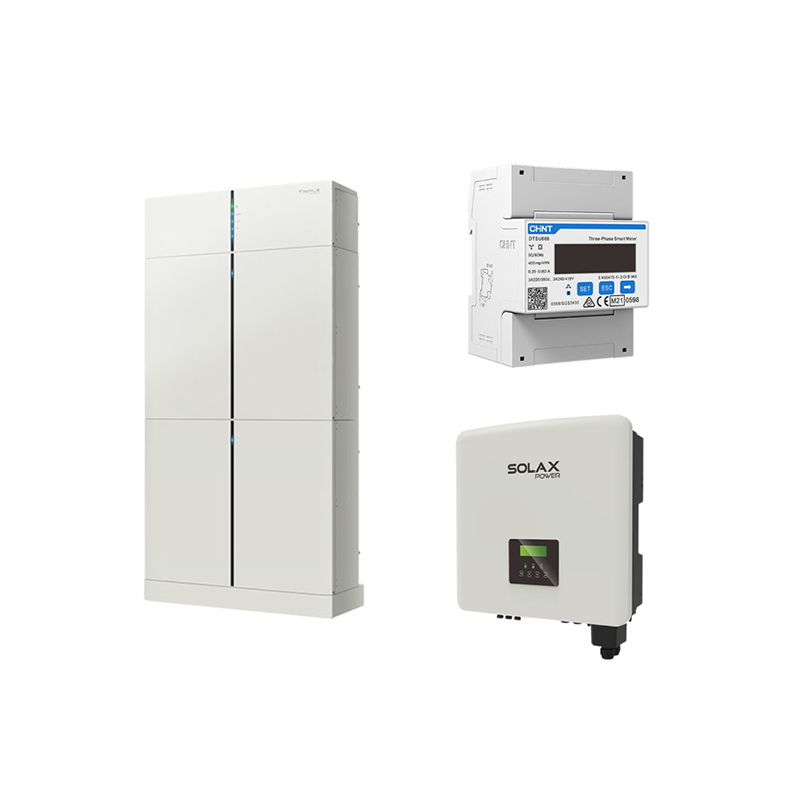

T-BAT H 6.0 + X3-Hybrid 5.0-D G4.2

Name: T-BAT H 6.0 + X3-Hybrid 5.0-D G4.2
Brand: Combishop
SKU: 0155050
Price: 4551.52 EUR
Availability: InStock

Reference 0155050

€4,551.52

€4,551.52 €3,761.59 €4,551.52 €3,761.59

VAT included VAT included VAT excluded VAT included VAT excluded

€3,761.59 VAT excluded

€4,551.52 VAT included

€789.93 Tax

€3,761.59 VAT excluded

€789.93 Tax

€4,551.52 VAT included

Quantity

In stock: 41 Items

Ask about the product on WhatsApp

Description
Custom Global tab

Description

Pocket Wifi Interface V3.0 (Krannich item 0151804), Pocket Wifi Interface V3.0-P (inclusive antenna / Krannich item 0151805) or Pocket Lan Interface V3.0 (Krannich item 0151803) are recommended for registering the system in Solax Monitoring.

With the Solax T-BAT H 3.0 high-voltage battery, ideal storage sizes of up to 12.0 kWh can be put together for the residential sector. Thanks to the individual capacity of 3.0 kWh, this can be done in small steps and with a precise fit. With a depth of only 148 mm, the storage unit can be installed anywhere. And in combination with the Solax Mate Box for automatic backup power switching, even as a complete unit including inverter. These shine in the 3-phase X3 series with a power range from 5 to 15 kW and can be used in any type of application, including true stand-alone operation.

Product advantages:

? Secure compatibility through unified manufacturer

? Emergency power with UPS function < 10ms

? High input current per MPPT

? Up to 5 systems cascadable

? Proven ultra-flat stack design

? Cascadable up to 4 battery modules

? Updates and diagnostics via the inverter

Product Features System:

? AC power: 5.0 kW

? Number of MPPT: 2

? DC input current: 16A each MPPT

? AC connection: 3-phase

? Communication: Wifi, LAN (opt.), RS485

? Protection class: IP65

? Cooling: passive

? Dimensions: 503 x 503 x 199 mm (W x H x D)

? Weight: 30.0 kg

Product features Storage:

? Battery capacity (usable): 5.5 kWh

? Time window extension: up to 1 year

? Cascadable: up to 4 battery modules

? Cell chemistry: LFP

? Rated voltage: 180 - 232 V

? Protection class: IP65

? Dimensions: 1178 x 482 x 148 mm (H x W x D)

? Weight: BMS + base: 7.5 kg, 2 x storage 34.5 kg each

Conclusion:

With a broad performance spectrum and flexible battery sizes, the right package can be found here for every application.

Scope of delivery:

? 1 x Solax X3-Hybrid 5.0-D G4.2 (item 0151784)

? 1 x Solax Meter DTSU666-D (item 0128464)

? 1 x Solax MC0600 BCU + socket (item 0154795)

? 2 x Solax HV10230 battery module (item 0152297)

Key technical data

Product Details

Reference 0155050

In stock 41 Items

You can customize it or disable in the backoffice: Modules / Module manager / Product Extra Tabs.

Sample bullet list

Regular fit has a straight cut with room to move naturally
48% polyester / 48% acrylic / 4% wool
Faux leather sleeves
Full zip
Padded

Sample numbered list

Wipe clean with a damp cloth
Color may rub off onto other materials
Do not store in wet conditions

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.


Dangerous goods transportation category	2
Dangerous goods description	LITHIUM ION BATTERIES
Tunnel restriction code	(AND)
Classification code	M4
Dangerous goods class	9
Dangerous goods Weight (net) (kg)	39.360
Dangerous goods packaging type	4G
A No.	3480
