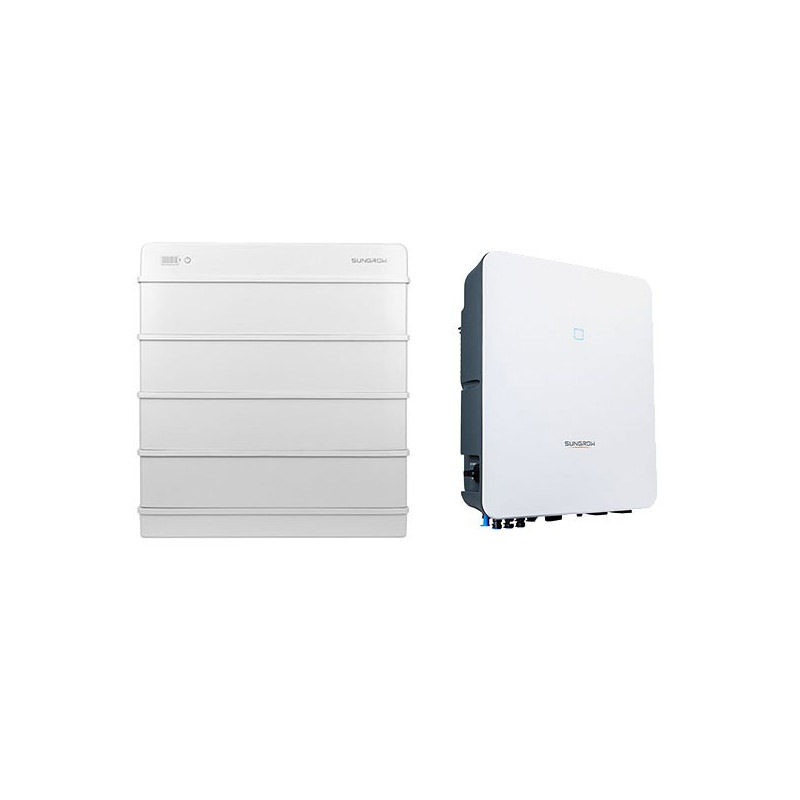

Sungrow SBR128 V13.2 + SH6.0RT-V112
  • Sungrow SBR128 V13.2 + SH6.0RT-V112

Sungrow SBR128 V13.2 + SH6.0RT-V112

0154832
Sungrow
Sungrow SBR128 V13.2 + SH6.0RT-V112

This pack contains

€6,820.53
€6,820.53 €5,636.80 €6,820.53 €5,636.80
VAT included VAT included VAT excluded VAT included VAT excluded
€5,636.80 VAT excluded
€6,820.53 VAT included
€1,183.73 Tax
€5,636.80 VAT excluded
€1,183.73 Tax
€6,820.53 VAT included

Instead of €6,820.53

Quantity
Last items in stock
1 Item

Ask about the product on WhatsApp
Description

Caution:

Hazardous material according to UN 3480 / Transport dangerous class 9 / packaging group II

Technical details

Topology: without transformer
Invoerfasen: 3
Number of independent MPPT (PCS): 2
Max, I need you. Efficiency (in%): 98,20
Max. input voltage DC (V): 1.000,00
Max, I need you. AC power (KVA): 6,00
Nominal AC power (kW): 6,00
European efficiency (%): 97,50
Max, I need you. DC power from the generator (KWP): 9,00
Battery: High voltage
Usable capacity (kWh): 12,80
Grade of protection: Ip55
Eng_latn: without playback
Number of connected phases: 3
Stakeholders: Ethernet, RS485, W-LAN
Type DC connector: MC4 connectable
Type of inverter: Hybrid inverter, string converter
Commercial system: not
Integrated DC switch: yes
Max, I need you. Ambient temperature (° C): 50
MPP min. Voltage range input (V): 200,00
MPP max. Input voltage range (v): 950,00
Extendable capacity: Yes without limitation
Decibel: 30
Start input voltage (V): 250
Max.kortsluitstroom (A) Total: 32,00
Max, I need you. Discharge capacity (kw): 7,68
Max.uitgangsstroom (A): 9,10
Max, I need you. Short-circuit current per mppt (a): 16,0
Cos Phi. : +/- 0.8, +/- 0.9, 1
Frequency of the alternating current network (Hz). : 50/60
AC mains voltage (v): 220, 230, 240, 380, 400, 415
Total number of string inputs: 2
Max, I need you. Total input current DC (a): 25,00
Overvoltage protection AC: Type 2
Surge protection DC: Type 2
Max, I need you. Nominal power (kw): 7,68
Max, I need you. Entrance current per MPPT (A). : 12,5
Chemical properties of battery cells: Lfp
Intrastat Product Number (HS code): 85076000
UN number. :
