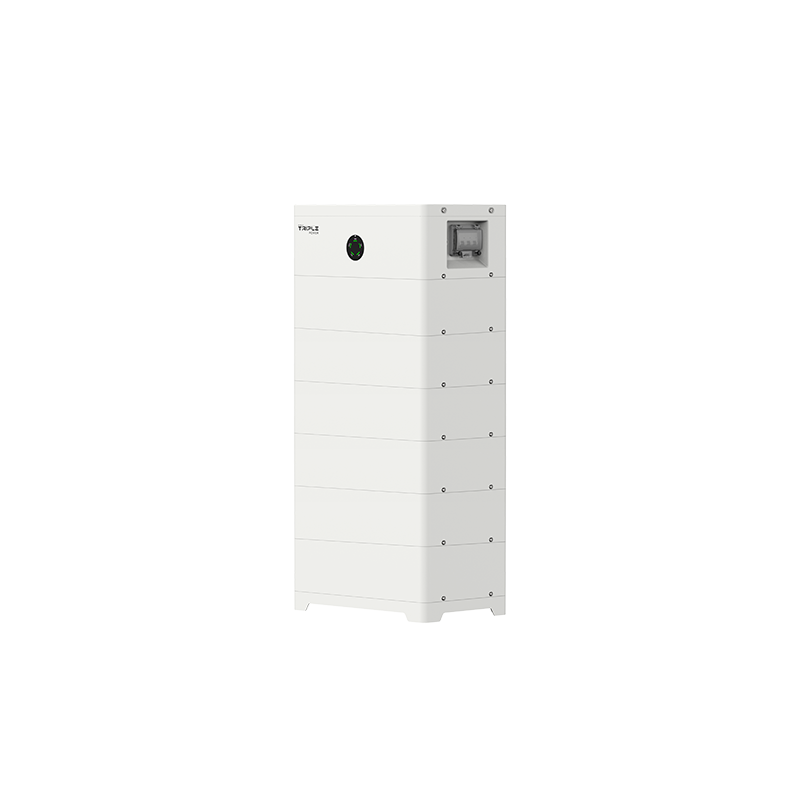

TSYS-HS51 (27.6 kWh usable)
  • TSYS-HS51 (27.6 kWh usable)

TSYS-HS51 (27.6 kWh usable)

0159290
SolaX Power
TSYS-HS51 (27.6 kWh usable)
€12,785.00
€12,785.00 €10,566.11 €12,785.00 €10,566.11
VAT included VAT included VAT excluded VAT included VAT excluded
€10,566.11 VAT excluded
€12,785.00 VAT included
€2,218.88 Tax
€10,566.11 VAT excluded
€2,218.88 Tax
€12,785.00 VAT included
Quantity
13 Items

Ask about the product on WhatsApp
Description
For > 8 memory modules, the system must be set up with the Series Box in two towers.
The HV-S 5.1 from Solax is the latest addition to the T-BAT-HS high-voltage storage series. With a usable capacity of 4.5 kWh each and up to 13 storage modules, a total of up to 59.8 kWh is possible. Charging currents of up to 70 amps enable correspondingly high charging power. The ideal combination for the new X3-Ultra hybrids with 15 to 30 kW. However, this storage unit can also be operated with existing, smaller systems. Fast, wireless installation and unlimited expansion are a major plus.

Product advantages:
? Proven wireless stacking design
? Up to 13 storage modules per unit
? Updates and diagnostics via the inverter

Product features:
? Battery capacity (usable): 27.6 kWh
? Storage type: High-voltage
? Nominal voltage: 307.2 V
? Expansion time frame: unlimited
? Number of storage modules in one unit: 2 to 13
(from the 8th storage unit, two towers can be set up with the Series Box)
? Cell chemistry: LFP
? Communication: RS485
? Cooling: passive
? Protection class: IP66
? Dimensions: 600 x 376 x 1293 mm (L x W x H)
? Weight: BMS + base 18.5 kg, each storage module 46.0 kg

Scope of delivery:
? 6 x Solax T-BAT SYS HV-S 5.1 storage modules (item 0159246)
? 1 x Solax T-BAT BMS TBSM-S51-8 + base (article 0159247)

Wichtige technische Daten

Product Details
SolaX Power
0159290
13 Items
