T-BAT-SYS-HV-S2.5 (16.1 kWh usable)
  • T-BAT-SYS-HV-S2.5 (16.1 kWh usable)

T-BAT-SYS-HV-S2.5 (16.1 kWh usable)

0155578
SolaX Power
T-BAT-SYS-HV-S2.5 (16.1 kWh usable)
€7,461.82
€7,461.82 €6,166.80 €7,461.82 €6,166.80
VAT included VAT included VAT excluded VAT included VAT excluded
€6,166.80 VAT excluded
€7,461.82 VAT included
€1,295.03 Tax
€6,166.80 VAT excluded
€1,295.03 Tax
€7,461.82 VAT included
Quantity
106 Items

Ask about the product on WhatsApp
Description

Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II

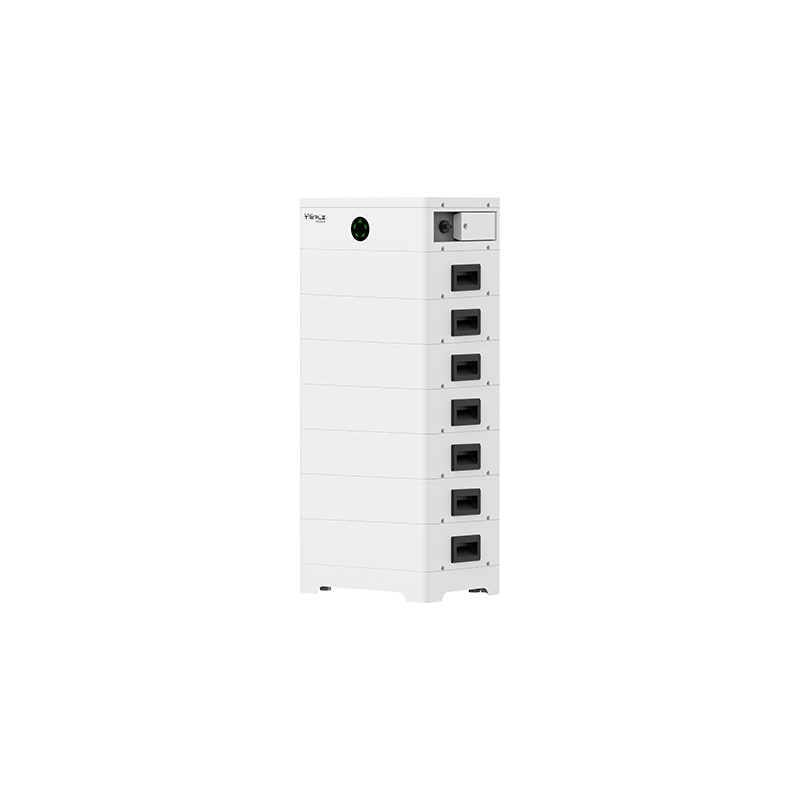

The T-BAT SYS-HV-S high-voltage storage series enables a usable capacity of up to 29.9 kWh per unit. This makes it the ideal combination for the new X3 Ultra hybrids with 15 to 30 kW. However, this storage system can also be used with existing, smaller systems. Fast, wireless installation and unlimited expansion are a major plus.

Product advantages:
? Proven wireless stacking design
? Up to 13 storage modules per unit
? Updates and diagnostics via the inverter

Storage product features:
? Battery capacity (usable): 16.1 kWh
? Expansion time window: unlimited
? Configuration per unit: 2 to 13 battery modules
? Cell chemistry: LFP
? Nominal voltage: 358.4 V
? Protection class: IP65
? Dimensions: 1185 x 510 x 365 mm (HxWxD)
? Weight: Storage - 7 x 28.0 kg; BMS - 10.0 kg

Scope of delivery:
? 7 x Solax T-BAT-SYS-HV-S2.5 storage modules (item 0155103)
? 1 x Solax Master Box MCS0800 + base (item 0155372)

Wichtige technische Daten

Product Details
SolaX Power
0155578
106 Items
