T-BAT H 3.0 V2
  • T-BAT H 3.0 V2

T-BAT H 3.0 V2

0155045
SolaX Power
T-BAT H 3.0 V2
€1,706.30
€1,706.30 €1,410.16 €1,706.30 €1,410.16
VAT included VAT included VAT excluded VAT included VAT excluded
€1,410.16 VAT excluded
€1,706.30 VAT included
€296.13 Tax
€1,410.16 VAT excluded
€296.13 Tax
€1,706.30 VAT included
Quantity
140 Items

Ask about the product on WhatsApp
Description

Product information "T-BAT H 3.0 V2"

According to the manufacturer's specifications, a maximum of 2 storage units may be installed on top of each other. For storage combinations with 3 or 4 storage modules, these must be installed as a separate unit (2nd tower).

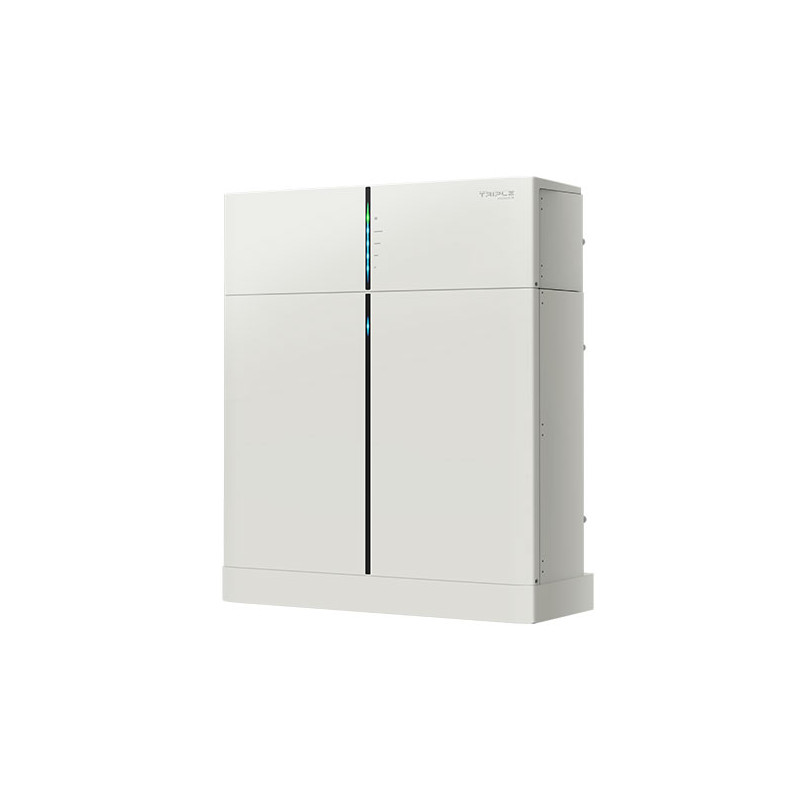

With the Solax T-BAT H 3.0 high-voltage battery, ideal storage sizes up to 12.0 kWh can be assembled for the residential sector. Thanks to the individual capacity of 3.0 kWh, this can be done in small steps and with a precise fit. With a depth of only 148 mm, the storage unit can be installed anywhere. And in combination with the Solax Mate Box for automatic backup power switching, even as a complete unit including inverter.

Product advantages:
? Proven, ultra-flat stack design
? Cascadable up to 4 battery modules
? Updates and diagnostics via the inverter

Product Features Storage:
? Battery capacity (usable): 2.8 kWh
? Time window extension: up to 1 year
? Cascadable: up to 4 battery modules
? Cell chemistry: LFP
? Rated voltage: 90 - 116
? Protection class: IP65
? Dimensions: 646 x 482 x 148 mm (H x W x D)
? Weight: BMS + base: 7.5 kg, 1 x storage 34.5 kg each

Scope of delivery:
? 1 x Solax MC0600 BCU + base (item 0154795)
? 1 x Solax HV10230 storage module (item 0152297)

Wichtige technische Daten

Dangerous goods transportation category 2
Dangerous goods description LITHIUM ION BATTERIES
Tunnel restriction code (E)
Classification code M4
Dangerous goods Weight (net) (kg) 19.680
Dangerous goods class 9
Dangerous goods packaging type 4G
UN No. 3480
Product Details
SolaX Power
0155045
140 Items
