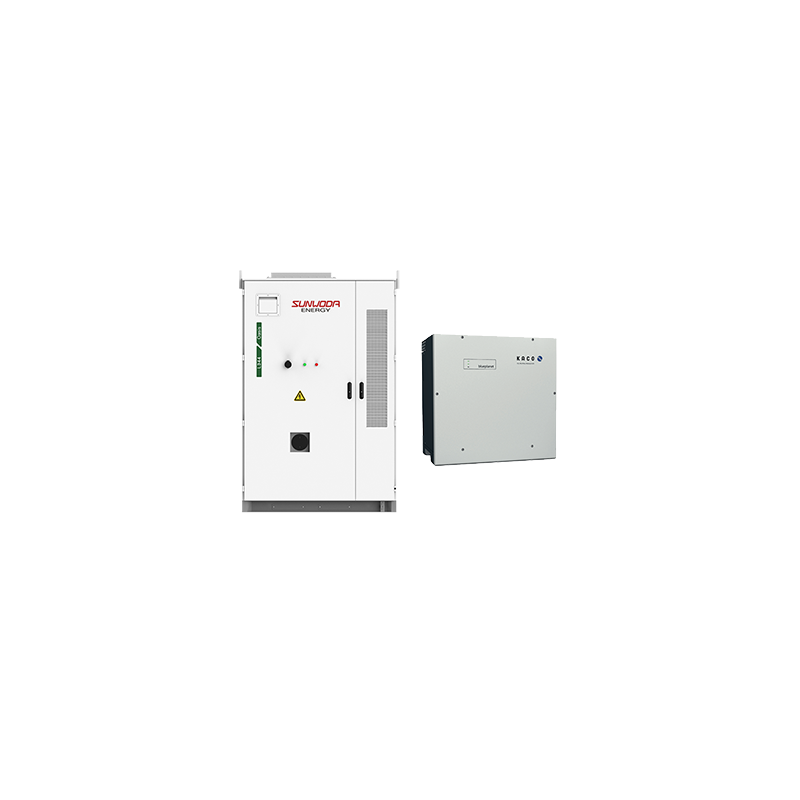

Oasis L344 + blueplanet gridsave 92.0 TL3-S
Oasis L344 + blueplanet gridsave 92.0 TL3-S
Description
An external EMS from Birdtical is required.
This inverter requires a mains voltage of 400 volts.
Due to the high total weight of the storage system due to complete pre-assembly, suitable vehicles must be used for unloading and transport.
Provide suitable crimping tools for the connectors (see manual).
The AC-coupled storage inverters in the blueplanet gridsave series from Kaco are suitable for a wide range of commercial applications with a charging capacity of 92 to 137 kW and a very high storage voltage. The additionally required EMS from Connectica creates the appropriate interfaces. The Oasis Commercial Storage from Sunwoda with efficient liquid cooling completes this storage set. It can be flexibly installed outdoors and supports any application scenario.
Product advantages:
? High DC input voltage
? Flexible installation thanks to efficient liquid cooling
Product features System:
? AC rated power: 92.0 kW
? Model type: Version L
? Feed-in phases: 3
? Mains voltage: 400 V
? Number of battery connections: 1
? DC voltage max.: 1315 V
? DC current max.: 145 A
? Communication: TCP / IP, Modbus
? Protection class: IP66
? Cooling: active
? Dimensions: 719 x 699 x 450 mm (H x W x D)
? Weight: 80.0 kg
Product features Storage:
? Capacity (usable): 344.0 kWh
? Storage type: High-voltage
? Time window extension: unlimited (only as a complete combi with inverter)
? Number of storage modules in one unit: 8
? Cascadable units: -
? Cell chemistry: LFP
? Communication: CAN, RS485, Ethernet
? Cooling: Liquid cooling
? Protection class: IP55
? Dimensions: 1570 x 1570 x 2380 mm (L x W x H)
? Weight: total 3480.0 kg
Conclusion:
This combination has the best prerequisites for flexible and reliable applications.
Scope of delivery:
? 1 x Kaco blueplanet gridsave 92.0 TL3-S (item 0157047)
? 1 x Sunwoda L344 (item 0159857)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 3480.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
