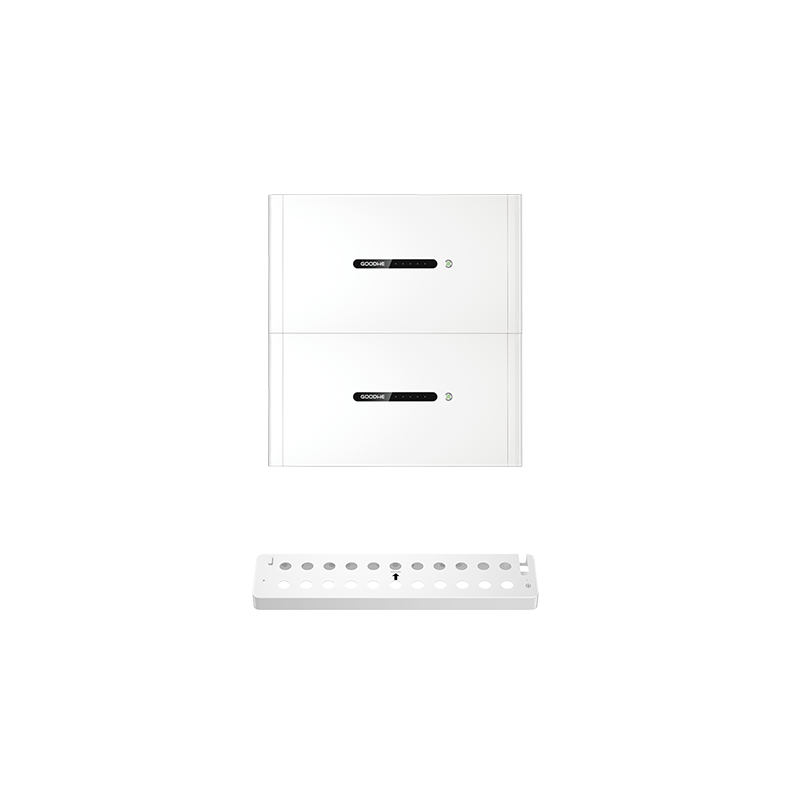

Description
This set includes the stand for floor mounting. If wall mounting is desired, please order the storage modules and mounting brackets separately.
A maximum of 4 storage modules can be stacked on top of each other. If you have more than 4 modules, you will need to set them up in two towers.
With the new Lynx D series, Goodwe is bringing a new player to its residential and small-commercial storage portfolio. In addition to higher capacity per module and system, the integrated DC/DC converter enables highly flexible applications with just one battery per inverter. The BMS is now also included in every storage module, enabling optimal energy management and unlimited retrofitting. This eliminates the need for time-consuming preparation before adding an element. A usable capacity of 40.0 kWh can be achieved with up to 8 modules.
Product advantages:
? Complete storage system + stand
? High voltage level per module allows for flexible applications
? Unlimited expansion thanks to integrated BMS
? Up to 8 storage modules with a total of 40.0 kWh
Product features:
? Battery capacity (usable): 10.0 kWh
? Expansion time window: unlimited
? System configuration: 1 to 8 units
? Charging power: 3.0 kW
? DC connector type: HD
? Cell chemistry: LFP
? Nominal voltage: 320 - 480 V
? Communication: CAN
? Cooling: passive
? Protection class: IP66
? Installation: Floor or wall
? Dimensions: 800 x 700 x 170 mm (HxWxD)
? Weight: 52.0 kg per storage module
? Warranty: 10 years
Compatible inverter series: ET G2, ET Plus+, ET 15-30, ET 40-40 BT, EH Plus+, BH
Scope of delivery:
? 2 x Goodwe Lynx D 5.0-10 battery modules (item 0158717)
? 1 x Goodwe Lynx D stand (item 0158718)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 104.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
