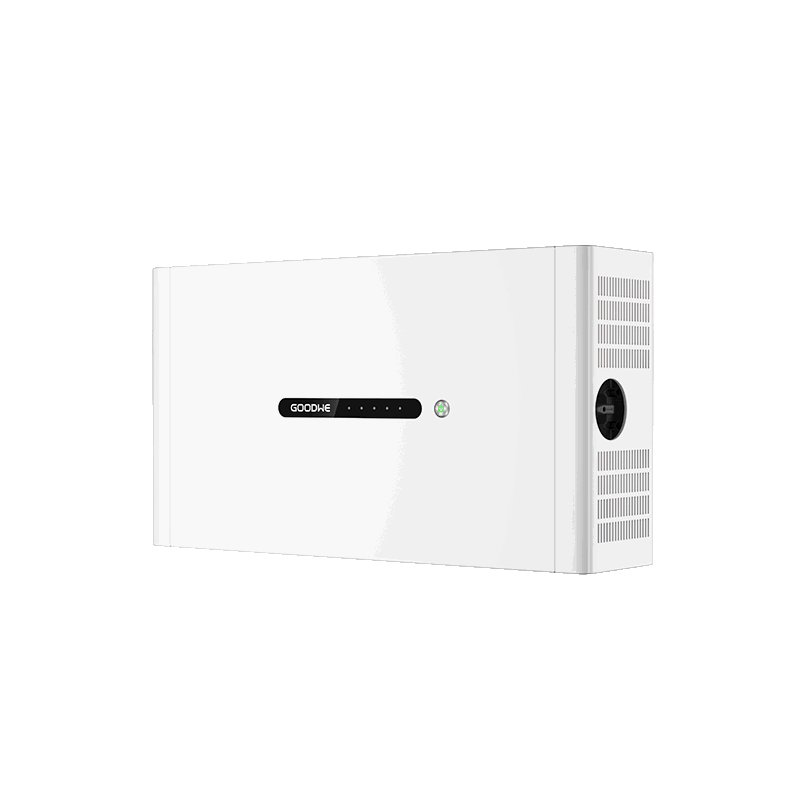

Lynx D 5.0-10
  • Lynx D 5.0-10

Lynx D 5.0-10

0158717
Goodwe
Lynx D 5.0-10
€1,737.94
€1,737.94 €1,436.32 €1,737.94 €1,436.32
VAT included VAT included VAT excluded VAT included VAT excluded
€1,436.32 VAT excluded
€1,737.94 VAT included
€301.63 Tax
€1,436.32 VAT excluded
€301.63 Tax
€1,737.94 VAT included
Quantity
1323 Items

Ask about the product on WhatsApp
Description

Product information "Lynx D 5.0-10"

The two versions of the Lynx-D 5.0-10 (difference in manufacturer's part number -01 and -08) can be mixed. Due to the different DC connectors, adapters are required. These can be obtained from Goodwe Support.

Depending on the desired setup, a base or wall-mounting rack must be added to each tower. This contains important components for installation.

A maximum of 4 storage modules can be stacked on top of each other. For > 4 modules, the system must be set up in two towers.
With the new Lynx D series, Goodwe is bringing a new player to its residential and small-commercial storage portfolio. In addition to higher capacity per module and system, the integrated DC/DC converter enables the most flexible applications, starting with just one battery per inverter. The BMS is now also included in every storage module, allowing for optimal energy management and unlimited retrofitting. This eliminates the need for time-consuming preparation before adding an element. With up to 8 modules, a usable capacity of 40.0 kWh can be achieved.

Product advantages:
? High voltage level per module allows for flexible applications
? Unlimited expansion thanks to integrated BMS
? Up to 8 storage modules with a total of 40.0 kWh

Product features:
? Battery capacity (usable): 5.0 kWh
? Expansion time window: unlimited
? System configuration: 1 to 8 units
? Charging power: 3.0 kW
? DC connector type: HD (version -08) *
? Cell chemistry: LFP
? Nominal voltage: 320 - 480 V
? Communication: CAN
? Cooling: passive
? Protection class: IP66
? Installation: Floor or wall
? Dimensions: 380 x 700 x 170 mm (HxWxD)
? Weight: 52.0 kg
? Warranty: 10 years

*The connectors required for the complete installation are sometimes included in the required mounting kit for wall or floor mounting. This must be ordered separately.

Compatible inverter series: ET G2, ET Plus+, ET 15-30, ET 40-40, BT, EH Plus+, BH

Wichtige technische Daten

Dangerous goods transportation category 2
Dangerous goods description LITHIUM ION BATTERIES
Tunnel restriction code (E)
Classification code M4
Dangerous goods class 9
Dangerous goods packaging type 4G
UN No. 3480
Dangerous goods Weight (net) (kg) 52.000
Product Details
0158717
1323 Items
