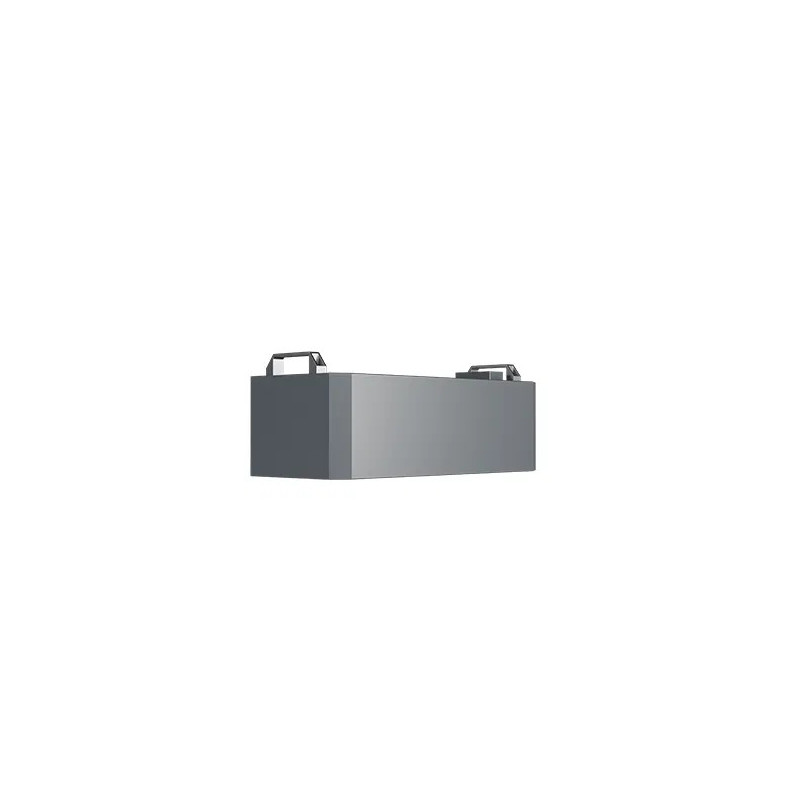

HELIVOR HV-3.2
  • HELIVOR HV-3.2

HELIVOR HV-3.2

0162409
Kostal
HELIVOR HV-3.2
€1,272.23
€1,272.23 €1,051.43 €1,272.23 €1,051.43
VAT included VAT included VAT excluded VAT included VAT excluded
€1,051.43 VAT excluded
€1,272.23 VAT included
€220.80 Tax
€1,051.43 VAT excluded
€220.80 Tax
€1,272.23 VAT included
Quantity

Ask about the product on WhatsApp
Description
Installation of Kostal's new HELIVOR high-voltage storage system is extremely smooth thanks to its screwless, cable-free stacking design. With minimal space requirements, up to nine storage modules with a usable capacity of 28.8 kWh can be installed per unit. The maximum configuration is eight parallel-connected towers with a total capacity of 230.4 kWh. In combination with the Kostal Plenticore G3, the system's application range extends from residential to small commercial systems.
Product advantages:
• Screw-in and cable-free stacking design
• Total capacity up to 230.4 kWh possible
• Expandable at any time
Product features:
• Usable battery capacity: 3.2 kWh
• Storage type: High-voltage
• Nominal voltage: 64.0 V
• Expansion time frame: Unlimited
• Number of storage modules in one unit: 2–9 storage modules
• Number of units in parallel: up to 8 towers
• Cell chemistry: LFP
• Communication: RS485
• Cooling: Passive
• Protection class: IP65
• Dimensions: 190 x 610 x 240 mm (HxWxD)
• Weight: 36.4 kg

Product Details
Kostal
0162409
