Description

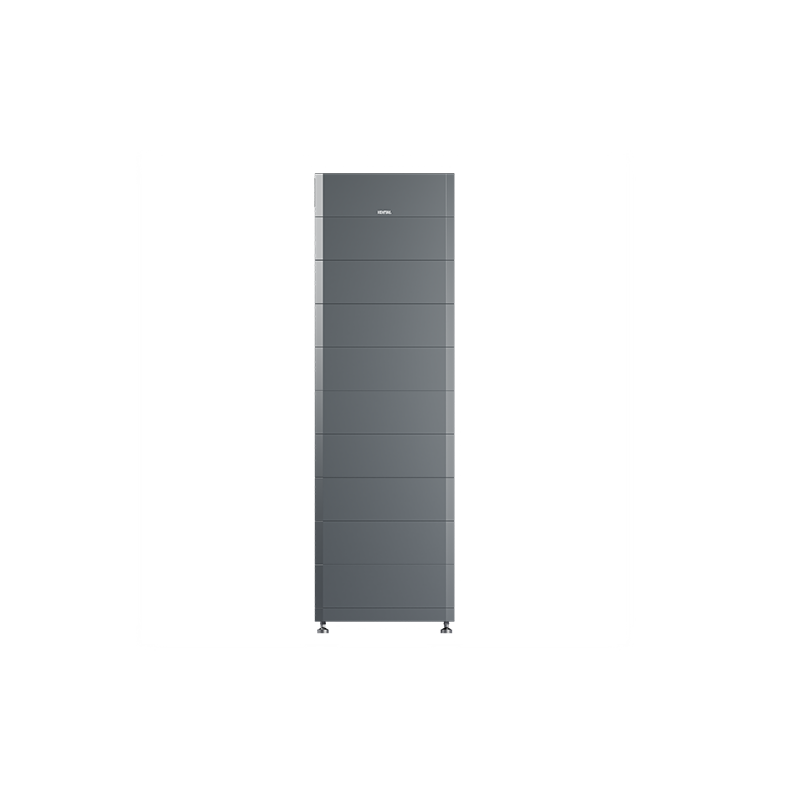

The installation of the new HELIVOR high-voltage storage system from Kostal is more than smooth thanks to its screwless and wireless stack design. With only minimal space requirements, up to 9 storage modules with 28.8 kWh of usable capacity can be implemented per unit. The maximum is 8 towers connected in parallel with a total of 230.4 kWh. In combination with the Kostal Plenticore G3, the field of application ranges from residential to small commercial systems.
Product advantages:
? Screw-free and wireless stack design
? Total capacity of up to 230.4 kWh possible
? Expandable at any time
? Certified battery safety according to VDE 2510-50
Product features Storage:
? Usable battery capacity: 28.8 kWh
? Storage type: High voltage
? Nominal voltage: 576 V
? Time window extension: unlimited
? Number of storage modules in one unit: 2 ? 9 storage modules
? Number of units in parallel: up to 8 towers
? Cell chemistry: LFP
? Communication: CAN 2.0A, RS485, Ethernet, WiFi
? Cooling: passive
? Protection class: IP65
? Dimensions: 2000 x 450 x 296 mm (HxWxD)
? Weight: BMS + base: 30.0 kg, 9 x storage units, 36.0 kg each
Scope of delivery:
? 1 x Kostal HELIVOR HV Battery Management System (item 0162408)
? 9 x Kostal HELIVOR HV 3.2 storage module (item 0162409)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods Weight (net) (kg) | 198.000 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
