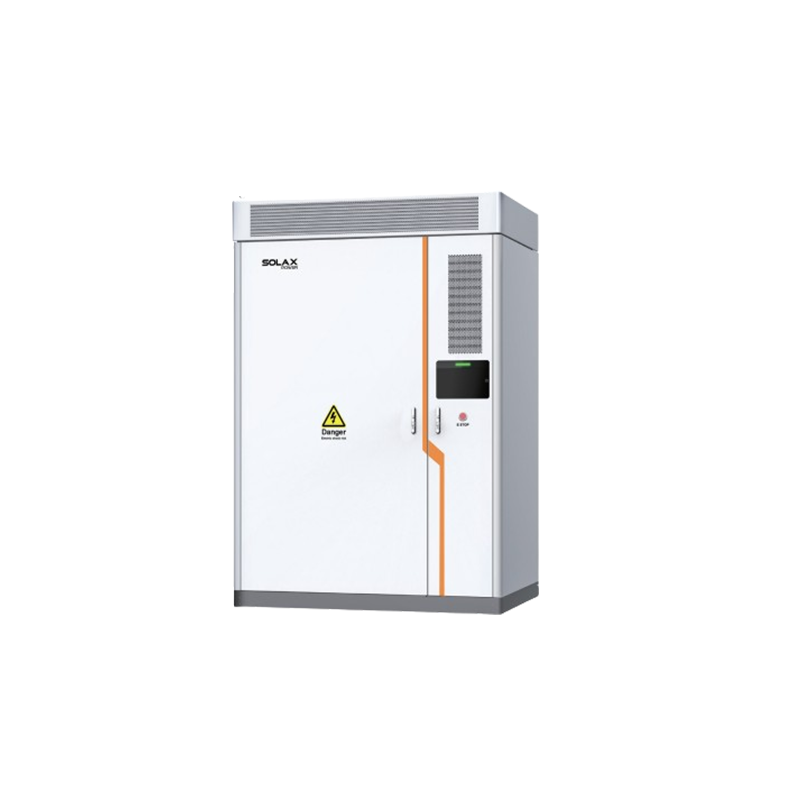

ESS-Trene, intelligent air cooling
  • ESS-Trene, intelligent air cooling

ESS-Trene, intelligent air cooling

0158495
SolaX Power
ESS-Trene, intelligent air cooling
€78,085.06
€78,085.06 €64,533.11 €78,085.06 €64,533.11
VAT included VAT included VAT excluded VAT included VAT excluded
€64,533.11 VAT excluded
€78,085.06 VAT included
€13,551.95 Tax
€64,533.11 VAT excluded
€13,551.95 Tax
€78,085.06 VAT included
Quantity
Last items in stock
2 Items

Ask about the product on WhatsApp
Description

Product information "ESS-Trene, intelligent air cooling"

The manufacturer's specifications regarding installation, assembly, and location must be observed.

Due to the high total weight due to complete pre-assembly, suitable vehicles must be used for unloading and transport.

The M3-40 Smart Meter, including the appropriate instrument transformers, must also be added.

There is no E6 + E7 release form (control of external NS protection) for the ESS-Trene in accordance with VDE-AR-N 4105. The NS protection, including the disconnection point, must therefore be implemented entirely on-site.

Please check the need for an external EMS based on your project-specific key data and planned components, for example, to provide the required control interfaces. This may need to be added separately. We would be happy to assist you in selecting suitable providers.
For larger commercial facilities, Solax offers a new and highly attractive solution with the ESS-Trene. With 100 kW charging capacity and 215 kWh storage capacity, the system is the ideal system component for these sizes. Widely cascadable, the application possibilities extend into the MWh range. The proprietary EMS1000 Pro supports a wide variety of scenarios, from peak shaving and demand response to virtual power plants (VPPs) and frequency control.

Product advantages:
? Ideal for a wide range of C&I applications
? Multiple cascadable configurations
? 4-stage fire protection concept
? Integrated EMS1000 Pro logger

Product features:
? AC power: 100.0 kW
? AC connection: 400 V, 3-phase
? Surge protection: AC Type 2
? Battery capacity (usable): 193.5 kWh
? Cell chemistry: LFP
? Communication: 8 x RS485, 3 x CAN, 4G (including antenna), 4 x Ethernet
? Interfaces: 18 x DI, 8 x DO
? Protection class: IP55
? Cooling: Intelligent air cooling
? Dimensions: 2420 x 1680 x 1200 mm (HxWxD)
? Weight: Total: 2800.0 kg (battery module 115 kg each)

Conclusion:
The ideal system component due to its performance and capacity for many C&I applications.

Wichtige technische Daten

Dangerous goods transportation category 2
Tunnel restriction code (E)
Classification code M4
Dangerous goods Weight (net) (kg) 1296.000
Dangerous goods class 9
Dangerous goods description LITHIUM ION BATTERIES CONTAINED IN EQUIPMENT
Dangerous goods packaging type 4G
UN No. 3480
