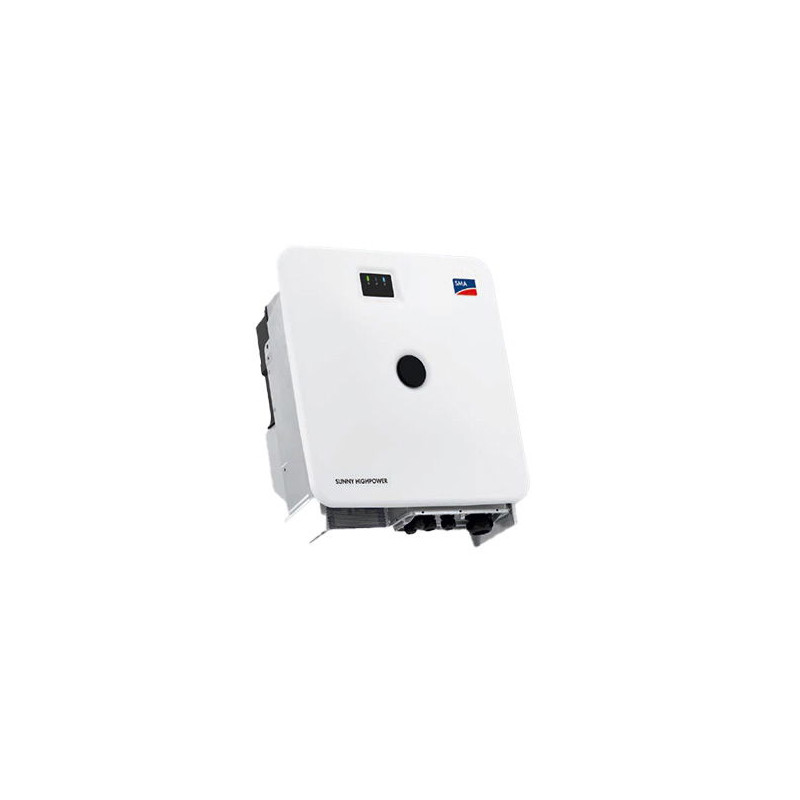

Sunny Highpower PEAK3 150-21, 150 kW
  • Sunny Highpower PEAK3 150-21, 150 kW

Sunny Highpower PEAK3 150-21, 150 kW

0152462
SMA
Sunny Highpower PEAK3 150-21, 150 kW
€11,817.81
€11,817.81 €9,766.78 €11,817.81 €9,766.78
VAT included VAT included VAT excluded VAT included VAT excluded
€9,766.78 VAT excluded
€11,817.81 VAT included
€2,051.02 Tax
€9,766.78 VAT excluded
€2,051.02 Tax
€11,817.81 VAT included
Quantity

Ask about the product on WhatsApp
Description
This inverter requires a grid voltage of 600 V.
The Sunny Highpower PEAK3 series from SMA is the central component for large PV power plants. System voltages up to 1500 V DC and the use of customer-specific generator connection boxes enable efficient project calculation. Thanks to high-quality system components, there is no derating up to a temperature of 50C.

Product advantages:
? Up to 200% DC/AC ratio possible
? AC+DC type 2 overvoltage protection

Product features:
? AC rated power: 150.0 kW
? Feed-in phases: 3
? AC mains voltage: 600 V
? Number of MPPT: 1
? Max. DC input voltage: 1500 V
? DC overvoltage protection: Type 2
? AC overvoltage protection: Type 2
? DC connector: Bolt terminal for cable lug up to 300 mm?
? Interfaces: 2 x Ethernet
? Protection class: IP65
? Cooling: active
? Dimensions: 830 x 770 x 462 mm (H x W x D)
? Weight: 99.0 kg
Product Details
SMA
0152462
