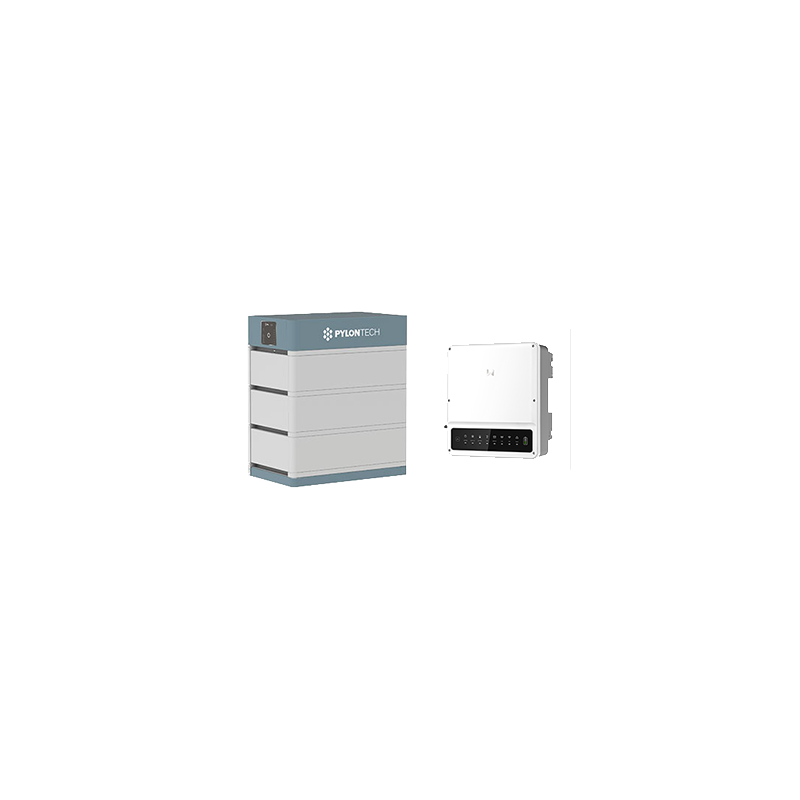

Pylontech Force H1 10.1 + GW5000N-EH
Pylontech Force H1 10.1 + GW5000N-EH
Description
Hazardous material according to UN 3480 / Transport hazard class 9 / Packing Group II
In addition to a DC input current of 16 amps, the EH series also boasts a genuine, uninterruptible UPS function for the backup connection. This means that even sensitive consumers can be operated carefree in any mains situation. Combined with the Force-H1 high-voltage series from Pylontech, this is a powerful system for home use.
Product advantages:
? Emergency power with UPS function < 10ms
? 16 A input current per MPPT
? Energy meter included with inverter
? Storage can be retrofitted at any time up to 23.6 kWh
Product features System:
? AC power: 5.0* kW
? Number of MPPT: 2
? DC overvoltage protection: Type 2
? AC connection: 230 V, 1-phase
? Communication: Wifi, Ethernet (optional), RS485, CAN
? Protection class: IP65
? Cooling: passive
? Dimensions: 354 x 433 x 147 mm (W x H x D)
? Weight: 17.0 kg
*limited to 4.6 kVA in accordance with VDE-AR-N 4105
Product features Storage:
? Battery capacity (usable): 10.1 kWh
? Extension window: up to 2 years
? Cell chemistry: LFP
? Nominal voltage: 144.0 V
? Protection class: IP55
? Dimensions: 700 x 600 x 380 mm (H x W x D)
? Weight: BMS + base: 14.0 kg, 3 x storage units 35.0 kg each
Conclusion:
Good manufacturer - good combination.
Scope of delivery:
? 1 x GW5000N-EH hybrid inverter, incl. meter (item 0152932)
? 1 x Pylontech Battery Management System (item 0152522)
? 3 x Pylontech Force-H1 storage module (item 0150255)
Key technical data
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (AND) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 136.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| A No. | 3480 |
