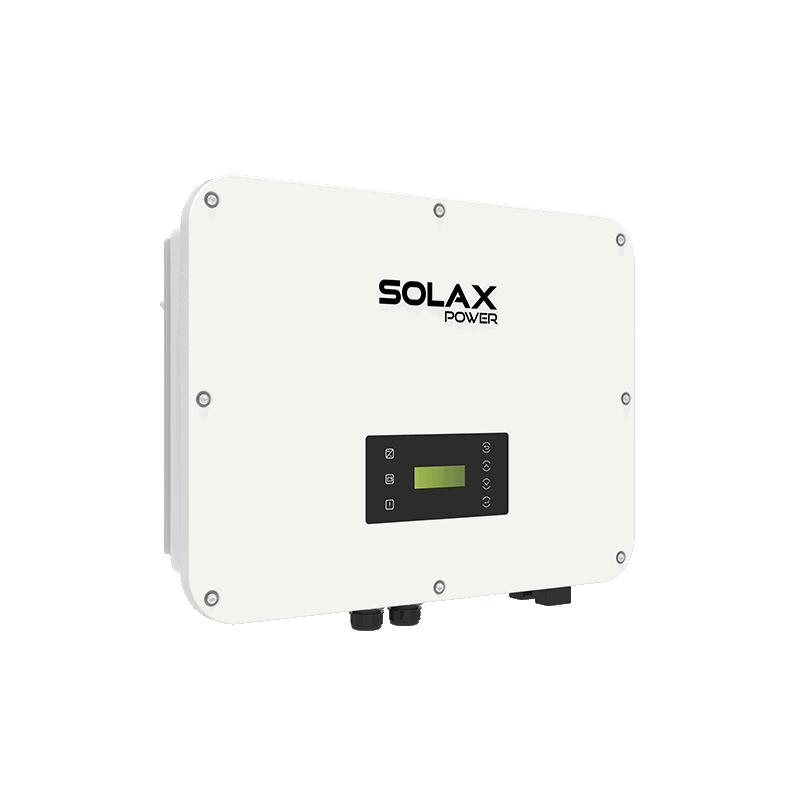

X3-ULTRA-30K
  • X3-ULTRA-30K

X3-ULTRA-30K

0155101
SolaX Power
X3-ULTRA-30K
€3,701.80
€3,701.80 €3,059.34 €3,701.80 €3,059.34
VAT included VAT included VAT excluded VAT included VAT excluded
€3,059.34 VAT excluded
€3,701.80 VAT included
€642.46 Tax
€3,059.34 VAT excluded
€642.46 Tax
€3,701.80 VAT included
Quantity
13 Items

Ask about the product on WhatsApp
Description
The X3-Ultra hybrids are compatible with the following storages: T-BAT H 3.0, T-BAT H 5.8, T-BAT-SYS-HV-S 2.5 and 3.6.
Solax offers the new X3-Ultra series for XL home systems or XS commercial systems. With performance classes from 15 to 30 kW, high DC input currents and 2 independent battery connections, the high-voltage hybrids are a real statement. Integrated surge protection, AFCI arc detection and interfaces for radio ripple control receivers etc. leave little to be desired. Like the ?small. X3 series, the Ultras can also be operated as true off-grid systems with a generator. As a perfect addition, there are also the new HV-S high-voltage storage series with up to 43.1 kWh usable capacity. Thanks to the 2 separate storage connections on the Ultra, up to 86.2 kWh is possible.


Product advantages:
? Ideal for big-residential and small-commercial applications
? Emergency power with UPS function < 10ms
? High input current per MPPT
? 2 independent battery connections
? Integrated arc detection AFCI
? Backup outputs can be cascaded *

Product features:
? AC power: 30.0 kW
? Number of MPPT: 3
? DC input current: 36A per MPPT
? Battery connections: 2
? Max. charging current storage: 30 A each
? AC connection: 3-phase
? Communication: Wifi, LAN (opt.), RS485
? Interfaces: 5 x DI (FRE), 2 x DO
? Protection class: IP65
? Cooling: active
? Dimensions: 696 x 526 x 240 mm (W x H x D)
? Weight: 47.0 kg

*required accessories: X3-EPS Parallelbox-II (currently only announced)
