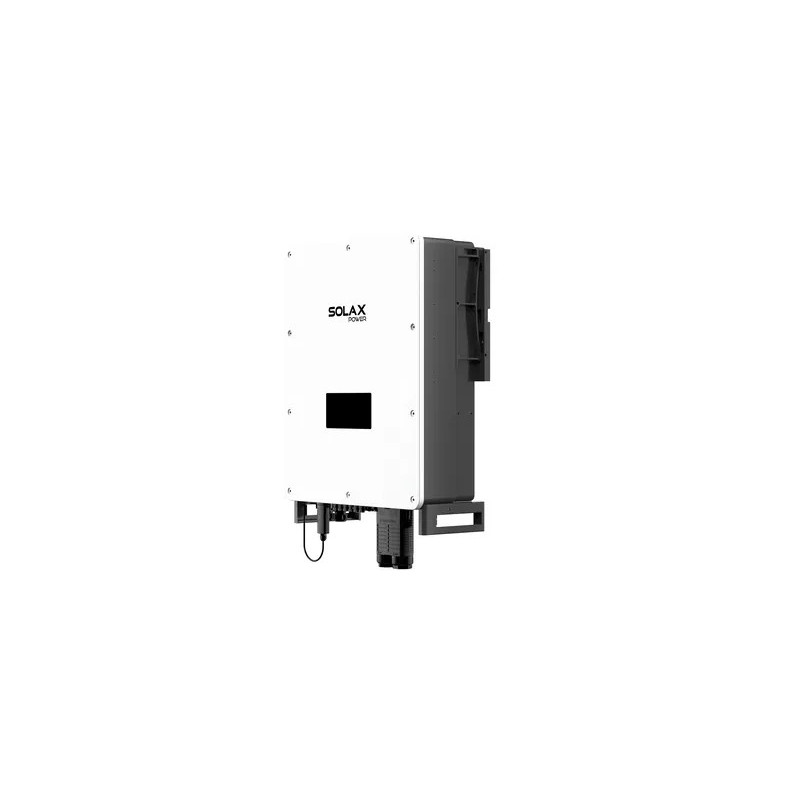

X3-Aelio-60K
  • X3-Aelio-60K

X3-Aelio-60K

0158360
SolaX Power
X3-Aelio-60K
Quantity

Ask about the product on WhatsApp
Description

The manufacturer's specifications for installation, assembly and installation location must be observed.

Certification for DE (VDE 4110) expected in August 2025.

The M3-40 smart meter and matching measuring transducers must be added.

No E6 + E7 approval form (control of external NA protection) is available for the ESS-Aelio within the scope of VDE-AR-N 4105. The NA protection, including the separation point, must therefore be completely implemented on site.

For commercial systems in the small commercial segment, Solax offers a new and highly attractive solution with the ESS-Aelio. The powerful 50/60 kW hybrid inverters can be combined with the ESS 100/200 kWh high-voltage storage cabinet or the HV-S 5.1 system. This makes them the ideal system component for systems in the small commercial segment. In addition to emergency power via the familiar EPS connection, many other application scenarios are possible, even off-grid.
Product advantages:
• Ideal for small-commercial applications
• Emergency power with UPS function < 10 ms
• High input current per MPPT
• Integrated AFCI arc detection
Product features:
• AC rated power: 60.0 kW
• Feed-in phases: 3
• Grid voltage: 400 V
• Number of MPPTs: 6
• DC input current: 40 A per MPPT
• Max. number of systems in parallel: 3
• Max. storage charging current: 160 (80 x 2) A
• Number of storage units: 2
• DC surge protection: Type 2
• AC surge protection: Type 2
• AFCI arc detection: yes
• Communication: RS485, CAN, Ethernet
• Interfaces: 5 x DI
• Protection class: IP66
• Cooling: active air cooling
• Dimensions: 696 x 526 x 240 mm (W x H x D)
• Weight: 105.0 kg
Compatible storage systems:
• Solax HV-S 5.1 (5-13 storage modules)
• Solax ESS storage cabinet with 100/200 kWh (select set item here)
