SOL-S6-EH3P-80K-K10-NV-YD-H

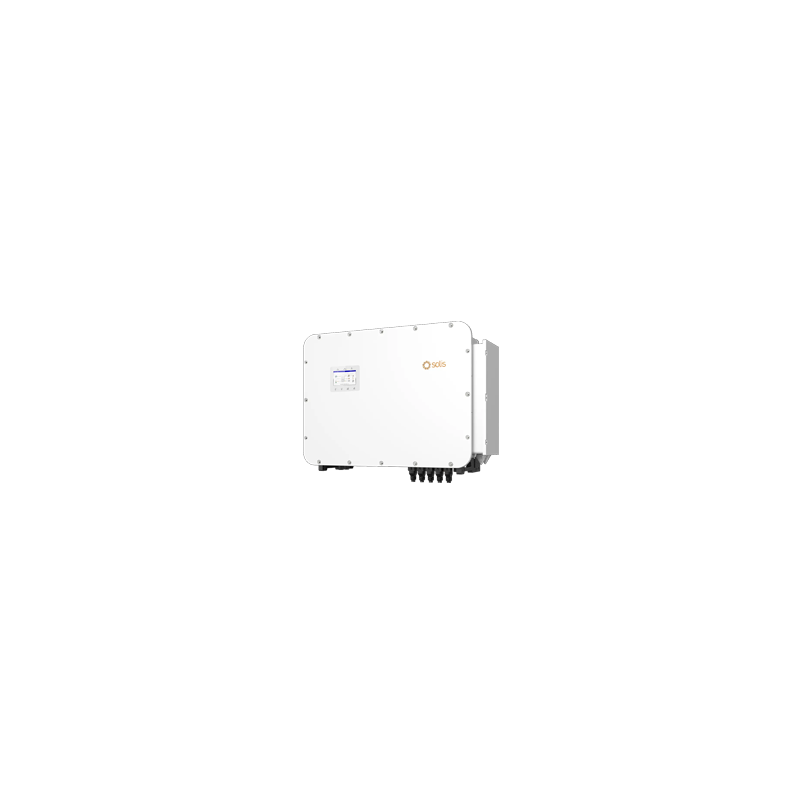

Solis S6 EH3P 80K

High-voltage three-phase energy storage solution for commercial applications. The inverter series offers a maximum charge/discharge current of 100 A + 100 A via two independently controlled battery connections and has 10 integrated MPPTs with a string current of up to 20 A - for unrivalled power output. Whether grid-tied or off-grid, the S6-EH3P(80-125)K10-NV-YD-H series supports the parallel connection of up to six devices and has a backup connection that enables a 2.0-fold overload for short periods.

8 Unique features:

Compatible with 100-340Ah battery modules Supports faster charging with battery current up to 200A Powerful backup overload capability - 160% overload Supports 2 independent battery connections for flexible configuration 7-inch large screen utilises U.S. quality components ZEITLER industrial grade components Supports max. 21A PV input current, perfect for high power PV modules Supports a wide power range of generator connections from 25kVA to 125kVA Usable PV power up to 200% rated inverter power to improve PV generation utilisation
