Description
Alternatively to the self-assembly of the Com connection between inverter and Home Storage battery, the Com cable set (item 0155275) can also be used.
If required, the base unit for floor mounting of the storage system must be ordered separately for each tower (item 0154628). Accessory for wall mounting is included.
The fist in the eye, like pot and lid - there are a few sayings that describe an ideal match. In our PV world, SMA is now adding "Smart Energy + Home Storage" to this list. Because the combination of the 1- and 3-phase hybrid series with the new high-voltage battery is a perfect match - a precision landing. The compact power packs shine with an integrated BMS and up to 8000 charging cycles for quick installation and intensive use. With up to 4 battery modules of 3.2 kWh each, a total of 13.12 kWh of usable storage power is available for every energy situation. In addition, there are the 3 MPP trackers and the low input voltage of only 60 V DC of the new Sunny Boy SE series - ultra flexible.
Product advantages:
? Low DC input voltage enables ultra short strings
? 3 MPP trackers for maximum flexibility
? 1A networking through a uniform manufacturer
? 8000 charging cycles and 10-year warranty after registering the storage
Product features system:
? AC power: 4.0 kW
? Number of MPPT: 3
? Input Voltage: 60-480V DC
? AC connection: 1-phase
? Communication: WLAN, Ethernet, CAN, RS485
? Protection class: IP65
? Cooling: passive
? Weight: 17.5 kg
? Dimensions: 500 x 586 x 236 mm (W x H x D)
Product features storage:
? Capacity (usable): 6.56 / kWh
? Output voltage: 192V
? Max. charge/discharge current: 36 A
? Cell chemistry: LFP (lithium iron phosphate)
? Time window extension: up to 2 years
? Place of installation: indoor / outdoor
? Mounting: wall (included), floor (to be ordered separately)
? Protection class: IP65
? Cooling: passive
? Dimensions: 610 x 969 x 215 mm (W x H x D)
? Total weight: 76.0 kg
Conclusion:
"Everything from a single source" plus "SMA" now stands for a complete range and reliable quality.

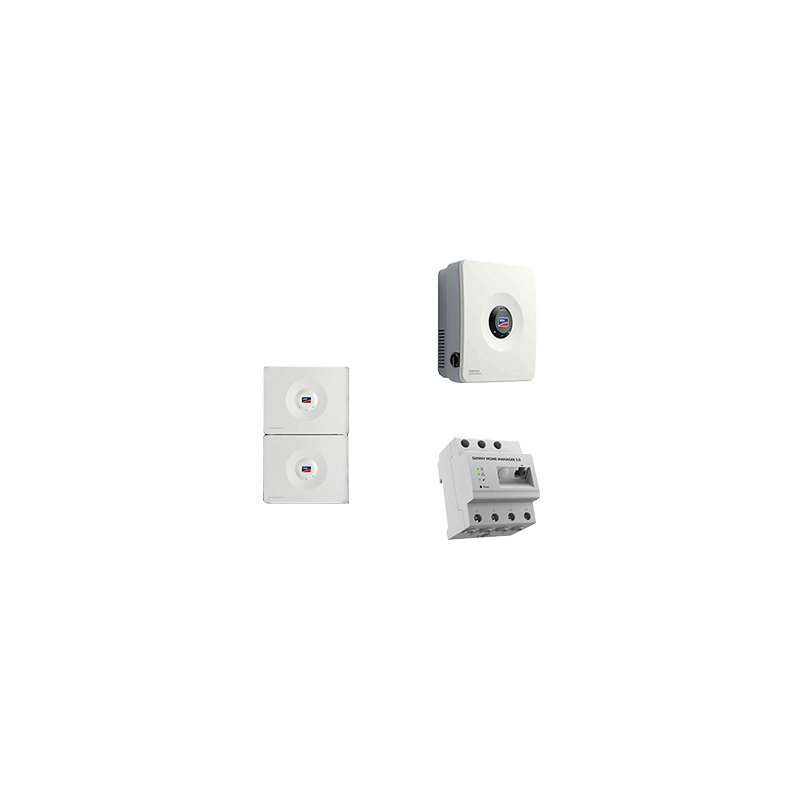

Scope of delivery:
? 1 x SMA Sunny Boy SE 4.0 (item 0154466)
? 1 x SMA Home Manager 2.0 (item 0126650)
? 2 x SMA Home Storage (item 0154631)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods Weight (net) (kg) | 76.000 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
