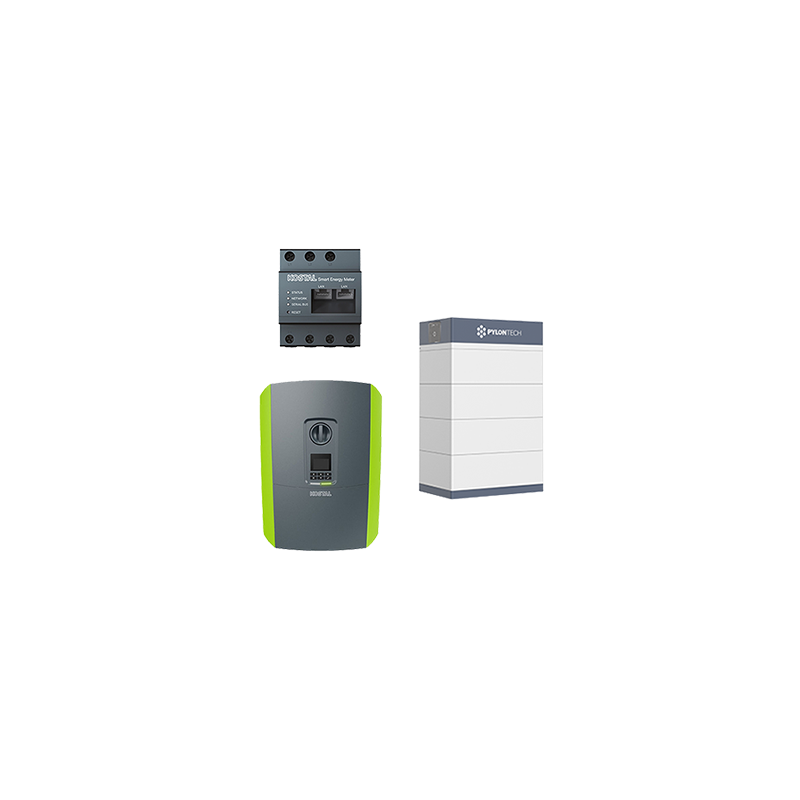

Force H3 19.5 + Plenticore Plus 10 G2
Force H3 19.5 + Plenticore Plus 10 G2
Description
The PLENTICOINs required for power and function activation must be ordered separately.
Compact, reliable, and powerful - this description applies to all components of this high-voltage storage package. The proven hybrid inverters of the Kostal Plenticore Plus G2 series are combined with the new Force-H3 storage units from Pylontech. With their proven and efficient stackable design, modeled on the H1 + H2 series, these powerhouses always find a place. With their expandable battery modules with up to 34.01 kWh of usable capacity, they are the ideal complement to the Plenticores and are ideally suited for applications in the home and small commercial sectors.
Product advantages:
? 13 A input current per MPPT
? Easy network connection between units as a daisy chain
? Storage with efficient, compact stackable design
Product features System:
? AC rated power: 10 kW
? Feed-in phases: 3
? AC mains voltage: 400 V
? Number of MPPT: 2 + 1 (PV / Bat)
? Max. DC input voltage: 1000 V
? DC connector type: Sunclix
? Communication: WiFi, 2 x LAN, RS485, 4 x Dig-In (FRE), 4 x Dig-Out
? Protection class: IP65
? Cooling: active
? Dimensions: 563 x 405 x 233 mm (H x W x D)
? Weight: 17.86 kg
Product features Storage:
? Battery capacity (usable): 19.48 kWh
? Depth of discharge (DoD): 95%
? Time window extension: up to 2 years
? Cell chemistry: LFP
? Nominal voltage: 409.6 V
? Protection class: IP55
? Dimensions: 870 x 540 x 350 mm (H x W x D)
? Weight: BMS + base: 14.0 kg, 4 x storage units, 39.0 kg each
Activation using PLENTICOINs:
Activation of storage function: 1 PLENTICOIN
Activation of Wallbox Smart Features: 2 PLENTICOINs
Scope of delivery:
? 1 x Kostal Plenticore Plus 10 G2 hybrid inverter (item 0152315)
? 1 x Pylontech H3 BMS (item 0159943)
? 4 x Pylontech Force-H3 storage module (item 0154119)
? 1 x Kostal KSEM G2 smart meter (item 0151118)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods Weight (net) (kg) | 156.000 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
