BYD HVM+ 11.0 + PLENTICORE MP M G3

0162254
BYD HVM+ 11.0 + PLENTICORE MP M G3
€7,425.58
€7,425.58 €6,136.85 €7,425.58 €6,136.85
VAT included VAT included VAT excluded VAT included VAT excluded
€6,136.85 VAT excluded
€7,425.58 VAT included
€1,288.74 Tax
€6,136.85 VAT excluded
€1,288.74 Tax
€7,425.58 VAT included
Quantity
20 Items

Ask about the product on WhatsApp
Description

Product information "BYD HVM + 11.0 + Plenticore MP M G3"

The 3 Plenticins that can be activated for activating the memory function must be ordered separately.
The combination with components of the HVS predecessor series is not ease.
For commissioning, the new BYD ENERGY APPT is a current firmware (AB V1.28.0) Required.
The included RJ45 closing plug of the data bus must still be made ready for operation. For this purpose, between the pins 1 + 6 (view from above on the flat plug side with the pin contact surfaces, cable detection downwards, pins from left to right ascending and pressing pins from left to right) to use and pressed. An actual resistance is not consecutively.

HVS + / HVM + and Kostal: Released by the manufacturers on both sides

This station wagon brings momentum into the booth. The flexible 1-phase Kostal Plenticore MP G3 series with the in-house Plenticoin currency and the new BYD HVM + high-voltage storage. In the inverters with the device variants S and M can be activated by means of plenticins with plenticins with power classes, memory usage and the intelligent connection of the EV charger. At any time. The new HVM * series of BYD received an improved BCU to the proven properties and corner data. This can be flexibly used for the memory modules of HVB, HVS + and HVM + series. The new automatic SOC balancing optimizer makes the manual adjustment of the loading stand with initial installation and extension-The-Crafted BCU connection management with connectors on the performance and communication level saves additional valuable time during installation.

Produktvorteile:
? Activate performance and functions as needed using Plenticoins
? 17 A input current per mpt
? Full backup with external switching device
? Automatic Soc Balancing with initial installation or extension
? Faster cable installation by connector

Product features System:
? AC-based power: 5.0 * kW
? AC service extension Level 6.0 kW
? AC service extension Level 2: 7.0 kW
? AC connection: 230 V, 1-phase
? Number of mppt: 2 + 1 (PV / BAT)
? MPPT input voltage: 75-900 V
? ? Version protection: DC type 2 optional to be supplemented
? Communication: WiFi, 2 x LAN, RS485, 4 x Dig-in (FRE), 4 x Dig-Out
? Protection class: IP65
? Celebration: active
? Dimensions: 561 x 409 x 237 mm (H x W x D)
? Weight: 22.3 kg

* gem ?? VDE-AR-N 4105 in DE to 4.6 kVA throttled

Product features Memory:
? Battery capacity (usable): 11,04 kWh
? Storage Type: Tall Voltage
? Rated voltage: 204.8 V
? Time window extension: unlimited
? Number of memory modules in one unit: 3 to 8
? Number of units parallel: 3
? Cell chemistry: LFP
? COM connections: RJ45
? Bat connections: MC4
? Protection class: IP55
? Dimensions: 1227 x 610 x 282 mm (HxWxD)
? Weight: 180.2 kg

Adjustments without Plenticoins:
The service expansion for version S and the basic power for version M are slightly selectable to be selectable z.B. Local specifications for mains connection to meet (version M with 4.6 instead of 5.0 kVA according to the VDE-AR-N 4105 in DE).

Activities using Plenticoins:
Return to a performance class (1 stage) within the device series S / M: 1 Plenticoin
Retention to the maximum power (2 steps) within the device series M: 1 + 1 Plenticoin
Activation of the memory function: 2 Plenticoins
Activation Comfort Function (Upload Wallbox ,? 14a, etc.): 2 Plenticoins

Delivery:

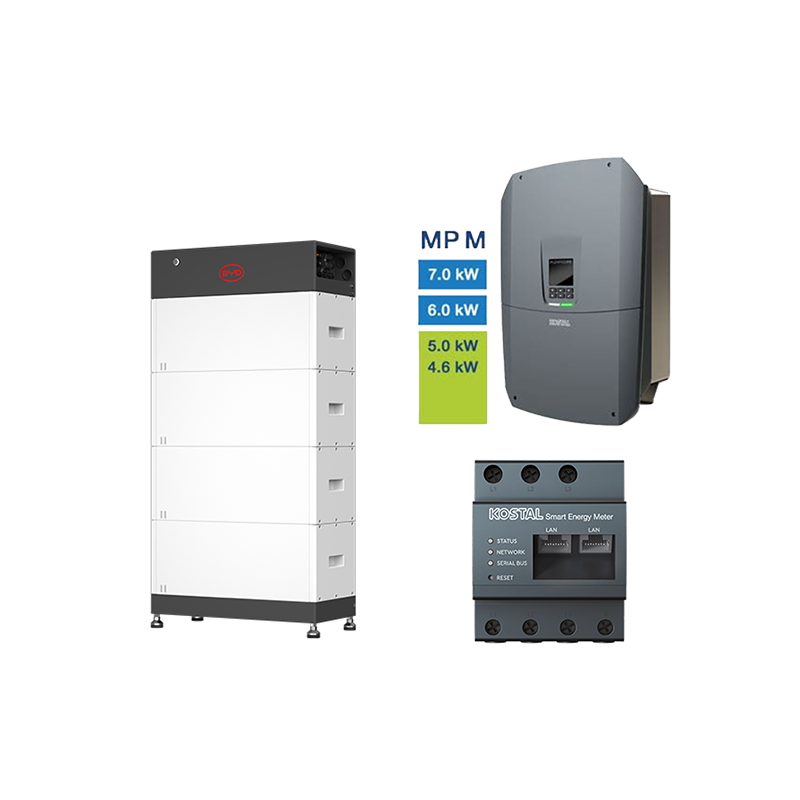

? 1 x Kostal Plenticore MP M G3 Hybrid-WR (Article 0159083)
? 1 x BYD B-BOX HV + BCU + BASE (Article 0161507)
? 4 x BYD HVM + memory module (Article 0161505)
? 1 x Kostal KSEM G2 Smart Meter (Article 0151118)

Important technical data

Dangerous Goods Weight (net) (kg) 165.200
Dangerous goods transport category 2
Dangerous goods description Lithium-ion batteries
Tunnelbeschränkungscode (I)
Klassifizierungscode M4
Dangerous goods class 9
Dangerous goods packaging 4g
Dangerous goods UN no. 3480
