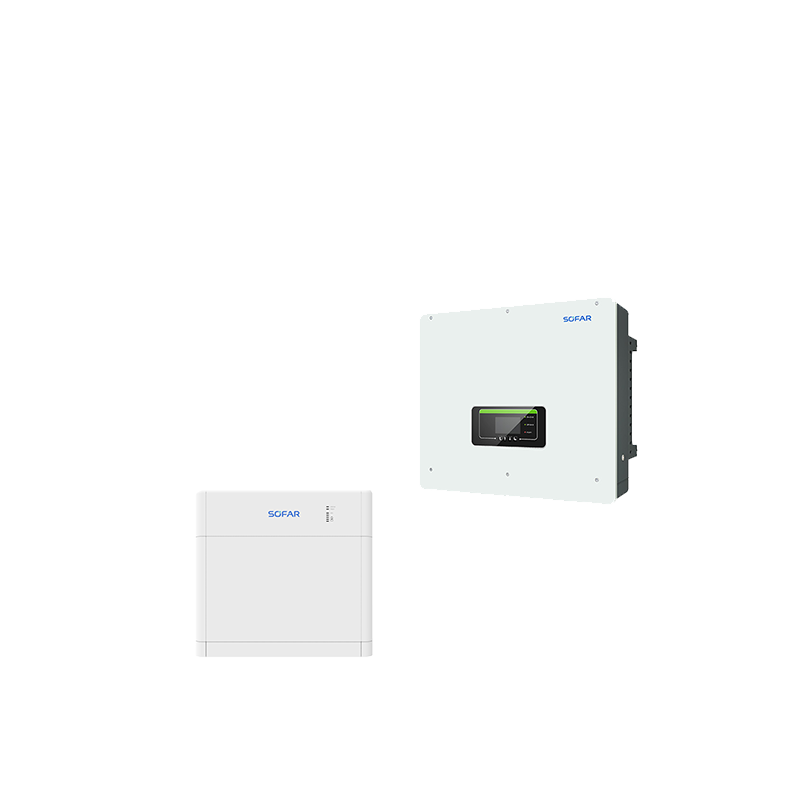

BTS E5 -D5 + HYD 10 KTL-3PH Hybrid

Name: BTS E5 -D5 + HYD 10 KTL-3PH Hybrid
Brand: Combishop
SKU: 0157492
Price: 3805.23 EUR
Availability: InStock

Reference 0157492

€3,805.23

€3,805.23 €3,144.82 €3,805.23 €3,144.82

VAT included VAT included VAT excluded VAT included VAT excluded

€3,144.82 VAT excluded

€3,805.23 VAT included

€660.41 Tax

€3,144.82 VAT excluded

€660.41 Tax

€3,805.23 VAT included

Quantity

In stock: 36 Items

Ask about the product on WhatsApp

Description
Custom Global tab

Description

When using more than 3 memory modules, these must be installed as a second tower. The Sofar BTS 5K Extension Kit (item 0162355) is also required.

Sofar Solar has updated the tried and tested HYD KTL-3PH series. Up to 22.5 amps of input current are now possible per string connection. This opens the door to the use of new high-performance modules, including bifacial modules. Integrated AC / DC overvoltage protection and shadow management are still standard features. A direct measuring inline meter and pre-assembled cable sets included in the scope of delivery simplify installation. Depending on the power class from 5 to 20 kW, up to 8 cascaded battery modules with a total usable capacity of 38.0 kWh are possible. The BMS installed in each battery unit maximises flexibility.

Product advantages:

? Standardised manufacturer of all components

? Up to 22.5 amps input current per string connection

? 2 x 25 A battery connections (HYD 10 - 20 only)

? Easier backup power supply thanks to built-in N/PE relay

? Modular storage system, flexibly expandable

Product features System:

? AC power: 10 kW

? AC connection: 400 V, 3-phase

? Number of MPPT: 2

? Max. Input current per string: 22.5 A

? Connection plug: MC4

? Interfaces: RS485, Wifi, Bluetooth, Ethernet, 4 x dig. In (FRE)

? Protection class: IP 65

? Cooling: active

? Dimensions: 571 x 515 x 264 mm (HxWxD)

? Weight: 37.0 kg

? Warranty: 5 years

? Included in the scope of delivery: Inline Energy Meter 80A and cable sets for storage tank and meter

Product features Storage:

? Battery capacity (usable): 4.75 kWh

? Extension time window: unlimited

? Cell chemistry: LFP

? Nominal voltage: 400 V

? Protection class: IP65

? Dimensions: 680 x 708 x 170 mm (HxWxD)

? Weight: BDU Connection Box 7.5 kg, 1 x storage unit 50.0 kg each

Conclusion:

Fresh from the start - our Sofar hybrid storage sets. With all the functions you need plus a few more. The second battery connection enables very flexible storage expansion and high charging capacities.

Scope of delivery:

? 1 x Sofar HYD 10 KTL-3PH Hybrid-WR, incl. metre (article 0157280)

? 1 x Sofar BTS 5K-BDU Connection Box (article 0153956)

? 1 x Sofar BTS 5K storage module incl. BMS (article 0157332)

Key technical data

Product Details

Reference 0157492

In stock 36 Items

You can customize it or disable in the backoffice: Modules / Module manager / Product Extra Tabs.

Sample bullet list

Regular fit has a straight cut with room to move naturally
48% polyester / 48% acrylic / 4% wool
Faux leather sleeves
Full zip
Padded

Sample numbered list

Wipe clean with a damp cloth
Color may rub off onto other materials
Do not store in wet conditions

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.


Dangerous goods transportation category	2
Dangerous goods description	LITHIUM ION BATTERIES
Tunnel restriction code	(AND)
Classification code	M4
Dangerous goods class	9
Dangerous goods packaging type	4G
Dangerous goods Weight (net) (kg)	50.000
A No.	3480
