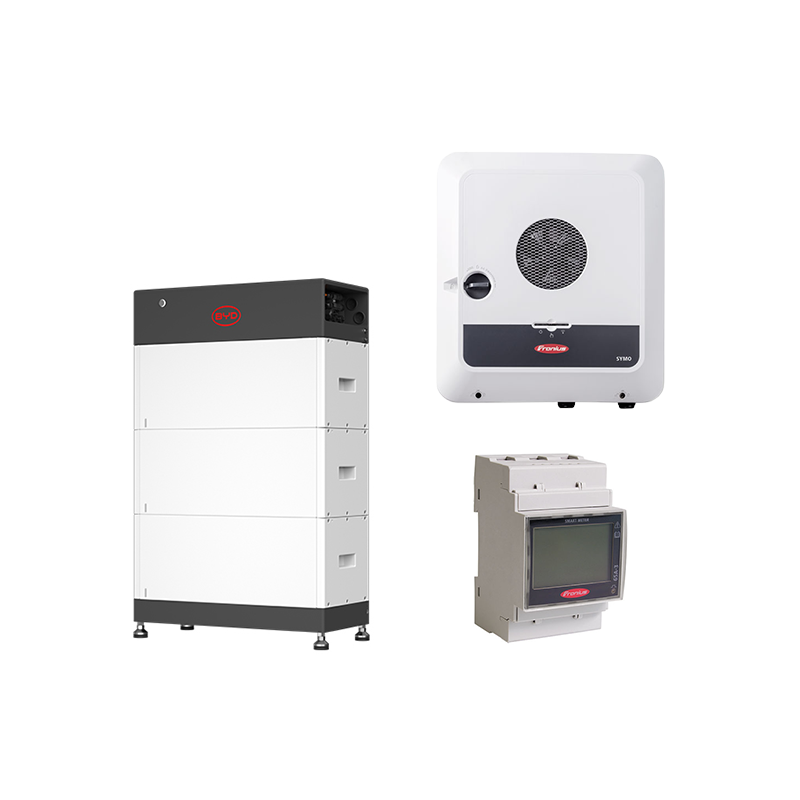

B-Box HVS+ 7.7 + Symo GEN24 8.0 Plus

The Fronius Symo GEN24 plus is a well-established product in the residential segment. Its proven technology and flexibility, along with its optional functions and features, leave little to be desired. For example, a practical emergency power outlet can be implemented via the integrated PV-Point. With an additional module, it can also be used for continuous operation and seamless switching. And if you want to keep the whole house lit during a power outage, the Fronius Backup Switch and Controller offer various options. Here, it's combined with the new BYD HVS+ storage system. The automatic SOC balancing optimizer eliminates the need for manual adjustments to the charge level during initial installation and expansion. The redesigned BCU connection management with connectors at the power and communication levels saves even more valuable installation time.

Product advantages:

? Proven and high-performance hybrid system

? Emergency power via Fronius PV-Point

? 3-phase backup power possible with Fronius Backup Switch + Controller

? Automatic SOC balancing during initial installation or storage expansion

? Storage capacity expandable indefinitely

System specifications:

? AC nominal power: 8.0 kW

? Grid connection: 3-phase

? AC grid voltage: 400 V

? Number of MPPTs: 2

? Max. DC input voltage: 1000 V

? Max. DC input current: MPPT 1 - 25.0 A, MPPT 2 - 12.5 A

? Communication: WLAN, 2 x Ethernet

? Interfaces: 2 x RS485, 6 x DI (FRE), 6 x DO

? Protection class: IP66

? Cooling: Active

? Weight: 23.4 kg

? Dimensions: 595 x 529 x 180 mm (H x W x D) T)

Product Features:

? Usable Battery Capacity: 7.68 kWh

? Storage Type: High Voltage

? Nominal Voltage: 307.2 V

? Expansion Timeframe: Unlimited

? Number of Storage Modules in One Unit: 2 to 5 Battery Modules

? Number of Units in Parallel: 3

? Cell Chemistry: LFP

? COM Ports: RJ45

? BAT Ports: MC4

? Protection Class: IP55

? Dimensions: 987 x 610 x 282 mm (H x W x D)

? Weight: 130.1 kg

Scope of Delivery:

? 1 x Fronius Symo GEN24 8.0 Plus Hybrid Inverter (Item 0132172)

? 1 x Fronius Smart Meter TS 65A-3 (Item 0151650)

? 1 x BYD B-Box HV BCU + Base (Item 0161507)

? 3 x BYD HVS+ Battery module (article 0161506)
