B-Box HVM 16.6 + STP 10.0 Smart Energy

Name: B-Box HVM 16.6 + STP 10.0 Smart Energy
Brand: BYD + SMA
SKU: 0161051
Price: 11400.98 EUR
Availability: BackOrder

Reference 0161051

Brand BYD + SMA

€11,400.98

€11,400.98 €9,422.30 €11,400.98 €9,422.30

VAT included VAT included VAT excluded VAT included VAT excluded

€9,422.30 VAT excluded

€11,400.98 VAT included

€1,978.68 Tax

€9,422.30 VAT excluded

€1,978.68 Tax

€11,400.98 VAT included

Quantity

Ask about the product on WhatsApp

Description
Custom Global tab

Description

The RJ45 termination plug for the data bus included in the scope of delivery must be finished on site. To do this, insert a wire bridge between pins 1 + 6 (viewed from above on the flat side of the plug with the pin contact surfaces, cable entry at the bottom, pins ascending from left to right) and crimp it. No actual resistor is required.

This high-class storage package combines SMA's 3-phase Smart Energy Hybrid inverters with BYD's HVM high-voltage storage systems. The hybrids, which are available in four performance classes, feature a full range of equipment from surge protection to interfaces. Experience has shown that the visualization in the SMA Sunny Portal is of the highest standard. The HVM series storage systems are also an integral part of the PV storage world and have proven themselves in countless systems over many years. Now with even faster installation thanks to the new BCU 2.0.

Product advantages:

? Well-known and proven manufacturers

? Integrated AC + DC type 2 surge protection

? Storage can be expanded indefinitely

Product features System:

? AC power: 10.0 kW

? Number of MPPT: 2

? Input voltage: 280 - 800 V DC

? AC connection: 3-phase

? AC/DC surge protection: type 2 each

? Topology: transformerless

? Communication: WLAN, Ethernet, CAN

? Interfaces: 5 x DI (FRE), 1 x DO

? Protection class: IP65

? Cooling: passive

? Weight: 30.0 kg

? Dimensions: 500 x 598 x 173 mm (W x H x D)

Product features Storage:

? Battery capacity (usable): 16.56 kWh

? Storage type: high voltage

? Nominal voltage: 307.2 V

? Time window extension: unlimited

? Number of storage modules in one unit: 4 to 8

? Number of units in parallel: up to 3

? Cell chemistry: LFP

? Communication: CAN, RS485

? COM connections: RJ45

? BAT connections: MC4

? Cooling: passive

? Protection class: IP55

? Dimensions: 1694 x 585 x 298 mm (H x W x D)

? Weight: 243.0 kg

Conclusion:

BYD and SMA - a combinaton you can't go wrong with. Proven and reliable.

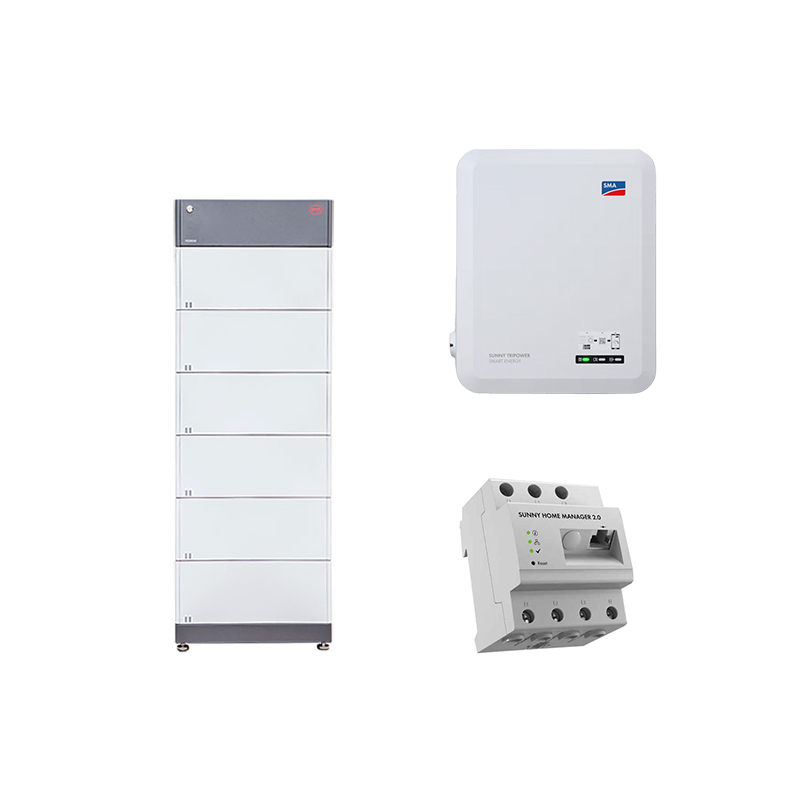

Scope of delivery:

? 1 x SMA Sunny Tripower SE 10.0 (item 0150370)

? 1 x SMA Home Manager 2.0 (item 0126650)

? 1 x BYD B-Box Premium HV BCU + Base 2.0 (item 0159471)

? 6 x BYD HVM storage module (item 0131400)
