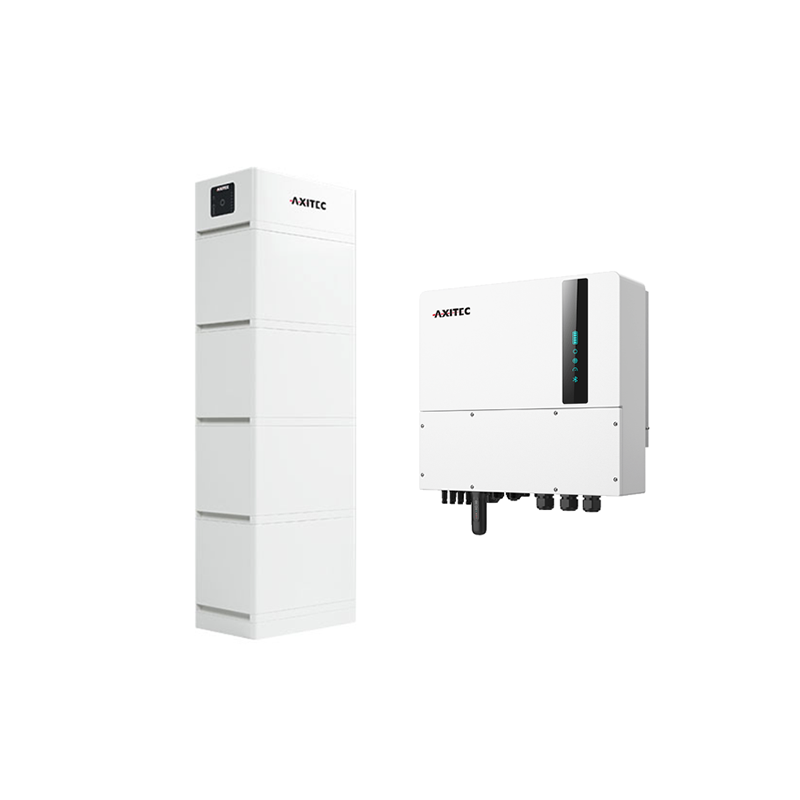

AXIstorage Li SV2 13.5 + AXIhycon 15H
  • AXIstorage Li SV2 13.5 + AXIhycon 15H

AXIstorage Li SV2 13.5 + AXIhycon 15H

0158145
AXIstorage Li SV2 13.5 + AXIhycon 15H
€7,317.85
€7,317.85 €6,047.81 €7,317.85 €6,047.81
VAT included VAT included VAT excluded VAT included VAT excluded
€6,047.81 VAT excluded
€7,317.85 VAT included
€1,270.04 Tax
€6,047.81 VAT excluded
€1,270.04 Tax
€7,317.85 VAT included
Quantity
13 Items

Ask about the product on WhatsApp
Description

Product Information "Axistorage Li Sv2 13.5 + Axihycon 15h"

UN 3480 lithium-ion batteries, 9, (e)
Maleration category 2
Axitec from head to foot? ? In our case rather from roof to basement. AxiTec now completes your quality chain in the middle power segment of the Axihycon Hybrid inverter series. Natally compatible with the in-house high-voltage stores Axistorage Li SV1 and SV2. Up to 16 amps input current per mpp tracker as well as integrated arc also and-Surveillance protection type 2 leave little wasness open. Also a backup function on UPS Level brings more pluses.

Produktvorteile:
? Up to 20a DC input current
? 4 MMP Tracker
? Integrated AFCI and DC-Version Protection Type 2
? Backup with UPS level

Product features System:
? AC Power: 15.0 kW
? AC connection: 3-phase
? Number of mppt: 4
? Fans per MPPT: 1
? Input current: 20 a per mpt
? DC connection: MC4
? Communication: WLAN (opt.), Ethernet, CAN, RS485
? Protection class: IP66
? Celebration: passive
? Weight: 32.6 kg
? Dimensions: 563 x 546 x 235 mm (W x H x D)
? Energy meter included in inverters

Product features Memory:
? Battery capacity (usable): 13.5 kWh
? Time window extension: 5 years
? Cell chemistry: LFP
? Rated voltage: 384 V
? Protection class: IP55
? Dimensions: 1415 x 450 x 300 mm (HxWxD)
? Weight: BCU 21.0 kg, 4 x memory each 38.0 kg

Conclusion:
The trend-Everything from one source-is now available at AxiTec. Quality of roof to cellar.

Delivery:
? 1 x AxiHycon 15h Hybrid-WR, incl. Meter (Article 0156899)
? 1 x Axitec Axistor Li SV2 BCU (Article 0152359)
? 4 x Axitec AxistorA Li SV2 memory module (Article 0150761)

Important technical data

Dangerous Goods Weight (net) (kg) 140.000
Dangerous goods transport category 2
Dangerous goods description Lithium-ion batteries
Tunnelbeschränkungscode (I)
Klassifizierungscode M4
Dangerous goods class 9
Dangerous goods packaging 4g
Dangerous goods UN no. 3480
