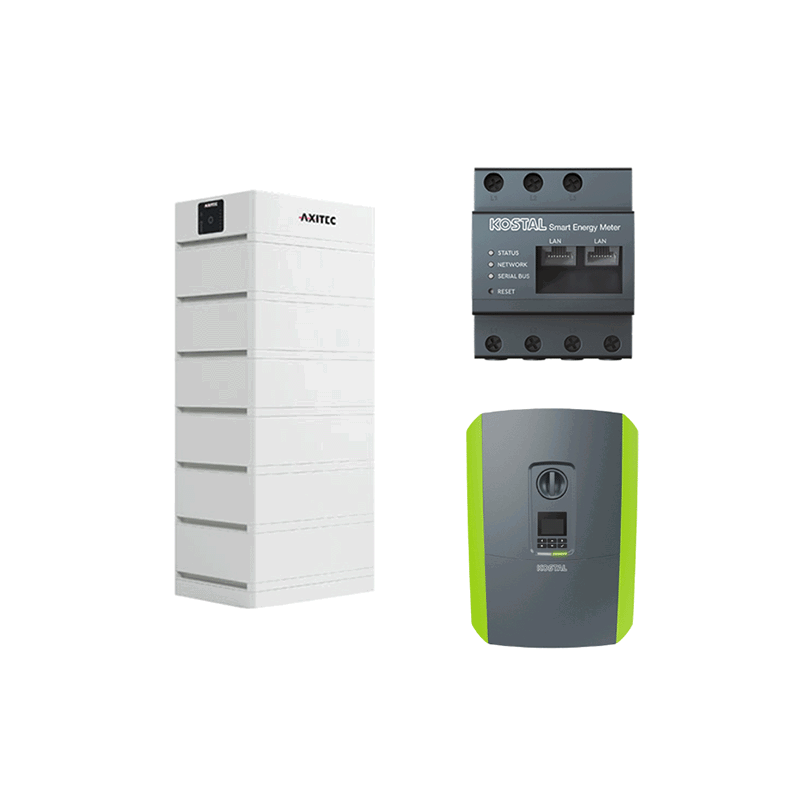

AXIstorage Li SV1 20.2 + Plenticore Plus 10 G2
AXIstorage Li SV1 20.2 + Plenticore Plus 10 G2
Description
The PLENTICOINs required for power and function activation must be ordered separately.
Two old hands meet - instead of a fairy tale, we start just the same with a top storage combination: the Kostal Plenticore Plus G2 and Axitex AXIstorage Li SV1. Proven inverter technology with fresh functions meets compact and powerful storage. Quickly and safely installed with certification according to VDE 2510-50.
Product benefits:
? Powerful storage package
? Easy network connection to each other as daisy-chain
? Fast and secure storage installation and expansion
? Certified safety according to VDE 2510-50
Product features System:
? AC power: 10.0 kW
? Number of MPPT: 2 + 1 (PV / Bat)
? DC input current: 13 A per MPPT
? AC connection: 3-phase
? Communication: Wifi, 2 x LAN, RS485, 4 x Dig-In (FRE), 4 x Dig-Out
? Protection class: IP65
? Cooling: active
? Weight: 21.6 kg
Product features Storage:
? Battery capacity (usable): 20.2 kWh
? Time window extension: 5 years
? Cell chemistry: LFP
? Rated voltage: 288 V
? Protection class: IP55
? Dimensions: 1210 x 600 x 380 mm (H x W x D)
? Weight: BMS 14.0 kg, 6 x storage 36.0 kg each
Conclusion:
This combination of 2 old hands from the inverter and storage sector can be installed with the best conscience.
Plenticore G3 series:
Increase by one performance class (1 level) within the S / M / L :1 PLENTICOIN appliance series
Increase to maximum power (2 levels) within the S / M / L appliance series: 1+1 PLENTICOIN
Activation of the battery function: 3 PLENTICOINS
Scope of delivery:
? 1 x Kostal Plenticore Plus 10 G2 hybrid inverter (item 0152315)
? 1 x AXIstorage Li SV1 BMS (item 0152358)
? 6 x AXIstorage Li SV1 Energy-Pack (item 0150754)
? 1 x Kostal KSEM G2 Smart Meter (item 0151118)
Key technical data
| Dangerous goods Weight (net) (kg) | 216.000 |
|---|---|
| Dangerous goods transportation category | 2 |
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (AND) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods packaging type | 4G |
| A No. | 3480 |
