Power Optimizer M600-M (with monitoring)
  • Power Optimizer M600-M (with monitoring)

Power Optimizer M600-M (with monitoring)

0158104
BRC Solar
Power Optimizer M600-M (with monitoring)
€54.39
€54.39 €44.95 €54.39 €44.95
VAT included VAT included VAT excluded VAT included VAT excluded
€44.95 VAT excluded
€54.39 VAT included
€9.44 Tax
€44.95 VAT excluded
€9.44 Tax
€54.39 VAT included
Quantity

Ask about the product on WhatsApp
Description
Compatibility with the inverter must be checked on site.
The certified/approved inverters can be found on the BRC homepage under compatibility certificates:

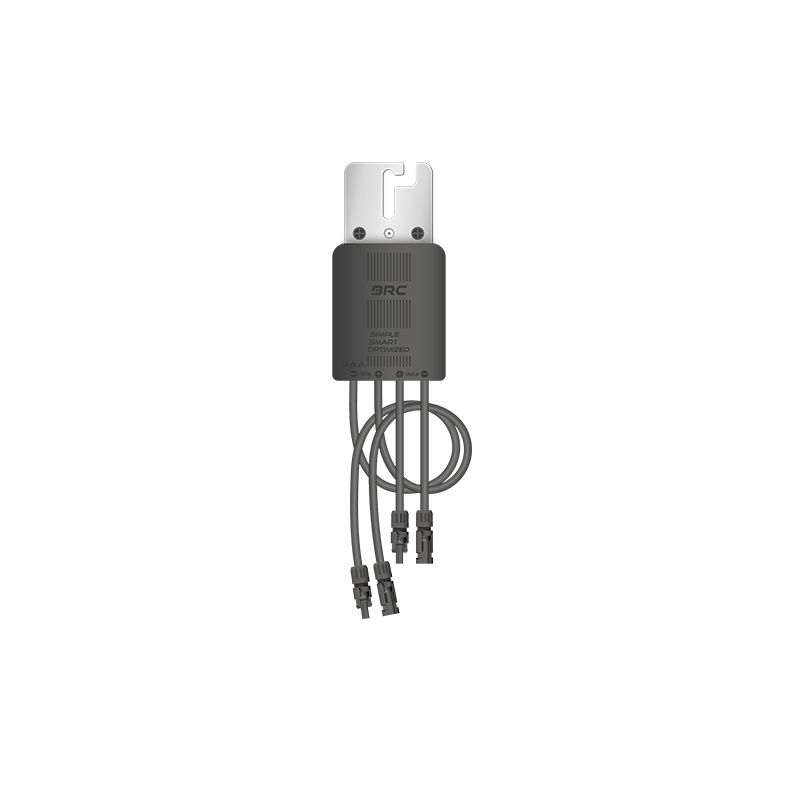

With the Power Optimiser M600-M from BRC, you can quickly and easily resolve critical shading situations and different module orientations in the PV system. Installed on the affected modules, it is immediately ready for use. With a rated current of 16.0 amps, all common module power classes are compatible. And with the BRConnect Gateway, you can conveniently monitor the data on the BRC Power Manager app. The connection is made without additional components via Powerline and the regular DC cabling.

Product advantages:
? Universally applicable
? Immediately ready for use
? Power electronics only active when required
? Can also be used for partial applications
? Visualisation now also possible with the BRConnect gateway

Product features:
? Max. DC power: 600 Wp
? Max. Current rating: 16.0 A
? Max. Current Isc: 20.0 A
? Voltage range: 16 to 70 V
? Communication (optional): PLC Powerline
? Connector plug: MC4
? Connection cable length: 0.15 m (input), 1.2 m (output)
? Protection class: IP 68
? Dimensions: 145 x 78 x 22 mm (H x W x D)
? Warranty: 25 years
