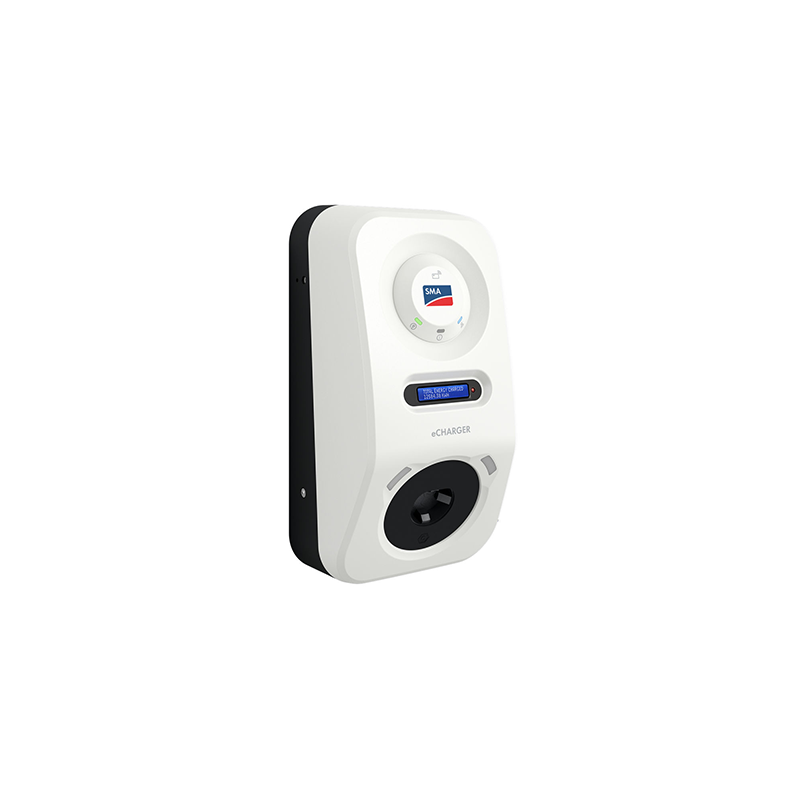

eCharger EVC22-3AC-20, 1.38 – 22 kW

The SMA eCHARGER EVC22-3AC-20 is a three-phase AC EV Charger for electric vehicles, optimized for the Sunny Home Manager 2.0. It offers an adjustable charging power from 1.38 to 22 kW, type 2 charging socket with shutter and power failure protection. Additional functions include boost function, automatic phase switching, residual current protection, LED status display, RFID card reader and illumination of the charging area. The charger has an LCD display, 2 Ethernet ports, WLAN, multiple digital inputs and outputs, RS485 port and is prepared for OCPP 1.6. An integrated web server enables easy monitoring and control via SMA Energy App, while SMA Smart Connected ensures easy integration into your smart home. Finally, it is worth mentioning that this state-of-the-art charging station is manufactured in Germany, which underlines its quality and reliability.

Product advantages:

• State-of-the-art charging station manufactured in Germany

• Safe due to power failure protection

• Integrated DC fault monitoring

• 5-year warranty

Product features:

• Max. charging power per charge point: 22 kW

• Access control: RFID (2 cards included in delivery)

• AC grid voltage: 230 / 400 V

• Feed-in phases: 1- or 3-phase

• Phase switching: yes

• MID meter: no

• Calibrated: no

• Compliant with EnWG § 14a: yes (with control box / RSE according to VNB specifications, via digital inputs)

• Interfaces: Wifi, Ethernet, RS485, 6 x DI

• Protection class: IP54

• Dimensions: 190 x 270 x 495 mm

• Weight without packaging: 5.0 kg
