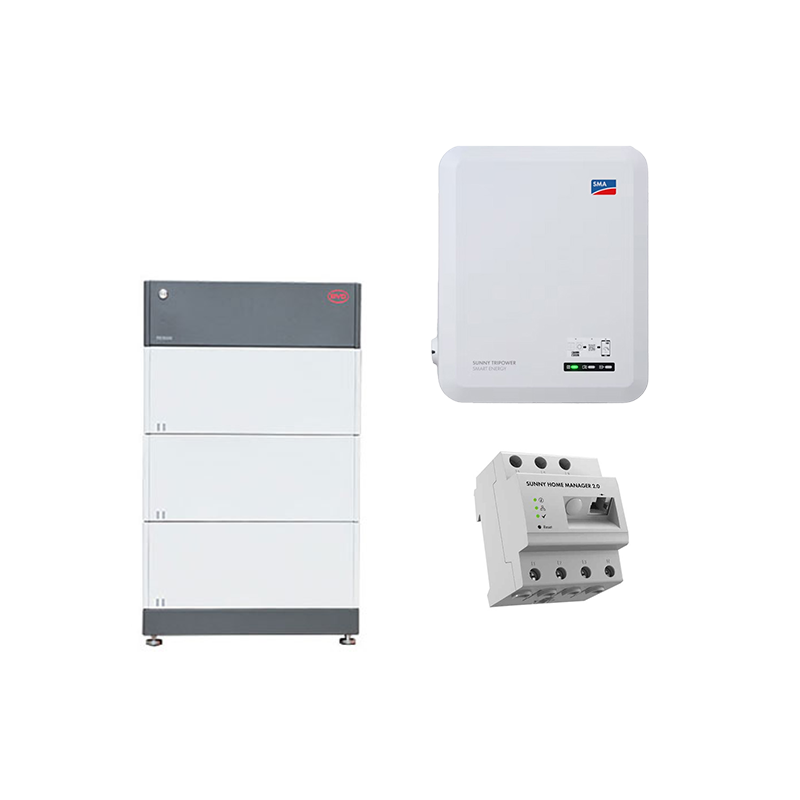

B-Box HVS 7.7 + STP 5.0 Smart Energy

This high-class storage package combines SMA's 3-phase Smart Energy Hybrid inverters with BYD's HVS high-voltage storage systems. Available in four performance classes, these hybrids boast a full range of features, from surge protection to interfaces. Experience has shown that visualization in the SMA Sunny Portal is of the highest standard. The HVS series storage systems are also an integral part of the PV storage world and have proven themselves in countless systems over many years. Now with even faster installation thanks to the new BCU 2.0.

Product advantages:

? Well-known and proven manufacturers

? Integrated AC + DC type 2 surge protection

? Storage expandable indefinitely

Product features System:

? AC power: 5.0 kW

? Number of MPPT: 2

? Input voltage: 210 - 800 V DC

? AC connection: 3-phase

? AC/DC surge protection: type 2 each

? Topology: transformerless

? Communication: WLAN, Ethernet, CAN

? Interfaces: 5 x DI (FRE), 1 x DO

? Protection class: IP65

? Cooling: passive

? Weight: 30.0 kg

? Dimensions: 500 x 598 x 173 mm (W x H x D)

Product features Storage:

? Battery capacity (usable): 7.68 kWh

? Storage type: high voltage

? Nominal voltage: 307.2 V

? Time window extension: unlimited

? Number of storage modules in one unit: 2 to 5

? Number of units in parallel: up to 3

? Cell chemistry: LFP

? Communication: CAN, RS485

? COM connections: RJ45

? BAT connections: MC4

? Cooling: passive

? Protection class: IP55

? Dimensions: 762 x 585 x 298 mm (H x W x D)

? Weight: 129.0 kg

Conclusion:

BYD and SMA - a combination you can't go wrong with. Proven and reliable.

Scope of delivery:

? 1 x SMA Sunny Tripower SE 5.0 (item 0150367)

? 1 x SMA Home Manager 2.0 (item 0126650)

? 1 x BYD B-Box Premium HV BCU + Base 2.0 (item 0159471)

? 3 x BYD HVS storage module (item 0131385)
