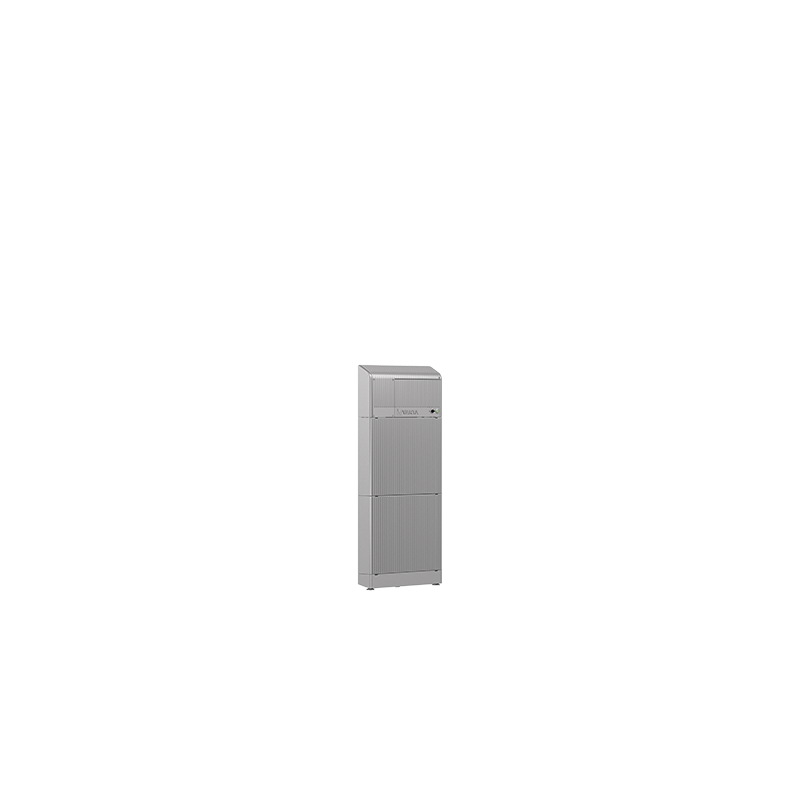

VARTA.wall 10
VARTA.wall 10
Description
Country approvals must be checked.
With the WALL high-voltage storage system, VARTA is launching its first pure DC storage system on the market. The NCA (nickel-cobalt-aluminum) cells enable a high energy density combined with a high safety standard in accordance with VDE-AR-E 2510-50. 10 to 20 kWh of usable capacity is possible with 2 to 4 battery modules.
Product advantages:
? Attractive and space-saving design
? Certified safety in accordance with VDE-AR-E 2510-50
Product features:
? Battery capacity (usable): 10.0 kWh
? Storage type: High-voltage
? Nominal voltage: 201.6 V
? Extension time frame: 18 months
? System structure: 2 to 4 battery modules + BMS
? Cell chemistry: NCA
? Communication: CAN, RS485, Ethernet, WLAN
? Cooling: passive
? Protection class: IP55
? Dimensions: 1306 x 605 x 100 mm (H x W x D)
? Weight: BMS approx. 15.0 kg, storage 2 x 37.0 kg
? Warranty: 10 years
Compatible with:
? SMA STP Smart Energy
? Kostal Plenticore
Scope of delivery:
? 1 x Varta.wall BMS (item 0154888)
? 2 x Varta.wall storage module (item 0154887)
Wichtige technische Daten
| Dangerous goods transportation category | 2 |
|---|---|
| Dangerous goods description | LITHIUM ION BATTERIES |
| Tunnel restriction code | (E) |
| Classification code | M4 |
| Dangerous goods class | 9 |
| Dangerous goods Weight (net) (kg) | 74.000 |
| Dangerous goods packaging type | 4G |
| UN No. | 3480 |
