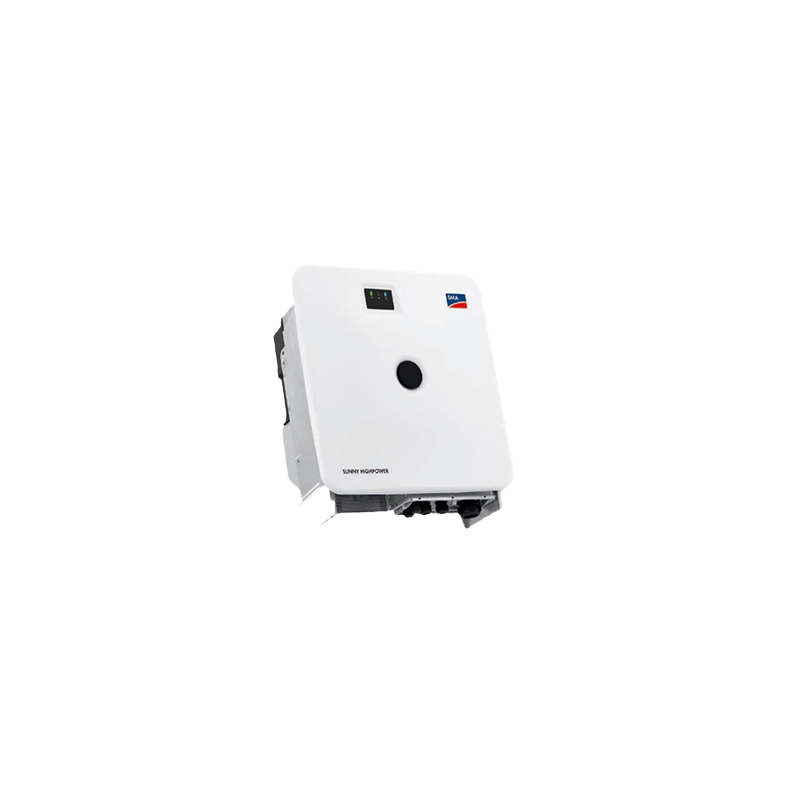

The Sunny Highpower PEAK3 series from SMA is the central component for large PV power plants. System voltages up to 1500 V DC and the use of customer-specific generator connection boxes enable efficient project calculation. Thanks to high-quality system components, there is no derating up to a temperature of 50C.
Product advantages:
? Up to 200% DC/AC ratio possible
? AC+DC type 2 overvoltage protection
Product features:
? AC rated power: 100.0 kW
? Feed-in phases: 3
? AC mains voltage: 400 V
? Number of MPPT: 1
? Max. DC input voltage: 1100 V
? DC overvoltage protection: Type 2
? AC overvoltage protection: Type 2
? DC connector: Bolt terminal for cable lug up to 300 mm?
? Interfaces: 2 x Ethernet
? Protection class: IP65
? Cooling: active
? Dimensions: 830 x 770 x 462 mm (H x W x D)
? Weight: 99.0 kg
