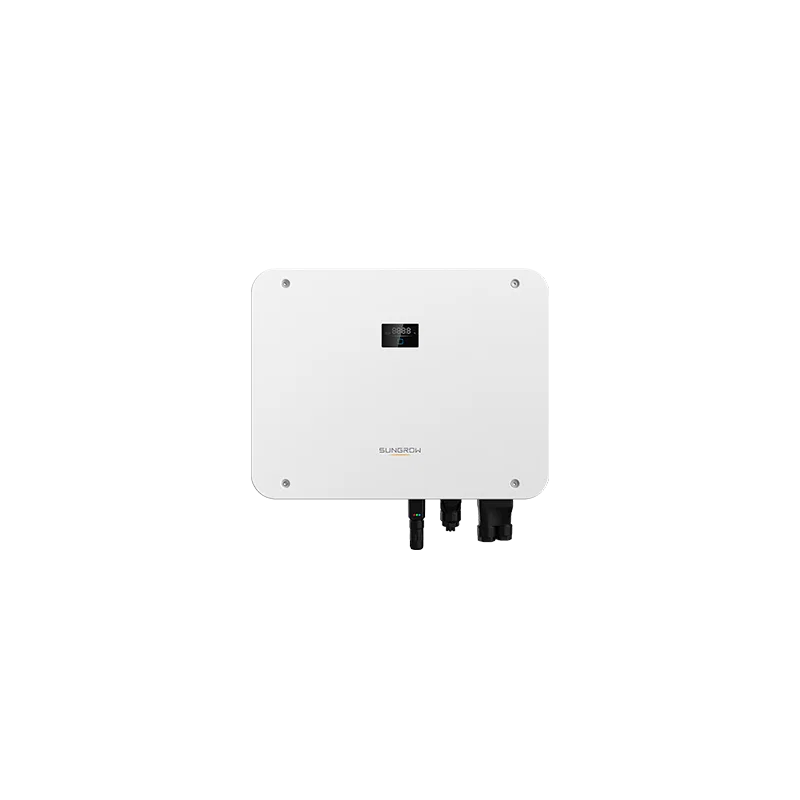

Sungrow SH6T

 Product information "SH6T"
Due to the high charging currents when combining the SBH storage system with the SHxxT hybrid inverters, a flexible PV cable with 10 mm² cross-section and a voltage resistance of up to 1000 V is required.
Sungrow's SH-T Hybrid series is being expanded to include power classes from 5 to 12 kW. Two MPP trackers with high input currents and high charging currents to the storage system ensure optimal power delivery. Thanks to the extra-powerful backup bypass with up to 63 amps, the entire house can be connected to the system's emergency power supply. The proven, comprehensive communication and control interfaces for the FRE (Frequency Recirculation) and heat pump are, of course, included.

Product advantages:
• Suitable for high-performance modules
• Integrated AC + DC surge protection Type 2
• Backup connection up to 63 A possible
• Backup switching time <10 ms

Product specifications:
• AC rated power: 6.0 kW
• Feed-in phases: 3
• AC mains voltage: 400 V
• Number of MPPTs: 2
• DC input voltage: 1000 V
• DC input current: 16 A per MPPT (5-8 modules) / 32 + 16 A (10+12 modules)
• DC surge protection: Type 2
• AC surge protection: Type 2
• AFCI arc fault detection: Yes
• DC connector type: MC4 compatible
• Number of memory connections: 1
• Max. charging current: 50 A
• Interfaces: Wi-Fi, LAN, RS485, CAN, 4 x DI (FRE), 2 x DO, DRMO
• Protection class: IP65
• Cooling: passive
• Dimensions: 620 x 480 x 195 mm
• Weight: 32.0 kg
• Warranty: 10 years
• Energy meter and 3 x CT included
