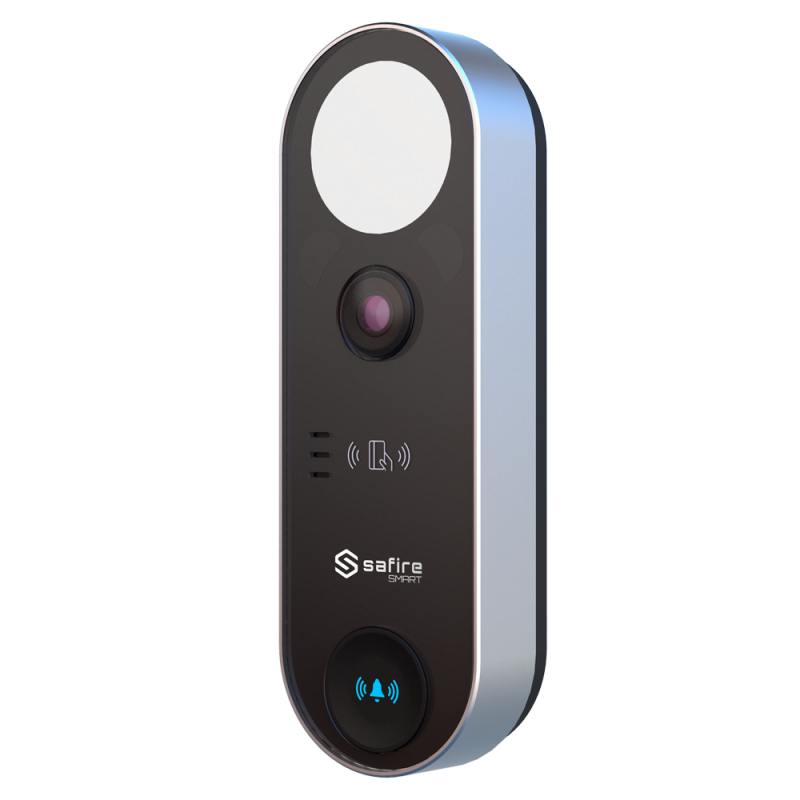

SF-VI131-IPW-MF

The video door entry panel is the element that is placed on the outside of the premises, therefore it is also called an outdoor unit, and allows to make calls from visitors to the building staff.

These devices also have the ability to open the door through their relay outputs. This model has 1 relay output to manage up to 1 gate. In addition, it has integrated access control, allowing identification through cards or key fobs with MF technology of 13.56 MHz.

IP equipment communicates and is powered by Ethernet cables and PoE switches, reducing the number of cables required for operation.

Its physical keypad makes it easy to call the users.

Its exterior grade IP65 allows it to be installed outdoors.

Advanced configurable functions: wiegand connection (allows the addition of third-party access readers for user identification) and ONVIF protocol (allows the camera to be integrated into CCTV video recorders).

With the Safire Smart mobile app, the end-user can receive calls, open the door or view the live camera feed from the panel, all from any location.

• Safire Smart
• IP video door entry system with 2 Mpx camera for 1 apartment
• Wide angle lens
• Built-in speaker and microphone
• Night vision with LED illumination
• TCP/IP and WiFi connection
• PoE IEEE802.3af
• MF Card Reader
• Remote door opening
• 1 door relay output
• Port Wiegand
• MicroSD slot
• Complete configuration via web browser
• Remote monitoring via Safire Smart mobile app or indoor monitor software
• Push notifications through Safire Smart app
• ONVIF protocol for integration with video surveillance recorders
• Call status LED
• Surface mounting
• Suitable for exterior IP65
